Equivalent & Substitute Parts for VCC 7715-10PK Incandescent Lamp

Part Overview

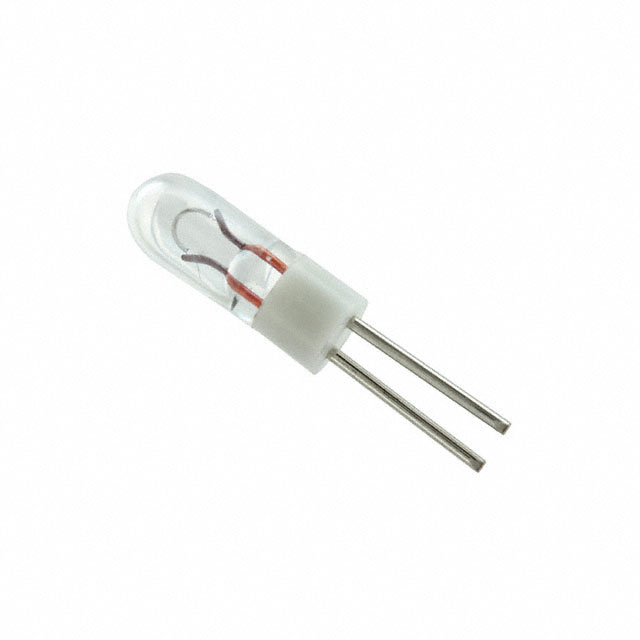

The VCC 7715-10PK is an incandescent lamp designed for applications requiring a 5V clear round indicator light with bi-pin radial leads. This component features a domed top lens configuration and RT-1 form factor. The part is discontinued at DiGi Electronics, necessitating identification of active equivalent components to maintain supply chain continuity for existing designs and production requirements.

Substiute Parts

7715-10PK

Visual Communications Company - VCCIn Stock: 7507715-10PK Datasheet

Current PartRFQ

7715

JKL Components Corp.In Stock: 9787715 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the VCC 7715-10PK is determined by strict equivalence across the following critical parameters:

• Voltage Rating: 5V operation is mandatory for circuit compatibility
• Lens Configuration: Round with domed top geometry ensures mechanical fit in existing lamp holders
• Lens Size: RT-1 form factor maintains dimensional compatibility
• Lead Style: Radial bi-pin .050 configuration is required for PCB mounting and electrical connection
• Light Output: MSCP rating of 0.15 establishes luminous intensity requirements
• Compliance: ROHS3 compliance and REACH unaffected status maintain regulatory alignment

The JKL Components Corp. part number 7715 meets all substitution criteria. This part maintains identical electrical and mechanical specifications while offering active product status and current inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The JKL Components Corp. 7715 incandescent lamp is a direct functional equivalent to the VCC 7715-10PK. Selection of this substitute is supported by:

• Regulatory Compliance: Both parts maintain ROHS3 compliance and REACH unaffected status, ensuring continued adherence to environmental and safety standards
• Product Status: The JKL Components part maintains active product status with confirmed inventory availability (869 pcs), eliminating supply chain risk associated with the discontinued VCC component
• Electrical Equivalence: Identical voltage rating, light output (MSCP), and lead configuration ensure direct circuit compatibility without design modification
• Mechanical Compatibility: Matching lens style, size, and lead geometry guarantee fit within existing mechanical assemblies and PCB layouts
• Packaging: JKL Components supplies the part in box packaging, suitable for production and assembly operations

Frequently Asked Questions (FAQ)

Q: Can the JKL Components 7715 be used as a direct replacement for the VCC 7715-10PK?

A: Yes. The JKL Components 7715 meets all electrical and mechanical specifications of the VCC 7715-10PK, including voltage rating, lens configuration, lead style, and light output. No circuit or mechanical modifications are required.

Q: What is the significance of the RT-1 lens size designation?

A: RT-1 specifies the physical form factor and optical geometry of the lamp lens. This designation ensures mechanical compatibility with lamp holders and optical assemblies designed for this specific size. Both the original and substitute parts use identical RT-1 specifications.

Q: Are there compliance differences between the two parts?

A: No. Both parts maintain ROHS3 compliance, REACH unaffected status, and identical MSL ratings. Regulatory and environmental requirements are equivalent.

Q: What does the .050 bi-pin specification indicate?

A: The .050 measurement refers to the diameter of the bi-pin leads in inches. This specification determines PCB hole sizing and electrical connection reliability. Both parts use identical .050 bi-pin lead geometry.

Q: Why is the VCC 7715-10PK discontinued?

A: The VCC 7715-10PK is listed as discontinued at DiGi Electronics. The JKL Components 7715 provides active product availability and current inventory to support ongoing production requirements.

Q: Does packaging differ between the original and substitute part?

A: The VCC 7715-10PK is supplied in a 10-pack configuration. The JKL Components 7715 is supplied in box packaging. Quantity requirements should be evaluated based on production needs and inventory management practices.

Q: Is the MSCP rating of 0.15 critical for application compatibility?

A: Yes. MSCP (Mean Spherical Candle Power) specifies the luminous intensity of the lamp. The matching 0.15 MSCP rating between both parts ensures equivalent light output for indicator and illumination applications.
