TE Connectivity 770970-1 Rectangular Connector Header Equivalent & Substitute Parts

Part Overview

The TE Connectivity 770970-1 is a right-angle rectangular connector header from the Mini-Universal MATE-N-LOK series, designed for through-hole board-to-cable/wire applications. This 8-position, 2-row shrouded header features solder termination and locking ramp fastening, operating across -20°C to 85°C with a 600VAC voltage rating.

The 770970-1 carries a Last Time Buy product status, indicating discontinued manufacturing. Identification of equivalent substitute parts is necessary to maintain design continuity and ensure component availability for ongoing production and repair applications.

Substiute Parts

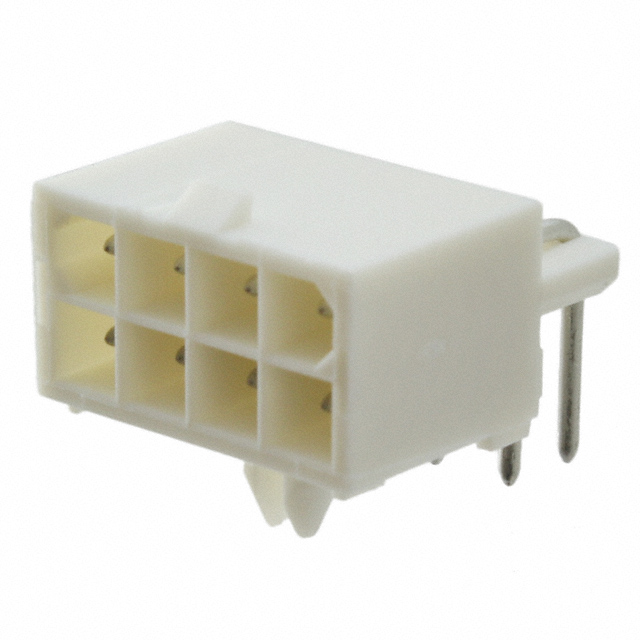

770970-1

TE Connectivity AMP ConnectorsIn Stock: 143082770970-1 Datasheet

Current PartRFQ

1-770970-0

TE Connectivity AMP ConnectorsIn Stock: 23321-770970-0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for rectangular connector headers is determined by strict equivalence across electrical and mechanical parameters. The following criteria establish functional interchangeability:

Critical Matching Parameters:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions and rows (8 positions, 2 rows)
• Pitch and row spacing (0.163" / 4.14mm)
• Mounting configuration (Through Hole, Right Angle)
• Shrouding design (Shrouded - 4 Wall)
• Termination method (Solder)
• Fastening mechanism (Locking Ramp)
• Voltage and temperature ratings (600VAC, -20°C ~ 85°C)
• Flammability compliance (UL94 V-0)
• Series designation (Mini-Universal MATE-N-LOK)

The substitute part 1-770970-0 maintains identical specifications across all critical parameters, with the exception of contact finish composition and product status. This part is functionally equivalent for board-to-cable/wire applications requiring 8-position right-angle headers with 4.14mm pitch spacing.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 1-770970-0 provides functional equivalence to the 770970-1 across all critical electrical and mechanical parameters required for board-to-cable/wire connector applications. Both parts maintain identical pitch spacing, row configuration, mounting orientation, and environmental ratings.

Product Status Consideration: The 770970-1 carries Last Time Buy status, indicating end-of-life manufacturing. The 1-770970-0 maintains Active product status with current inventory availability (2,300 pieces), establishing it as the appropriate long-term component selection for ongoing production requirements.

Compliance Differentiation: The 1-770970-0 achieves ROHS3 compliance, whereas the 770970-1 is RoHS non-compliant. For applications subject to RoHS regulatory requirements, the 1-770970-0 is the mandated selection. For legacy systems or applications without RoHS constraints, both parts remain electrically and mechanically interchangeable.

Contact Finish Variation: The 770970-1 specifies Tin-Lead contact finish, while the 1-770970-0 specifies Tin finish. Both maintain identical finish thickness (150.0µin / 3.81µm) and contact material (Brass). This variation reflects manufacturing process updates and does not affect electrical performance or mechanical compatibility in standard applications.

Frequently Asked Questions (FAQ)

Q: Are the 770970-1 and 1-770970-0 mechanically interchangeable in existing designs?

A: Yes. Both parts maintain identical pitch spacing (0.163" / 4.14mm), row configuration (2 rows, 8 positions), mounting type (through-hole right angle), and shrouding design (4-wall shrouded). PCB footprints and mating connector interfaces are identical.

Q: What is the primary reason to transition from 770970-1 to 1-770970-0?

A: The 770970-1 is designated Last Time Buy, indicating discontinued manufacturing. The 1-770970-0 maintains Active status with current production and inventory availability, ensuring component supply continuity.

Q: Does the contact finish change from Tin-Lead to Tin affect electrical performance?

A: No. Both finishes maintain identical thickness (150.0µin / 3.81µm) and are applied to brass contact material. The finish change reflects manufacturing process evolution and does not alter electrical conductivity, voltage rating (600VAC), or current-carrying capacity.

Q: Is the 1-770970-0 suitable for applications requiring RoHS compliance?

A: Yes. The 1-770970-0 is ROHS3 compliant. The 770970-1 is RoHS non-compliant. For applications subject to RoHS regulatory requirements, the 1-770970-0 is the required selection.

Q: Are there any temperature or voltage rating differences between these parts?

A: No. Both parts operate across -20°C to 85°C and maintain a 600VAC voltage rating. Operating temperature range and voltage specifications are identical.

Q: What is the current inventory status for each part?

A: The 770970-1 has 143,049 pieces in stock (Last Time Buy status). The 1-770970-0 has 2,300 pieces in stock (Active status). For new designs and ongoing production, the 1-770970-0 is recommended due to active manufacturing support.

Q: Can these parts be used interchangeably in board-to-cable/wire applications?

A: Yes. Both parts are designed for identical board-to-cable/wire connection styles with solder termination and locking ramp fastening. Mating connector compatibility is maintained across both part numbers.

Q: Are there any differences in the shrouding or fastening mechanisms?

A: No. Both parts feature identical 4-wall shrouding and locking ramp fastening type. Board lock features are present on both parts.
