TE Connectivity 770875-2 Rectangular Connector Header Equivalent & Substitute Parts

Part Overview

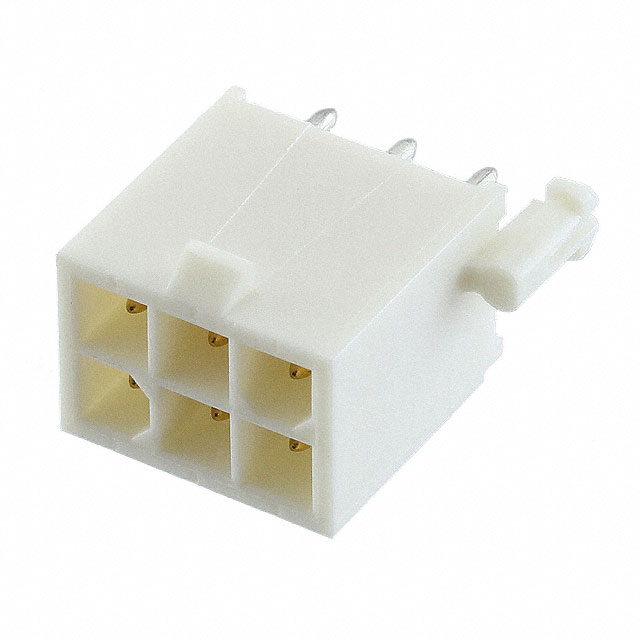

The TE Connectivity 770875-2 is a shrouded vertical connector header with 6 positions, 4.14mm pitch, and through-hole solder termination. This component belongs to the Mini-Universal MATE-N-LOK series and is designed for board-to-cable/wire applications in general-purpose electronic assemblies.

The 770875-2 carries a Last Time Buy product status, indicating discontinued manufacturing. Identification of equivalent substitute parts is necessary to support ongoing production requirements, field repairs, and design continuity for applications currently utilizing this connector header.

Substiute Parts

770875-2

TE Connectivity AMP ConnectorsIn Stock: 2690770875-2 Datasheet

Current PartRFQ

1-770875-1

TE Connectivity AMP ConnectorsIn Stock: 34371-770875-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 770875-2 is determined by strict equivalence across the following critical parameters:

Mechanical Compatibility Parameters:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (6)
• Number of rows (2)
• Mating pitch (0.163" / 4.14mm)
• Row spacing (0.163" / 4.14mm)
• Mounting type (Through Hole)
• Shrouding configuration (Shrouded - 4 Wall)
• Fastening type (Locking Ramp)
• Insulation height (0.531" / 13.50mm)

Electrical Compatibility Parameters:

• Voltage rating (600VAC)
• Operating temperature range (-20°C ~ 105°C)
• Contact material (Brass)
• Insulation material (Polyamide/Nylon)
• Flammability rating (UL94 V-0)

Termination Parameters:

• Solder termination method
• Contact post length (0.175" / 4.45mm)
• Contact post finish thickness (150.0µin / 3.81µm)

The substitute part 1-770875-1 maintains full equivalence across all mechanical, electrical, and termination parameters. Differences exist only in product status and post-contact finish composition, which do not affect functional interchangeability in the specified application envelope.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 1-770875-1 is the direct substitute for the 770875-2 connector header. Both components share identical mechanical, electrical, and termination specifications within the Mini-Universal MATE-N-LOK series.

Product Status Consideration: The 770875-2 carries Last Time Buy status, indicating end-of-life manufacturing. The 1-770875-1 maintains Active product status with higher current inventory availability (3328 pieces versus 2590 pieces), ensuring supply continuity for new production and field service applications.

Compliance Advantage: The 1-770875-1 achieves RoHS Compliance, whereas the 770875-2 is RoHS non-compliant. This distinction becomes significant for applications subject to RoHS regulatory requirements or customer specifications mandating RoHS-compliant components.

Contact Finish Specification: The primary technical difference is the post-contact finish composition. The 770875-2 specifies Tin-Lead finish, while the 1-770875-1 specifies Tin finish. Both maintain identical finish thickness (150.0µin / 3.81µm) and are functionally equivalent for solder termination applications. Tin finish in the 1-770875-1 reflects modern lead-free manufacturing practices aligned with RoHS requirements.

Functional Interchangeability: The 1-770875-1 is a direct functional replacement for the 770875-2 in all board-to-cable/wire applications utilizing the Mini-Universal MATE-N-LOK series. No design modifications, PCB layout changes, or mating connector adjustments are required for substitution.

Frequently Asked Questions (FAQ)

Q: Can the 1-770875-1 be used as a direct replacement for the 770875-2 in existing designs?

A: Yes. The 1-770875-1 is mechanically and electrically identical to the 770875-2. All critical parameters including pitch, row spacing, insulation height, shrouding configuration, and electrical ratings are equivalent. No design changes are required.

Q: What is the difference between the Tin-Lead finish on the 770875-2 and the Tin finish on the 1-770875-1?

A: Both finishes provide equivalent solder wettability and joint reliability at the specified finish thickness of 150.0µin (3.81µm). The Tin finish on the 1-770875-1 reflects compliance with lead-free manufacturing standards and RoHS regulations. Both are suitable for wave soldering and reflow processes.

Q: Why does the 770875-2 have Last Time Buy status?

A: Last Time Buy status indicates the manufacturer has discontinued production of this part number. The 1-770875-1 is the active replacement part number within the same series and maintains full production availability.

Q: Is the 1-770875-1 RoHS compliant?

A: Yes. The 1-770875-1 is RoHS Compliant. The 770875-2 is RoHS non-compliant. For applications requiring RoHS compliance, the 1-770875-1 is the appropriate selection.

Q: Are the mating connectors for the 770875-2 compatible with the 1-770875-1?

A: Yes. Both header connectors belong to the Mini-Universal MATE-N-LOK series and share identical mating pitch (0.163" / 4.14mm), row spacing, and shrouding configuration. Existing mating connectors designed for the 770875-2 are fully compatible with the 1-770875-1.

Q: What is the current inventory status for each part?

A: The 770875-2 has 2590 pieces in stock. The 1-770875-1 has 3328 pieces in stock. The 1-770875-1 offers higher availability for new production orders.

Q: Can these connectors be used interchangeably in the same assembly?

A: Yes. The 770875-2 and 1-770875-1 are functionally interchangeable. Both maintain identical operating temperature range (-20°C ~ 105°C), voltage rating (600VAC), and all mechanical specifications. Assembly processes, PCB footprints, and mating procedures remain unchanged.

Q: What applications are these connector headers suitable for?

A: Both the 770875-2 and 1-770875-1 are specified for general-purpose board-to-cable/wire applications. The 6-position, 2-row configuration with 4.14mm pitch supports low-to-medium signal and power distribution in industrial control, instrumentation, and general electronic equipment.
