TE Connectivity 770873-2 Rectangular Connector Header Equivalent & Substitute Parts

Part Overview

The TE Connectivity 770873-2 is a shrouded vertical rectangular connector header from the Mini-Universal MATE-N-LOK series. This through-hole mounted component features three positions with 0.163" (4.14mm) pitch spacing and is designed for board-to-cable/wire applications. The connector employs male pin contacts with gold-plated mating surfaces and tin-lead plated posts for solder termination.

The 770873-2 maintains active product status with 730 units currently in stock. Substitute parts are identified to address inventory availability, compliance requirements, or specific application needs while maintaining electrical and mechanical compatibility.

Substiute Parts

770873-2

TE Connectivity AMP ConnectorsIn Stock: 768770873-2 Datasheet

Current PartRFQ

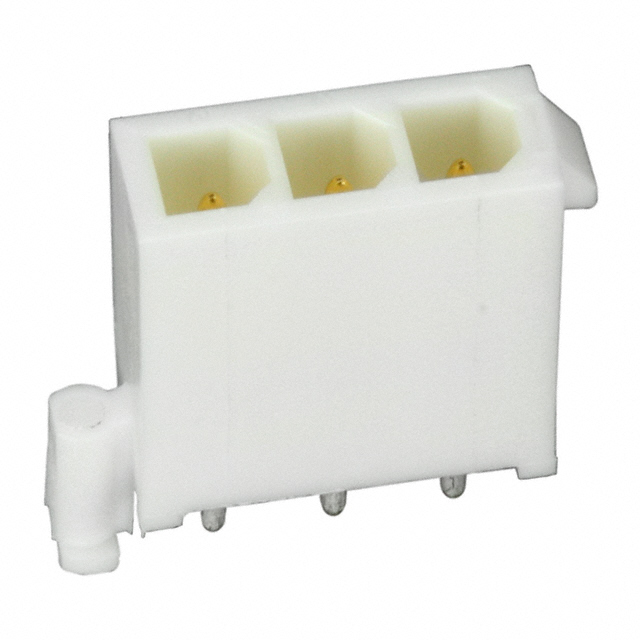

1-770873-1

TE Connectivity AMP ConnectorsIn Stock: 34401-770873-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 770873-2 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Voltage Rating: 600VAC
• Operating Temperature Range: -20°C ~ 105°C
• Contact Type: Male Pin
• Contact Material: Brass

Mechanical Compatibility Parameters:

• Number of Positions: 3
• Pitch - Mating: 0.163" (4.14mm)
• Mounting Type: Through Hole
• Shrouding: Shrouded - 4 Wall
• Insulation Material: Polyamide (PA), Nylon
• Insulation Height: 0.531" (13.50mm)
• Contact Shape: Circular
• Fastening Type: Locking Ramp
• Features: Board Lock

Termination Parameters:

• Termination Method: Solder
• Contact Length - Post: 0.175" (4.45mm)
• Contact Finish Thickness - Post: 150.0µin (3.81µm)

The substitute part 1-770873-1 maintains full equivalence across all critical electrical and mechanical parameters. Variations in post contact finish material (tin versus tin-lead) and regulatory compliance status do not affect functional interchangeability within the specified operating parameters.

Parameter Comparison

Engineering Selection Recommendations

Both the 770873-2 and 1-770873-1 maintain active product status and are manufactured by TE Connectivity AMP Connectors within the Mini-Universal MATE-N-LOK series. The parts are electrically and mechanically equivalent across all critical operating parameters.

Selection Criteria Based on Compliance and Certification:

The 770873-2 carries a "Not applicable" RoHS status, while the 1-770873-1 is ROHS3 Compliant. For applications requiring RoHS3 compliance, the 1-770873-1 is the appropriate selection. Both parts maintain identical UL94 V-0 flammability ratings and equivalent electrical performance across the 600VAC voltage rating and -20°C to 105°C operating temperature range.

The 1-770873-1 offers significantly higher inventory availability (3372 units versus 730 units), making it suitable for applications where supply chain continuity is a consideration. The post contact finish variation (tin versus tin-lead) does not affect functional interchangeability within the specified solder termination process and operating environment.

Frequently Asked Questions (FAQ)

Q: Are the 770873-2 and 1-770873-1 electrically interchangeable?

A: Yes. Both connectors operate at 600VAC with identical operating temperature ranges (-20°C ~ 105°C), contact materials (brass), and contact configurations (3-position male pin headers with 0.163" pitch). Electrical performance is equivalent.

Q: What is the difference between tin-lead and tin post finishes?

A: The 770873-2 features tin-lead plated posts, while the 1-770873-1 features tin-plated posts. Both finishes are compatible with standard solder termination processes and provide equivalent contact reliability within the specified operating parameters. The tin finish on the 1-770873-1 aligns with RoHS3 compliance requirements.

Q: Can I use the 1-770873-1 as a direct replacement for the 770873-2?

A: Yes. The 1-770873-1 is a direct substitute. All mechanical dimensions, contact configurations, mounting specifications, and electrical ratings are identical. The parts are pin-compatible and functionally equivalent.

Q: Why does the 1-770873-1 have higher inventory availability?

A: The 1-770873-1 maintains 3372 units in stock compared to 730 units for the 770873-2. This reflects current supply chain positioning and demand patterns. Both parts remain active products.

Q: What is the significance of the RoHS3 compliance difference?

A: The 1-770873-1 is explicitly ROHS3 Compliant, while the 770873-2 carries "Not applicable" status. For applications subject to RoHS3 regulations or customer requirements, the 1-770873-1 is the appropriate selection. Both parts meet UL94 V-0 flammability standards.

Q: Are the shrouding and board lock features identical?

A: Yes. Both connectors feature identical 4-wall shrouding and board lock fastening mechanisms. Mechanical engagement and retention characteristics are equivalent.

Q: What is the pitch specification, and is it identical between both parts?

A: Both connectors maintain a mating pitch of 0.163" (4.14mm) with 3 positions in a single row. This specification is identical and ensures mechanical compatibility with corresponding receptacle connectors in the Mini-Universal MATE-N-LOK series.
