TE Connectivity 770601-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 770601-2 is a socket contact for rectangular connectors, designed for wire gauges 22-26 AWG with crimp termination and gold plating. This component is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing production support and design continuity. The CST-100 series socket contact serves as a critical interface component in rectangular connector assemblies, requiring direct functional equivalency for reliable system performance.

Substiute Parts

770601-2

TE Connectivity AMP ConnectorsIn Stock: 1029770601-2 Datasheet

Current PartRFQ

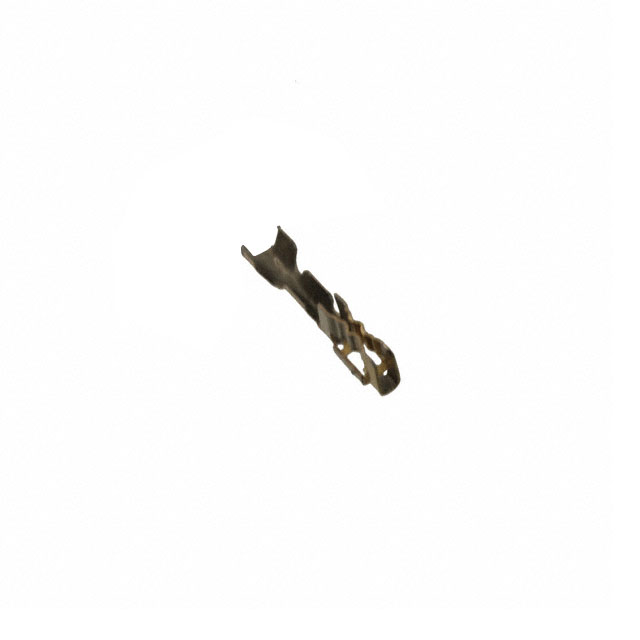

1375819-3

TE Connectivity AMP ConnectorsIn Stock: 784481375819-3 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 770601-2 is based on strict equivalency across the following critical parameters:

Mandatory Matching Parameters:

• Contact type: Socket
• Contact termination method: Crimp
• Wire gauge range: 22-26 AWG
• Contact finish material: Gold
• Contact finish thickness: 30.0µin (0.76µm)
• Moisture sensitivity level: 1 (Unlimited)
• RoHS compliance status: Compliant

The substitute part 1375819-3 maintains identical electrical and mechanical specifications across all critical parameters. The primary distinction is the product status transition from obsolete to active, with the substitute belonging to the CST-100 II series evolution. Both components are manufactured by TE Connectivity AMP Connectors and share the same ECCN and HTSUS classifications.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity 1375819-3

The 1375819-3 is the direct functional equivalent for the obsolete 770601-2. Selection of this substitute is based on the following engineering criteria:

1. Electrical Equivalency: All contact specifications, wire gauge ratings, and termination methods are identical.

2. Mechanical Compatibility: Socket contact geometry and crimp interface specifications match the original part, ensuring compatibility with existing connector housings and assembly tooling.

3. Material and Finish Specifications: Gold plating thickness and base material composition are identical, maintaining electrical performance and corrosion resistance characteristics.

4. Compliance Status: The substitute maintains RoHS compliance and shares identical export classification codes (ECCN: EAR99, HTSUS: 8536.90.4000).

5. Product Availability: The substitute part is in active production status with substantial inventory availability (78,405 pieces), ensuring supply chain continuity.

6. Series Evolution: The transition from CST-100 to CST-100 II series represents a product line continuation by the manufacturer, with the substitute part representing the current production standard.

Frequently Asked Questions (FAQ)

Q: Can the 1375819-3 be used as a direct replacement for the 770601-2 in existing assemblies?

A: Yes. The 1375819-3 maintains identical electrical and mechanical specifications across all critical parameters including wire gauge, contact termination, finish material, and finish thickness. The parts are functionally equivalent for connector assembly applications.

Q: What is the significance of the series designation change from CST-100 to CST-100 II?

A: The series designation change indicates a product line evolution by TE Connectivity. The CST-100 II series represents the current production standard for this contact type. The substitute part maintains full compatibility with the original specifications while offering the benefits of active production status and improved supply availability.

Q: Are there any packaging differences between the main part and the substitute?

A: The main part 770601-2 has undefined packaging specifications in the available data. The substitute part 1375819-3 is supplied in Cut Tape (CT) packaging format, which is standard for high-volume connector contact distribution.

Q: Do both parts meet the same RoHS requirements?

A: Both parts are RoHS compliant. The main part carries ROHS3 certification, while the substitute carries RoHS certification. Both meet current regulatory requirements for restricted substance compliance.

Q: What is the Moisture Sensitivity Level (MSL) for these parts?

A: Both the 770601-2 and 1375819-3 carry an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or assembly processes.

Q: Is the substitute part suitable for new design implementations?

A: Yes. The 1375819-3 is in active production status and carries current RoHS compliance certifications, making it suitable for both replacement applications and new design implementations requiring 22-26 AWG socket contacts with crimp termination and gold plating.
