TE Connectivity 770565-2 WTB Terminal Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity 770565-2 is a WTB Tin-Lead terminal connector designed for through-board, locking applications in the Mini Amp-In series. This component accommodates wire gauges from 18-22 AWG and features phosphor bronze contact material with tin-lead finish. The part is classified as Active product status with ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector family, enabling component interchangeability in applications where specific finish requirements do not mandate the original part number.

Substiute Parts

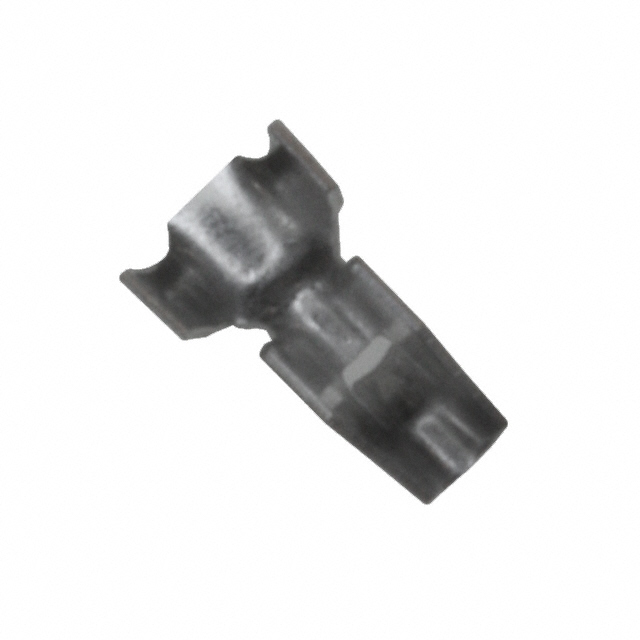

770565-2

TE Connectivity AMP ConnectorsIn Stock: 5172770565-2 Datasheet

Current PartRFQ

3-770565-1

TE Connectivity AMP ConnectorsIn Stock: 505043-770565-1 Datasheet

DirectRFQ

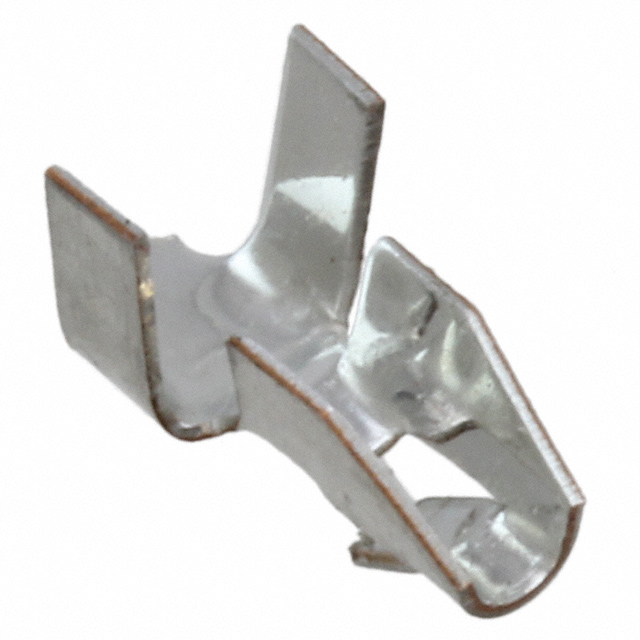

3-770565-2

TE Connectivity AMP ConnectorsIn Stock: 24653-770565-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 770565-2 terminal connector is determined by strict equivalence across the following critical parameters: wire gauge range (18-22 AWG), hole diameter tolerance (0.072" ~ 0.077"), insulation diameter range (0.060" ~ 0.110"), overall length (0.220"), terminal type (through board, locking), contact material (phosphor bronze), series designation (Mini Amp-In), and moisture sensitivity level (MSL 1). The substitute parts 3-770565-1 and 3-770565-2 maintain identical specifications across all mechanical and electrical parameters. The primary distinction between the main part and substitutes is the contact finish: the 770565-2 features tin-lead finish, while both substitute parts feature tin finish only. This finish variation does not alter the mechanical fit, electrical performance within the specified wire gauge range, or board-level compatibility. All parts share identical RoHS compliance status, packaging format, and environmental ratings.

Parameter Comparison

Engineering Selection Recommendations

All three parts—770565-2, 3-770565-1, and 3-770565-2—are classified as Active product status and maintain full compliance with RoHS regulations. The 770565-2 and 3-770565-1 both carry ROHS3 designation, while 3-770565-2 carries RoHS Compliant status. Selection between these parts should be based on contact finish requirements and inventory availability. The 770565-2 with tin-lead finish is appropriate for applications where tin-lead contact finish is specified. The 3-770565-1 and 3-770565-2 with tin finish are suitable for applications where tin finish meets electrical and environmental requirements. All parts share identical mechanical dimensions, wire gauge compatibility, and environmental ratings (MSL 1). Inventory levels are 5110 pieces for 770565-2, 50435 pieces for 3-770565-1, and 2400 pieces for 3-770565-2. Component selection should account for finish specification, compliance certification level, and supply chain availability.
