TE Connectivity AMP Connectors 770264-1 Equivalent & Substitute Parts

Part Overview

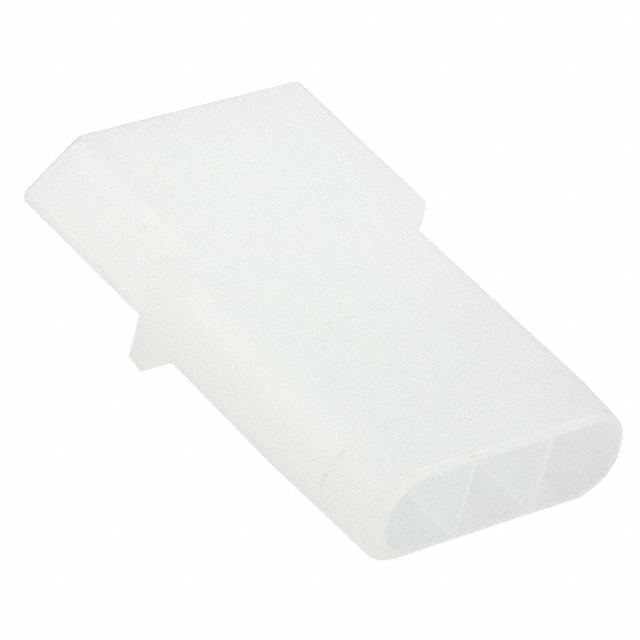

The TE Connectivity AMP Connectors 770264-1 is a 3-position rectangular connector receptacle housing designed for the Commercial .093" Pin and Socket series. This component functions as a receptacle housing for crimp-terminated contacts with a 0.198" (5.03mm) pitch configuration. The part is currently active in production status with 889 pieces available in new original inventory. Substitute parts are identified when equivalent electrical and mechanical parameters are required due to inventory constraints, supply chain considerations, or application-specific availability needs.

Substiute Parts

770264-1

TE Connectivity AMP ConnectorsIn Stock: 970770264-1 Datasheet

Current PartRFQ

770070-1

TE Connectivity AMP ConnectorsIn Stock: 6136770070-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 770264-1 are identified based on strict equivalence of the following critical parameters:

• Connector Type: Receptacle housing configuration
• Number of Positions: 3-position layout
• Pitch Specification: 0.198" (5.03mm) center-to-center spacing
• Series Compatibility: Commercial .093" Pin and Socket series
• Mounting Configuration: Free Hanging (In-Line) orientation
• Contact Termination Method: Crimp termination interface
• Fastening Mechanism: Locking Ramp engagement system
• Insulation Material: Polyamide (PA), Nylon composition
• Operating Temperature Range: -55°C ~ 105°C thermal specification
• RoHS Compliance: RoHS Compliant status
• Moisture Sensitivity Level: MSL 1 (Unlimited) classification

Parts meeting all these parameters are classified as direct parametric equivalents and may be substituted without modification to the connector interface or circuit board layout.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 770264-1 and 770070-1 are parametric equivalents meeting all critical electrical and mechanical specifications for the Commercial .093" Pin and Socket series. Both parts maintain active product status and carry RoHS Compliant certification with MSL 1 (Unlimited) moisture sensitivity classification.

Selection between these parts should be based on inventory availability and supply chain requirements. The 770070-1 substitute provides significantly higher stock availability at 6100 pieces compared to 889 pieces for the 770264-1 main part. Both parts operate across the identical temperature range of -55°C to 105°C and utilize the same polyamide nylon insulation material with crimp termination and locking ramp fastening mechanisms.

For applications requiring the 3-position, 0.198" pitch receptacle housing configuration within the Commercial .093" Pin and Socket series, either part number provides equivalent performance and interface compatibility.
