TE Connectivity 770108-1 Rectangular Connector Plug Housing - Equivalent & Substitute Parts

Part Overview

The TE Connectivity 770108-1 is a 9-position rectangular connector plug housing designed for the Commercial .093" Pin and Socket series. This connector features a 5.03mm pitch configuration with a 3-row layout and panel mount snap-in mounting capability. The housing accepts crimp-terminated contacts and operates across a temperature range of -55°C to 105°C.

The 770108-1 carries an obsolete product status. Identification of equivalent substitute parts is necessary to ensure continued availability for maintenance, repair, and new design implementations where this connector type is specified.

Substiute Parts

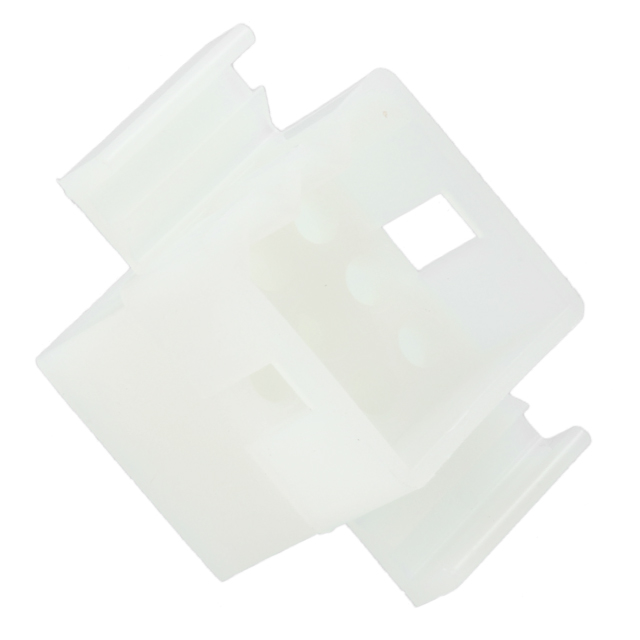

770108-1

TE Connectivity AMP ConnectorsIn Stock: 986770108-1 Datasheet

Current PartRFQ

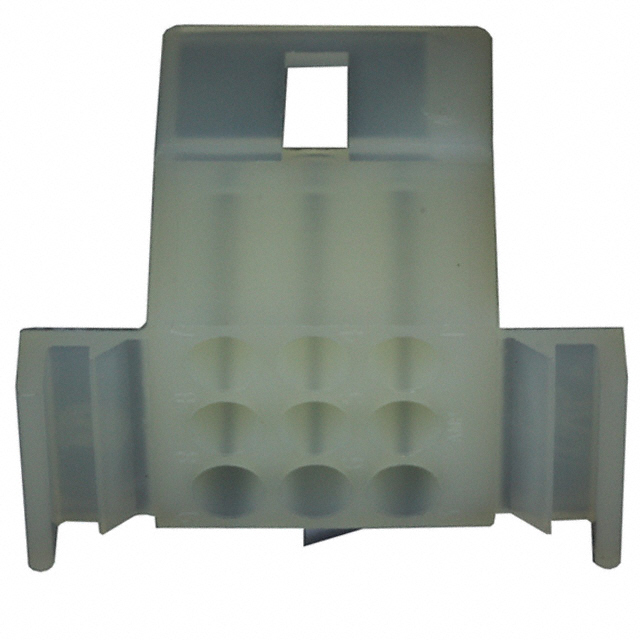

770095-1

TE Connectivity AMP ConnectorsIn Stock: 2365770095-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 770108-1 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in the following areas:

Electrical Parameters:

• Connector type (Plug)
• Number of positions (9)
• Pitch configuration (0.198" / 5.03mm)
• Row arrangement (3 rows with 0.198" / 5.03mm spacing)
• Contact termination method (Crimp)
• Fastening mechanism (Detent Lock)

Mechanical Parameters:

• Mounting configuration (Panel Mount, Snap-In)
• Housing color (Natural)
• Insulation material (Polyamide/Nylon)

Environmental & Compliance Parameters:

• Operating temperature range (-55°C to 105°C)
• RoHS compliance status
• Moisture sensitivity level (MSL 1)

The 770095-1 meets all these criteria and qualifies as a parametric equivalent substitute.

Parameter Comparison

Engineering Selection Recommendations

The 770095-1 is the direct parametric equivalent substitute for the obsolete 770108-1. Both parts are manufactured by TE Connectivity within the Commercial .093" Pin and Socket series and maintain identical electrical, mechanical, and environmental specifications.

Selection Basis:

The 770095-1 provides functional and physical interchangeability with the 770108-1 across all critical parameters. The substitute part carries active product status, ensuring ongoing availability and supply chain continuity. Both parts maintain RoHS compliance and identical moisture sensitivity ratings, supporting equivalent performance in regulated and standard applications.

The primary distinction between the two parts is product lifecycle status: the 770108-1 is obsolete while the 770095-1 remains in active production. For new designs, maintenance applications, and component replenishment, the 770095-1 is the appropriate selection.

Frequently Asked Questions (FAQ)

Q: Can the 770095-1 directly replace the 770108-1 in existing assemblies?

A: Yes. The 770095-1 is a parametric equivalent with identical connector type, position count, pitch, row configuration, mounting method, termination type, and fastening mechanism. No design modifications are required for direct substitution.

Q: Are there differences in contact compatibility between these parts?

A: No. Both the 770108-1 and 770095-1 accept the same crimp-terminated contacts. The housing specifications are identical, ensuring compatible contact insertion and retention.

Q: What is the significance of the product status difference?

A: The 770108-1 is classified as obsolete, indicating it is no longer in active production. The 770095-1 maintains active status, ensuring reliable supply availability. For applications requiring long-term component sourcing, the 770095-1 is the appropriate selection.

Q: Do these connectors have different packaging options?

A: The 770108-1 packaging specification is not defined in the available data. The 770095-1 is supplied in bulk packaging. Packaging differences do not affect functional or mechanical compatibility.

Q: Are both parts suitable for the same operating temperature applications?

A: Yes. Both parts operate across the identical temperature range of -55°C to 105°C and maintain equivalent environmental performance specifications.

Q: Do compliance certifications differ between these parts?

A: No. Both the 770108-1 and 770095-1 carry RoHS compliance status and identical moisture sensitivity level ratings (MSL 1 - Unlimited). Regulatory and environmental compliance requirements are equivalent.

Q: Can I use the 770095-1 in applications originally designed for the 770108-1?

A: Yes. The 770095-1 meets all electrical, mechanical, and environmental specifications of the 770108-1. Direct application compatibility is established across all parameter categories.
