TE Connectivity 770007-2 Equivalent & Substitute Parts

Part Overview

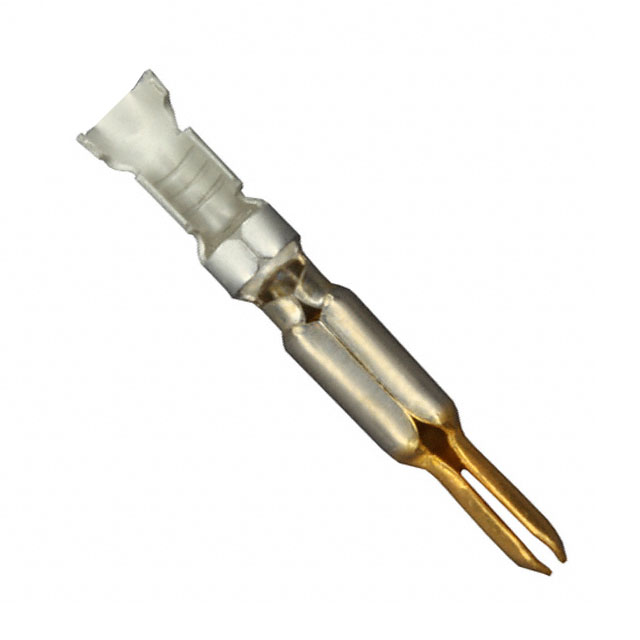

The TE Connectivity 770007-2 is a split pin contact connector designed for rectangular connector applications within the Universal MATE-N-LOK II series. This component is classified as a crimp-termination contact rated for 14-20 AWG wire gauges with gold plating finish. The part is currently listed as obsolete, necessitating identification of active equivalent components to maintain design continuity and procurement availability for applications utilizing this connector contact type.

Substiute Parts

770007-2

TE Connectivity AMP ConnectorsIn Stock: 1089770007-2 Datasheet

Current PartRFQ

1-770007-0

TE Connectivity AMP ConnectorsIn Stock: 608091-770007-0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 770007-2 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Manufacturer: TE Connectivity AMP Connectors
• Series: Universal MATE-N-LOK II
• Pin or Socket: Split Pin
• Contact Termination: Crimp
• Wire Gauge: 14-20 AWG
• Contact Finish: Gold
• Contact Finish Thickness: 30.0µin (0.76µm)
• Base Product Number: 770007
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 1-770007-0 maintains identical electrical and mechanical specifications to the main part 770007-2. The primary distinction is product status: 1-770007-0 is active and available in production quantities, whereas 770007-2 is obsolete. Both components share the same base product number (770007) and are functionally interchangeable within the Universal MATE-N-LOK II connector system.

Parameter Comparison

Engineering Selection Recommendations

The part 1-770007-0 is the direct equivalent substitute for 770007-2. Selection of 1-770007-0 is supported by the following engineering criteria:

Product Status: The substitute part 1-770007-0 maintains active production status, ensuring long-term availability and supply chain continuity. The original part 770007-2 is obsolete and subject to discontinuation.

Compliance Certification: Both parts maintain identical ROHS3 compliance status, satisfying regulatory requirements for restricted substance limitations. Moisture sensitivity level remains constant at MSL 1 (Unlimited), indicating no special storage or handling requirements.

Electrical and Mechanical Equivalence: All functional parameters—wire gauge rating, contact termination method, finish specification, and finish thickness—are identical between the main part and substitute. These parameters determine connector performance within the Universal MATE-N-LOK II system.

Packaging Consideration: The substitute part is supplied in Cut Tape (CT) packaging. Applications requiring alternative packaging formats should be evaluated against available inventory and procurement lead times.

Frequently Asked Questions (FAQ)

Q: Can 1-770007-0 be used as a direct replacement for 770007-2 in existing designs?

A: Yes. The parts are electrically and mechanically equivalent. Both are split pin contacts rated for 14-20 AWG wire gauges with identical gold plating specifications and crimp termination. They are interchangeable within Universal MATE-N-LOK II connector assemblies.

Q: What is the difference between 770007-2 and 1-770007-0?

A: The primary difference is product status. The 770007-2 is obsolete, while 1-770007-0 is active. The substitute part is supplied in Cut Tape (CT) packaging. All electrical and mechanical specifications are identical.

Q: Why is 770007-2 listed as obsolete?

A: Obsolescence is a manufacturer designation indicating the part is no longer in active production. The active equivalent 1-770007-0 should be used for new procurements and design updates.

Q: Are there any compatibility concerns when switching from 770007-2 to 1-770007-0?

A: No compatibility concerns exist. Both parts share the same base product number (770007) and series designation (Universal MATE-N-LOK II). They are designed for use in identical connector applications.

Q: What does the Cut Tape (CT) packaging format mean?

A: Cut Tape packaging supplies components on continuous carrier tape that has been cut to specific lengths. This format is standard for high-volume production and automated assembly processes.

Q: Are the RoHS and MSL ratings the same for both parts?

A: Yes. Both parts are ROHS3 compliant and carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions during storage or handling.

Q: Can I use 1-770007-0 in applications originally designed for 770007-2?

A: Yes. The substitute part meets all electrical and mechanical requirements of the original design. No design modifications are necessary.
