TE Connectivity AMP Connectors 767139-3 Equivalent & Substitute Parts

Part Overview

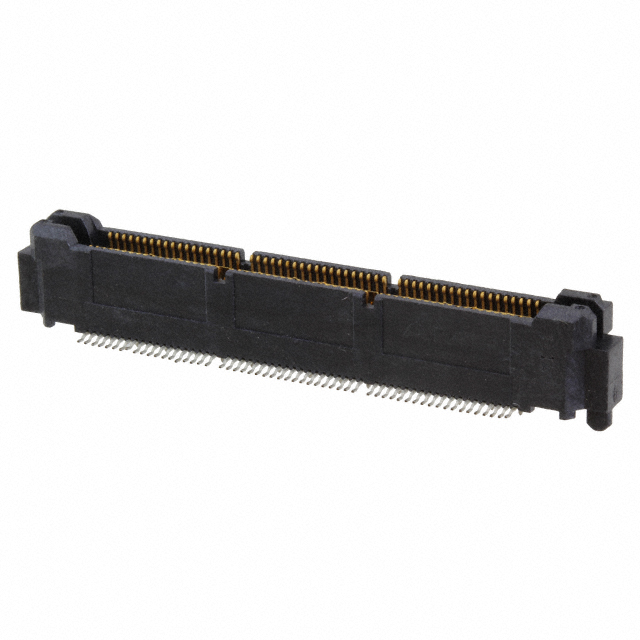

The TE Connectivity AMP Connectors 767139-3 is a 114-position rectangular connector plug with outer shroud contacts designed for surface mount applications. This MICTOR series connector features gold-plated contacts and is classified as an active product. The connector accommodates high-density interconnections with a 0.025" (0.64mm) pitch across two rows, making it suitable for applications requiring compact, reliable signal transmission and power distribution.

Identification of equivalent and substitute parts becomes necessary when addressing supply chain constraints, compliance requirements, or specific application certifications. This reference provides direct substitution options based on electrical and mechanical parameter compatibility.

Substiute Parts

767139-3

TE Connectivity AMP ConnectorsIn Stock: 1126767139-3 Datasheet

Current PartRFQ

5767139-3

TE Connectivity AMP ConnectorsIn Stock: 9725767139-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of rectangular connectors is determined by strict equivalence across electrical and mechanical parameters. The following criteria establish direct substitutability for the 767139-3:

Critical Matching Parameters:

• Connector type (Plug, Outer Shroud Contacts)
• Number of positions (114)
• Pitch specification (0.025" / 0.64mm)
• Number of rows (2)
• Mounting type (Surface Mount)
• Contact finish material (Gold)
• Contact finish thickness (30.0µin / 0.76µm)
• Height above board (0.343" / 8.70mm)
• Mated stacking heights (9mm, 18mm)
• Features (Board Guide, Ground Bus)
• Series designation (MICTOR)
• Moisture sensitivity level (MSL 1)

Parts meeting all these parameters are classified as direct substitutes and are electrically and mechanically interchangeable without design modification.

Parameter Comparison

Engineering Selection Recommendations

The 5767139-3 is a direct electrical and mechanical substitute for the 767139-3. Both parts are manufactured by TE Connectivity AMP Connectors and share identical specifications across all critical connector parameters including position count, pitch, mounting type, contact finish, and physical dimensions.

Compliance Considerations:

The primary distinction between these parts is regulatory compliance status. The 767139-3 is RoHS non-compliant, while the 5767139-3 is ROHS3 compliant. Applications subject to RoHS3 directives or customer specifications requiring RoHS compliance must use the 5767139-3. Applications without RoHS requirements may use either part based on availability and supply chain considerations.

REACH status differs between the parts: the 767139-3 is listed as REACH Affected, while the 5767139-3 shows Vendor Undefined status. Applications operating in REACH-regulated markets should evaluate the specific REACH substance declarations from TE Connectivity for the applicable part number.

Both parts maintain identical electrical performance, mechanical fit, and functional characteristics. Selection between these parts is determined by regulatory requirements and compliance mandates applicable to the end application.

Frequently Asked Questions (FAQ)

Q: Are the 767139-3 and 5767139-3 electrically interchangeable?

A: Yes. Both parts are 114-position MICTOR series plugs with identical electrical specifications, including contact finish (gold, 30.0µin thickness), pitch (0.025"), and mounting configuration. They perform identically in electrical applications.

Q: What is the primary difference between these two part numbers?

A: The primary difference is RoHS compliance status. The 767139-3 is RoHS non-compliant, while the 5767139-3 is ROHS3 compliant. All other electrical and mechanical parameters are identical.

Q: Can I use the 5767139-3 as a replacement for the 767139-3 in existing designs?

A: Yes, from an electrical and mechanical standpoint. The 5767139-3 is a direct substitute with identical connector specifications. However, design documentation and compliance certifications should be updated to reflect the part number change and updated RoHS status.

Q: Do these connectors have the same physical dimensions and mounting footprint?

A: Yes. Both parts have identical height above board (0.343" / 8.70mm), mated stacking heights (9mm, 18mm), and surface mount footprint. They are mechanically interchangeable without PCB redesign.

Q: Which part should I specify for new designs?

A: For new designs, specify the 5767139-3 if RoHS3 compliance is required by regulation, customer specification, or company policy. Both parts are active products with current inventory availability.

Q: Are there any differences in moisture sensitivity or handling requirements?

A: No. Both parts have identical Moisture Sensitivity Level (MSL) rating of 1 (Unlimited), indicating no special moisture handling or baking requirements during storage or assembly.

Q: What is the difference in REACH status between these parts?

A: The 767139-3 is listed as REACH Affected, indicating it contains substances of concern under REACH regulations. The 5767139-3 shows Vendor Undefined status. Contact TE Connectivity directly for detailed REACH substance declarations applicable to your specific application and regulatory jurisdiction.
