Part Overview

The TE Connectivity AMP Connectors 767130-2 is a 76 Position Connector Receptacle with Center Strip Contacts designed for Surface Mount applications. This rectangular connector features gold-plated contacts and is part of the MICTOR series. The part is currently classified as Obsolete, which necessitates identification of equivalent substitute components for ongoing design requirements and procurement needs. The 767130-2 maintains full functional compatibility with active production alternatives within the same connector family.

Substiute Parts

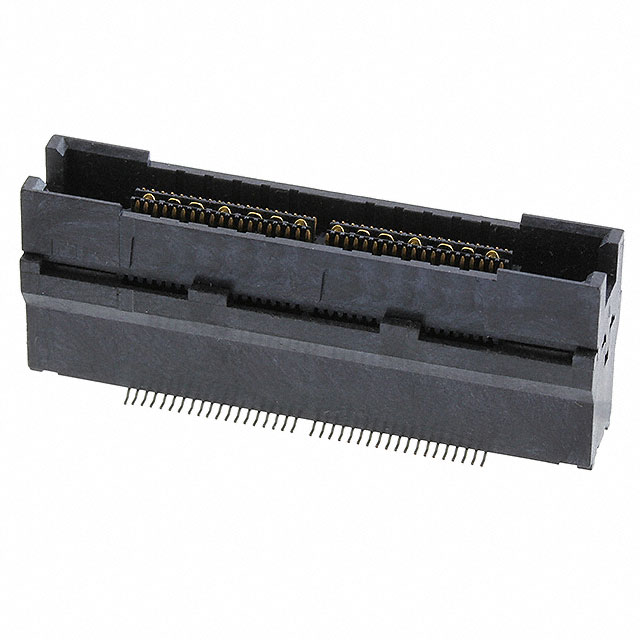

767130-2

TE Connectivity AMP ConnectorsIn Stock: 1063767130-2 Datasheet

Current PartRFQ

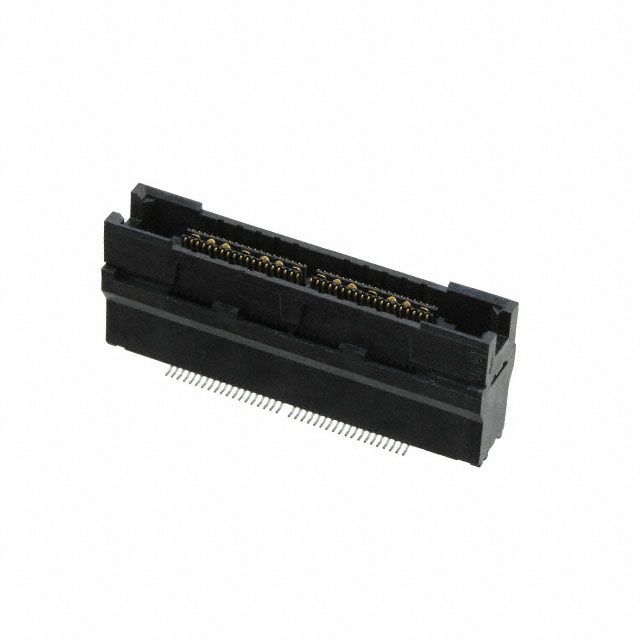

5767130-2

TE Connectivity AMP ConnectorsIn Stock: 10315767130-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 767130-2 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in the following categories:

Electrical Parameters:

• Number of Positions: 76
• Pitch: 0.025" (0.64mm)
• Number of Rows: 2
• Contact Finish: Gold
• Contact Finish Thickness: 30.0µin (0.76µm)

Mechanical Parameters:

• Connector Type: Receptacle, Center Strip Contacts
• Mounting Type: Surface Mount
• Height Above Board: 0.587" (14.91mm)
• Features: Board Guide, Ground Bus (Plane)
• Mated Stacking Heights: 15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, 31.9mm

Series Compatibility:

• Series: MICTOR

All substitute parts must belong to the same MICTOR series and maintain identical dimensional and electrical characteristics to ensure direct interchangeability in existing designs.

Parameter Comparison

Engineering Selection Recommendations

The 5767130-2 serves as the direct functional equivalent to the obsolete 767130-2. Both components are manufactured by TE Connectivity AMP Connectors and maintain identical electrical and mechanical specifications across all critical parameters including position count, pitch, mounting configuration, and contact characteristics.

Product Status Consideration: The 767130-2 is classified as Obsolete, while the 5767130-2 is Active. For new designs and ongoing procurement, the 5767130-2 is the appropriate selection to ensure long-term component availability and supply chain continuity.

Compliance Differentiation: The 5767130-2 provides enhanced regulatory compliance status. It is ROHS3 Compliant and REACH Unaffected, compared to the 767130-2 which is RoHS non-compliant and REACH Affected. For applications subject to environmental and regulatory requirements, the 5767130-2 is the preferred substitute.

Packaging Consideration: The 5767130-2 is supplied in Tube packaging, which differs from the main part specification. Packaging format does not affect electrical or mechanical interchangeability and is determined by procurement and handling requirements.

Both parts share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications, Moisture Sensitivity Level 1 (Unlimited), and mated stacking height options.

Frequently Asked Questions (FAQ)

Q: Can the 5767130-2 be used as a direct replacement for the 767130-2 in existing designs?

A: Yes. The 5767130-2 maintains identical electrical and mechanical specifications to the 767130-2 across all critical parameters including position count (76), pitch (0.025"), mounting type (Surface Mount), contact finish (Gold), and dimensional characteristics. Direct substitution is supported without design modification.

Q: What is the primary reason to transition from 767130-2 to 5767130-2?

A: The 767130-2 is classified as Obsolete, while the 5767130-2 is Active. Transitioning to the 5767130-2 ensures ongoing component availability, supply chain reliability, and access to current manufacturing processes. Additionally, the 5767130-2 provides improved regulatory compliance status (ROHS3 Compliant and REACH Unaffected).

Q: Are there any dimensional differences between these parts?

A: No. Both the 767130-2 and 5767130-2 share identical dimensions including Height Above Board (0.587" / 14.91mm) and all mated stacking height options (15.62mm through 31.9mm). They are mechanically interchangeable.

Q: Does the Tube packaging of the 5767130-2 affect its performance or compatibility?

A: No. Packaging format is a logistics and handling specification that does not impact electrical performance or mechanical compatibility. The 5767130-2 in Tube packaging is functionally identical to the 767130-2 regardless of original packaging format.

Q: Are the contact specifications identical between these parts?

A: Yes. Both parts feature gold-plated contacts with identical finish thickness (30.0µin / 0.76µm), contact type (Center Strip Contacts), and ground bus plane features. Electrical performance and signal integrity characteristics are equivalent.

Q: What is the significance of the RoHS and REACH compliance differences?

A: The 5767130-2 is ROHS3 Compliant and REACH Unaffected, providing compliance with current environmental regulations. The 767130-2 is RoHS non-compliant and REACH Affected. For applications subject to environmental directives or customer requirements, the 5767130-2 is the appropriate selection.

Q: Can both parts be used interchangeably in the same assembly?

A: Yes. The 767130-2 and 5767130-2 are electrically and mechanically interchangeable. They share identical connector type, position configuration, pitch, mounting method, and contact characteristics. Assembly processes and PCB layouts require no modification.
