TE Connectivity 767114-6 Equivalent & Substitute Parts

Part Overview

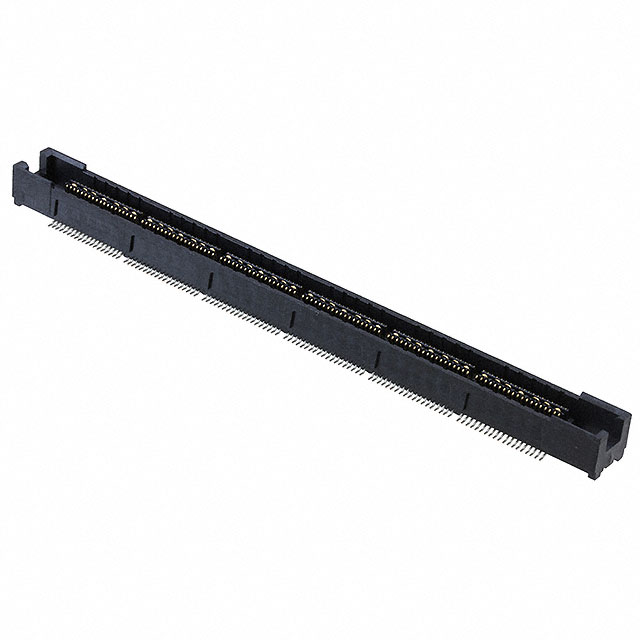

The TE Connectivity 767114-6 is a 228-position rectangular connector receptacle with center strip contacts designed for surface mount applications. This connector is part of the MICTOR series and features gold-plated contacts with a 0.025" (0.64mm) pitch configuration across two rows. The part is currently classified as obsolete, making identification of active equivalent and substitute parts essential for ongoing design support, production continuity, and component procurement.

Substiute Parts

767114-6

TE Connectivity AMP ConnectorsIn Stock: 804767114-6 Datasheet

Current PartRFQ

1-767096-3

TE Connectivity AMP ConnectorsIn Stock: 7811-767096-3 Datasheet

Parametric EquivalentRFQ

5767114-6

TE Connectivity AMP ConnectorsIn Stock: 8125767114-6 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 767114-6 is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Number of positions: 228
• Pitch: 0.025" (0.64mm)
• Number of rows: 2
• Contact finish: Gold
• Contact finish thickness: 30.0µin (0.76µm)

Mechanical Parameters:

• Connector type: Receptacle, Center Strip Contacts
• Mounting type: Surface Mount
• Height above board: 0.236" (6.00mm)
• Mated stacking heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
• Features: Board Guide, Ground Bus (Plane)

Environmental Parameters:

• Moisture Sensitivity Level (MSL): 1 (Unlimited)

All identified substitute parts maintain identical electrical and mechanical specifications. Differences exist only in product status, RoHS compliance level, packaging format, and inventory availability. These differences do not affect functional interchangeability in applications where the connector specifications are met.

Parameter Comparison

Engineering Selection Recommendations

For New Designs and Production:

The substitute parts 1-767096-3 and 5767114-6 are both active products and are the appropriate selections for new applications. Both parts maintain complete electrical and mechanical equivalence to the obsolete 767114-6.

1-767096-3 Selection Criteria:

• Active product status with ongoing manufacturer support
• RoHS Compliant certification
• Tape & Reel packaging suitable for automated assembly
• Recommended for applications requiring RoHS compliance

5767114-6 Selection Criteria:

• Active product status with ongoing manufacturer support
• ROHS3 Compliant certification
• Tape & Reel packaging suitable for automated assembly
• Recommended for applications requiring ROHS3 compliance

For Legacy System Support:

The original 767114-6 remains available in inventory (782 pieces) for applications where RoHS non-compliance is acceptable or where existing stock must be maintained. However, transition to an active substitute part is recommended for long-term supply chain stability.

Compliance Considerations:

Applications subject to RoHS regulations must use either 1-767096-3 or 5767114-6. The original 767114-6 is not suitable for RoHS-regulated applications. ROHS3 compliance (5767114-6) provides the highest regulatory alignment for current and future requirements.

Frequently Asked Questions (FAQ)

Q: Are the substitute parts 1-767096-3 and 5767114-6 electrically identical to the original 767114-6?

A: Yes. Both substitute parts maintain identical electrical specifications including 228 positions, 0.025" (0.64mm) pitch, gold contact finish at 30.0µin (0.76µm) thickness, and all mated stacking heights. Electrical performance is equivalent across all three part numbers.

Q: What is the difference between 1-767096-3 and 5767114-6?

A: The primary differences are RoHS compliance level and REACH status. The 1-767096-3 is RoHS Compliant with REACH Affected status. The 5767114-6 is ROHS3 Compliant with Vendor Undefined REACH status. Both are mechanically and electrically identical and both are packaged in Tape & Reel format.

Q: Can I use the obsolete 767114-6 in new production?

A: The 767114-6 is functionally compatible but is classified as obsolete. For new production, use 1-767096-3 or 5767114-6. The obsolete part should be reserved for legacy system support or repair applications only.

Q: Does packaging format affect interchangeability?

A: Packaging format does not affect electrical or mechanical interchangeability. The 767114-6 packaging is not specified in available documentation. Both 1-767096-3 and 5767114-6 are supplied in Tape & Reel format, which is standard for automated surface mount assembly. If bulk or alternative packaging is required, contact the manufacturer directly.

Q: Which substitute part should I select for RoHS-regulated applications?

A: Both 1-767096-3 (RoHS Compliant) and 5767114-6 (ROHS3 Compliant) are suitable for RoHS-regulated applications. For maximum regulatory alignment with current standards, 5767114-6 is the preferred selection.

Q: Are there any mechanical compatibility issues when substituting these parts?

A: No. All three parts share identical mechanical specifications: 0.236" (6.00mm) height above board, identical mated stacking heights, board guide features, and ground bus plane configuration. Direct mechanical substitution is supported without PCB redesign.

Q: What is the MSL rating for these connectors?

A: All three parts carry MSL 1 (Unlimited) rating, indicating unlimited shelf life and no moisture sensitivity precautions required during storage or handling.
