TE Connectivity 767110-4 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 767110-4 is a 152-position rectangular connector receptacle from the MICTOR series, designed for surface mount applications with center strip contacts and gold plating. This connector is classified as an active product and is currently in stock with 1126 units available.

The 767110-4 is RoHS non-compliant, which may necessitate identification of compliant alternatives for applications subject to RoHS3 regulations. Substitute parts are available that maintain identical electrical and mechanical specifications while offering improved regulatory compliance status.

Substiute Parts

767110-4

TE Connectivity AMP ConnectorsIn Stock: 1207767110-4 Datasheet

Current PartRFQ

2-5767004-5

TE Connectivity AMP ConnectorsIn Stock: 23722-5767004-5 Datasheet

Parametric EquivalentRFQ

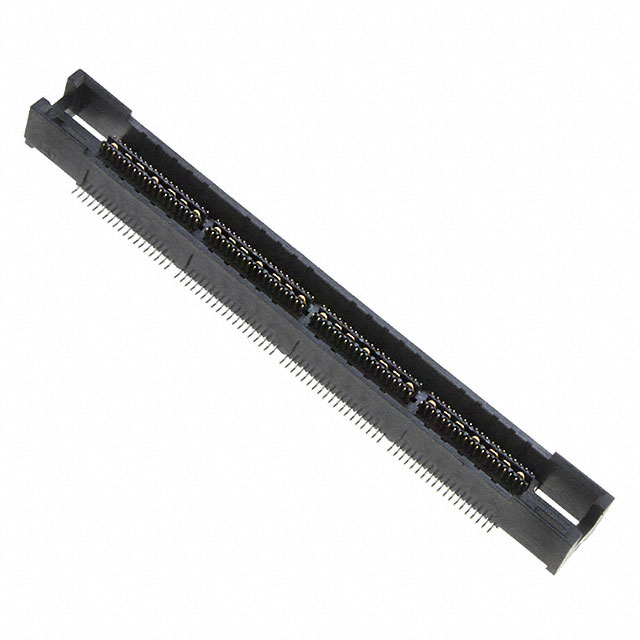

2-767004-5

TE Connectivity AMP ConnectorsIn Stock: 10892-767004-5 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 767110-4 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Number of positions: 152
• Pitch: 0.025" (0.64mm)
• Number of rows: 2
• Contact finish: Gold
• Contact finish thickness: 30.0µin (0.76µm)

Mechanical Compatibility Parameters:

• Connector type: Receptacle, Center Strip Contacts
• Mounting type: Surface Mount
• Height above board: 0.236" (6.00mm)
• Mated stacking heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
• Features: Board Guide, Ground Bus (Plane)

Environmental Parameters:

• Moisture sensitivity level: 1 (Unlimited)
• Series: MICTOR

All substitute parts listed maintain identical specifications across these parameters. Differences in product status and regulatory compliance are noted separately and do not affect electrical or mechanical interchangeability.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection: 2-5767004-5

The 2-5767004-5 is the preferred substitute for the 767110-4. This part maintains complete electrical and mechanical equivalence while offering ROHS3 compliance and REACH unaffected status. The part is active and carries higher inventory availability (2360 units) compared to the original 767110-4 (1126 units). Selection of this part is appropriate for applications subject to RoHS3 or REACH regulatory requirements.

Secondary Selection: 767110-4

The original 767110-4 remains suitable for applications without RoHS3 or REACH compliance mandates. This part is active and maintains full electrical and mechanical compatibility with all mated connector configurations.

Tertiary Selection: 2-767004-5

The 2-767004-5 is electrically and mechanically equivalent but carries obsolete product status and RoHS non-compliant classification. This part is not recommended for new designs. Use is limited to legacy system maintenance where existing inventory or compatibility with installed base components is required. REACH affected status further restricts applicability.

Frequently Asked Questions (FAQ)

Q: Are the 767110-4, 2-5767004-5, and 2-767004-5 electrically interchangeable?

A: Yes. All three parts are electrically equivalent. They share identical specifications for number of positions (152), pitch (0.025"), contact finish (gold at 30.0µin thickness), and all electrical performance parameters.

Q: Are these parts mechanically interchangeable?

A: Yes. All three parts are mechanically interchangeable. They have identical mounting type (surface mount), height above board (0.236"), mated stacking heights, and mechanical features including board guide and ground bus plane.

Q: What is the difference between these parts?

A: The primary differences are product status and regulatory compliance. The 2-5767004-5 is ROHS3 compliant and REACH unaffected, while the 767110-4 and 2-767004-5 are RoHS non-compliant. The 2-767004-5 carries obsolete product status. All three parts are functionally identical.

Q: Which part should I select for a new design?

A: For new designs, select the 2-5767004-5. This part is active, ROHS3 compliant, and REACH unaffected. It provides the best regulatory alignment for current manufacturing standards.

Q: Can I use the 2-767004-5 in new applications?

A: The 2-767004-5 is classified as obsolete and carries RoHS non-compliant and REACH affected status. Use of this part in new designs is not recommended. This part is suitable only for legacy system maintenance or replacement in existing installations.

Q: What is the packaging specification for these parts?

A: The 767110-4 and 2-5767004-5 are packaged in tubes. The 2-767004-5 packaging specification is not defined in available documentation.

Q: Are there any differences in moisture sensitivity?

A: No. All three parts carry identical Moisture Sensitivity Level 1 (Unlimited) classification, indicating no special moisture handling requirements during storage or assembly.

Q: What are the mated stacking height options?

A: All three parts support identical mated stacking heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm. Selection of stacking height depends on application requirements and mating connector specifications.
