TE Connectivity 767110-2 Equivalent & Substitute Parts

Part Overview

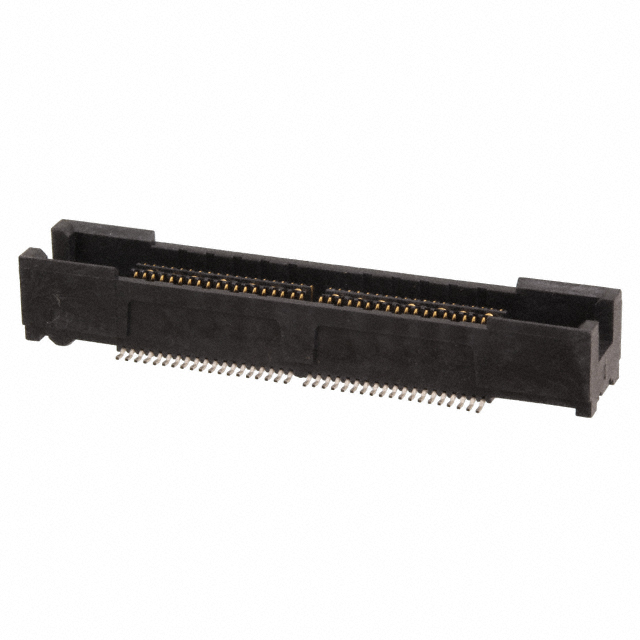

The TE Connectivity 767110-2 is a 76-position rectangular connector receptacle from the MICTOR series, designed for surface mount applications with center strip contacts and gold plating. This connector is classified as Active product status and is currently in stock with 829 units available.

Substitute parts become necessary when the primary part number reaches end-of-life status, when supply constraints occur, or when design requirements mandate compliance with specific regulatory standards such as RoHS. The substitute parts listed maintain electrical and mechanical compatibility while offering alternative availability and compliance profiles.

Substiute Parts

767110-2

TE Connectivity AMP ConnectorsIn Stock: 860767110-2 Datasheet

Current PartRFQ

2-5767004-3

TE Connectivity AMP ConnectorsIn Stock: 22272-5767004-3 Datasheet

Parametric EquivalentRFQ

2-767004-3

TE Connectivity AMP ConnectorsIn Stock: 9112-767004-3 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 767110-2 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Number of positions: 76
• Pitch: 0.025" (0.64mm)
• Number of rows: 2
• Contact finish: Gold
• Contact finish thickness: 30.0µin (0.76µm)

Mechanical Compatibility Parameters:

• Connector type: Receptacle, Center Strip Contacts
• Mounting type: Surface Mount
• Height above board: 0.236" (6.00mm)
• Mated stacking heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
• Features: Board Guide, Ground Bus (Plane)

Environmental Parameters:

• Moisture sensitivity level: 1 (Unlimited)
• Series: MICTOR

All substitute parts listed maintain identical specifications across these parameters, ensuring direct functional and mechanical interchangeability in circuit board designs.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 2-5767004-3

The 2-5767004-3 is the preferred substitute for the 767110-2. This part maintains complete electrical and mechanical equivalence while offering superior regulatory compliance. The 2-5767004-3 is RoHS Compliant and REACH Unaffected, addressing environmental and regulatory requirements that may be mandated in current design specifications. The part carries Active product status with the highest inventory availability at 2188 units, ensuring supply continuity. Selection of this part is appropriate for new designs and applications requiring compliance with current environmental standards.

Secondary Substitute: 2-767004-3

The 2-767004-3 provides electrical and mechanical equivalence to the 767110-2 but carries Obsolete product status. This part is RoHS non-compliant and REACH Affected, matching the compliance profile of the main part. The 2-767004-3 is suitable only for legacy system maintenance, repair, or applications where regulatory compliance is not a design requirement. Inventory availability is 812 units. This part should not be selected for new designs.

Frequently Asked Questions (FAQ)

Q: Can the 2-5767004-3 be used as a direct replacement for the 767110-2 in existing designs?

A: Yes. The 2-5767004-3 maintains identical electrical and mechanical specifications across all critical parameters including connector type, position count, pitch, mounting type, contact finish, and stacking heights. Direct substitution is supported without circuit board redesign or layout modification.

Q: What is the difference between the 2-5767004-3 and 2-767004-3 substitutes?

A: Both parts are electrically and mechanically equivalent to the 767110-2. The primary differences are product status and regulatory compliance. The 2-5767004-3 is Active and RoHS Compliant with REACH Unaffected status. The 2-767004-3 is Obsolete and RoHS non-compliant with REACH Affected status. The 2-5767004-3 is the recommended choice for current applications.

Q: Are there packaging differences between these part numbers?

A: The 767110-2 and 2-5767004-3 are both packaged in Tube format. The 2-767004-3 packaging specification is not defined in the available data. Confirm packaging requirements with your procurement process before finalizing part selection.

Q: What does RoHS Compliant status mean for the 2-5767004-3?

A: RoHS Compliance indicates the part meets the Restriction of Hazardous Substances directive, restricting the use of specific hazardous materials in electrical and electronic equipment. This is relevant for applications subject to European Union regulations or equivalent environmental standards in other jurisdictions.

Q: Can the 767110-2 and its substitutes be used interchangeably in the same assembly?

A: Yes, all three parts maintain identical electrical and mechanical specifications for the critical parameters that determine connector function and board compatibility. They are interchangeable from a functional standpoint. However, regulatory compliance requirements may dictate which part is appropriate for specific applications.

Q: What is the significance of the Moisture Sensitivity Level 1 rating?

A: MSL 1 (Unlimited) indicates the component has unlimited shelf life and does not require special moisture control during storage or handling. This simplifies inventory management and reduces handling constraints compared to higher MSL ratings.

Q: Are the mated stacking heights the same across all three parts?

A: Yes. All three parts support identical mated stacking heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm. This ensures compatibility with the same range of mating connector options.
