TE Connectivity AMP Connectors 767096-9 Equivalent & Substitute Parts

Part Overview

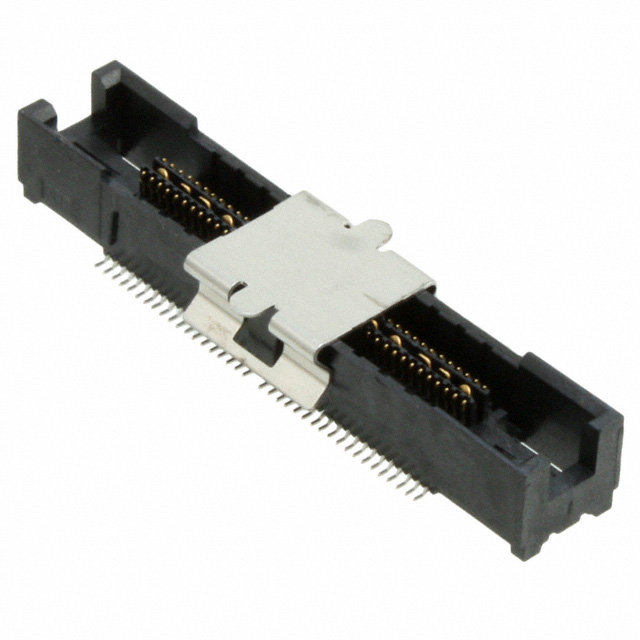

The TE Connectivity AMP Connectors 767096-9 is a 76-position rectangular connector receptacle designed for surface mount applications within the MICTOR series. This component features center strip contacts with gold plating and is supplied in Tape & Reel packaging. The part is currently in Active product status with 1088 units available in inventory.

Identification of equivalent and substitute parts becomes necessary when the primary part number reaches end-of-life status, when packaging format requirements differ, or when compliance certifications must be updated for new production runs. The substitute part 5767096-9 provides functional equivalence with modified packaging and updated RoHS compliance status.

Substiute Parts

767096-9

TE Connectivity AMP ConnectorsIn Stock: 1148767096-9 Datasheet

Current PartRFQ

5767096-9

TE Connectivity AMP ConnectorsIn Stock: 11655767096-9 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between 767096-9 and 5767096-9 is valid based on the following criteria:

Electrical Compatibility Parameters:

• Identical connector type: Receptacle, Center Strip Contacts
• Identical position count: 76 positions
• Identical pitch: 0.025" (0.64mm)
• Identical row configuration: 2 rows
• Identical contact finish and thickness: Gold, 30.0µin (0.76µm)
• Identical mated stacking heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm

Mechanical Compatibility Parameters:

• Identical mounting type: Surface Mount
• Identical height above board: 0.236" (6.00mm)
• Identical features: Board Guide, Ground Bus (Plane)
• Identical series designation: MICTOR

Packaging Difference:

• 767096-9: Tape & Reel (TR) packaging
• 5767096-9: Cut Tape (CT) packaging

Compliance Difference:

• 767096-9: RoHS non-compliant
• 5767096-9: RoHS3 compliant

The primary distinction between these parts is packaging format and regulatory compliance status. Both parts share identical electrical and mechanical specifications, enabling direct functional substitution in applications where packaging format and compliance requirements align with design specifications.

Parameter Comparison

Engineering Selection Recommendations

Selection Criteria Based on Product Status and Compliance:

The 767096-9 is the recommended primary selection for new designs and active production runs. This part maintains Active product status with established supply chain availability (1088 units in stock) and provides immediate procurement reliability.

The 5767096-9 serves as a functional equivalent for applications requiring RoHS3 compliance certification. This substitute is suitable for designs subject to RoHS3 regulatory requirements or customer specifications mandating lead-free and restricted substance compliance. However, the Obsolete product status of 5767096-9 indicates limited long-term availability and should be considered only when compliance requirements override supply continuity concerns.

Packaging Considerations:

Selection between Tape & Reel (767096-9) and Cut Tape (5767096-9) packaging depends on assembly process requirements. Tape & Reel packaging is standard for automated pick-and-place assembly operations. Cut Tape packaging is suitable for manual assembly, low-volume production, or applications where reel-based handling is not required.

Compliance Transition:

For organizations transitioning from RoHS non-compliant to RoHS3 compliant component specifications, 5767096-9 provides electrical and mechanical equivalence. The identical electrical parameters, contact specifications, and mechanical dimensions ensure direct substitution in PCB layouts and assembly processes.

Frequently Asked Questions (FAQ)

Q: Can 767096-9 and 5767096-9 be used interchangeably in the same PCB design?

A: Yes, from an electrical and mechanical standpoint. Both parts share identical connector type, position count, pitch, mounting type, contact finish, and board height specifications. The primary differences are packaging format and RoHS compliance status. PCB layout and assembly process compatibility depend on whether the design accommodates the specific packaging format and whether compliance requirements align with each part's certification status.

Q: What is the difference between Tape & Reel and Cut Tape packaging?

A: Tape & Reel packaging supplies components on a continuous reel suitable for automated assembly equipment with reel-feeding capability. Cut Tape packaging provides components on tape segments without the reel structure, typically used for manual assembly, low-volume production, or when reel-based handling is not available. Both formats contain the same component; the difference is in delivery and handling format.

Q: Why is 5767096-9 listed as Obsolete if it is functionally equivalent?

A: Obsolete product status indicates that the manufacturer has discontinued active production and support for this part number. While 5767096-9 remains functionally equivalent to 767096-9, the Obsolete designation means future availability cannot be guaranteed. The part should be selected only when specific compliance requirements (RoHS3) or packaging needs (Cut Tape) necessitate its use, and only with awareness of potential supply limitations.

Q: Are the mated stacking heights identical between these parts?

A: Yes. Both 767096-9 and 5767096-9 support identical mated stacking heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm. This ensures mechanical compatibility with mating connectors across all supported stack configurations.

Q: What does RoHS3 compliance mean for 5767096-9?

A: RoHS3 compliance indicates that 5767096-9 meets the Restriction of Hazardous Substances Directive requirements, including restrictions on lead, cadmium, mercury, hexavalent chromium, and specified brominated flame retardants. This certification is required for products sold in the European Union and for many organizations with global supply chain compliance mandates. The 767096-9 is RoHS non-compliant and does not carry this certification.

Q: Can I substitute 767096-9 with 5767096-9 in an existing production line?

A: Substitution is possible if the production line can accommodate Cut Tape packaging and if RoHS3 compliance is acceptable or required. If the existing line is configured exclusively for Tape & Reel automated feeding, mechanical modifications to the assembly equipment would be necessary. Verify packaging compatibility with your assembly process before implementing the substitution.

Q: What is the significance of the identical ECCN and HTSUS codes?

A: Identical ECCN (Export Control Classification Number) and HTSUS (Harmonized Tariff Schedule of the United States) codes indicate that both parts fall under the same export control and tariff classifications. This simplifies regulatory compliance and customs documentation for international shipments, as both parts are treated identically from a trade and export control perspective.
