Part Overview

The TE Connectivity AMP Connectors 767094-3 is a 114 Position Connector Receptacle designed for surface mount applications with center strip contacts and palladium-nickel contact finish. This rectangular connector operates at a 0.025" (0.64mm) pitch in a 2-row configuration and is part of the MICTOR series. The component is currently active in production and widely used in high-density interconnect applications requiring reliable center strip contact technology.

Identification of equivalent and substitute parts is necessary to address inventory availability, compliance requirements, and manufacturing continuity. The primary substitute listed maintains identical electrical and mechanical specifications while offering improved regulatory compliance status.

Substiute Parts

767094-3

TE Connectivity AMP ConnectorsIn Stock: 1125767094-3 Datasheet

Current PartRFQ

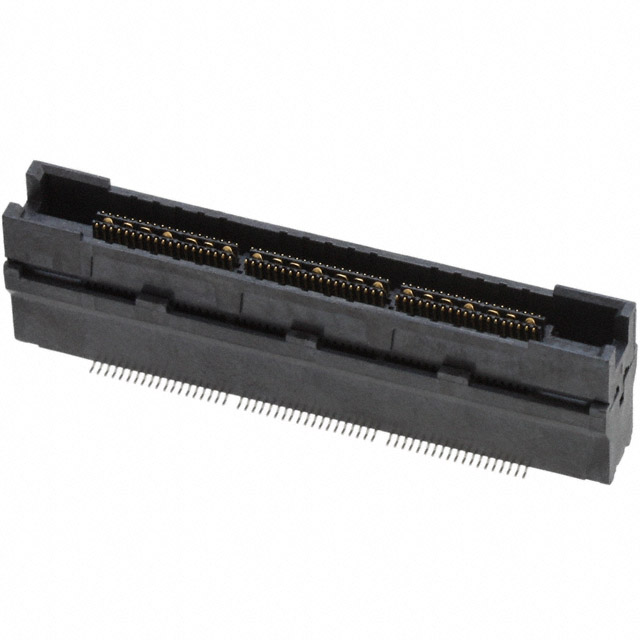

5767094-3

TE Connectivity AMP ConnectorsIn Stock: 14835767094-3 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 767094-3 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 5767094-3 qualifies as a parametric equivalent because it maintains identical specifications in the following key areas:

• Connector type and contact configuration (Receptacle, Center Strip Contacts)
• Position count and pitch (114 positions at 0.025" spacing)
• Row configuration (2 rows)
• Mounting technology (Surface Mount)
• Contact material and finish (Palladium-Nickel at 30.0µin thickness)
• Physical dimensions (Height above board: 0.587")
• Functional features (Board Guide, Ground Bus)
• Mated stacking height compatibility (all heights identical)
• Moisture sensitivity classification (MSL 1)

The substitute differs only in base product number designation and regulatory compliance status, with no impact on form, fit, or function.

Parameter Comparison

Engineering Selection Recommendations

The 767094-3 and 5767094-3 are parametric equivalents suitable for direct substitution in applications where form, fit, and function requirements are identical. Selection between these parts should be based on the following criteria:

767094-3 (Main Part): Select this part number for applications with no RoHS compliance requirements or where legacy component specifications are mandated. This part maintains the original MICTOR series designation and is suitable for non-regulated markets or applications with established design documentation referencing this specific part number.

5767094-3 (Substitute): Select this part number for new designs or applications requiring ROHS3 compliance. This variant meets current regulatory requirements while maintaining complete electrical and mechanical compatibility. The substitute offers improved compliance status without any compromise to connector performance, contact reliability, or physical integration.

Both parts are manufactured by TE Connectivity AMP Connectors and carry identical ECCN and HTSUS classifications, ensuring consistent export and tariff treatment. Inventory availability differs between the two variants, with 5767094-3 currently showing higher stock levels (1457 pcs vs. 1077 pcs).

Frequently Asked Questions (FAQ)

Q: Can 5767094-3 be used as a direct replacement for 767094-3 in existing designs?

A: Yes. The 5767094-3 is a parametric equivalent with identical electrical and mechanical specifications. All dimensional, contact, and functional characteristics match exactly. The only difference is RoHS compliance status. Direct substitution is supported without design modification.

Q: What is the difference between these two part numbers?

A: The primary difference is regulatory compliance. The 767094-3 is RoHS non-compliant, while the 5767094-3 is ROHS3 compliant. All other specifications—connector type, position count, pitch, mounting method, contact finish, and physical dimensions—are identical.

Q: Are the mated stacking heights the same for both parts?

A: Yes. Both 767094-3 and 5767094-3 support the identical set of mated stacking heights: 15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, and 31.9mm.

Q: Do both parts have the same moisture sensitivity level?

A: Yes. Both parts are classified as MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.

Q: Which part should be specified for new product designs?

A: For new designs, specify 5767094-3 to ensure compliance with current ROHS3 regulations. This part provides equivalent performance while meeting modern regulatory requirements.

Q: Are the contact finish specifications identical?

A: Yes. Both parts feature palladium-nickel contact finish with a thickness of 30.0µin (0.76µm), ensuring identical electrical contact characteristics and corrosion resistance.

Q: Can these parts be mixed in the same assembly?

A: Yes. Since both parts are parametric equivalents with identical form, fit, and function, they can be used interchangeably within the same assembly without affecting performance or reliability.

Q: What is the pitch specification for these connectors?

A: Both parts operate at a 0.025" (0.64mm) pitch in a 2-row, 114-position configuration, providing high-density interconnect capability.
