TE Connectivity AMP Connectors 767081-3 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 767081-3 is a 114 Position Connector Receptacle with Center Strip Contacts designed for Surface Mount applications. This rectangular connector features Palladium-Nickel contact finish and is part of the MICTOR series. The 767081-3 is classified as Obsolete, which necessitates identification of equivalent and substitute parts for ongoing design requirements and component procurement.

Substiute Parts

767081-3

TE Connectivity AMP ConnectorsIn Stock: 934767081-3 Datasheet

Current PartRFQ

5767081-3

TE Connectivity AMP ConnectorsIn Stock: 7815767081-3 Datasheet

DirectRFQ

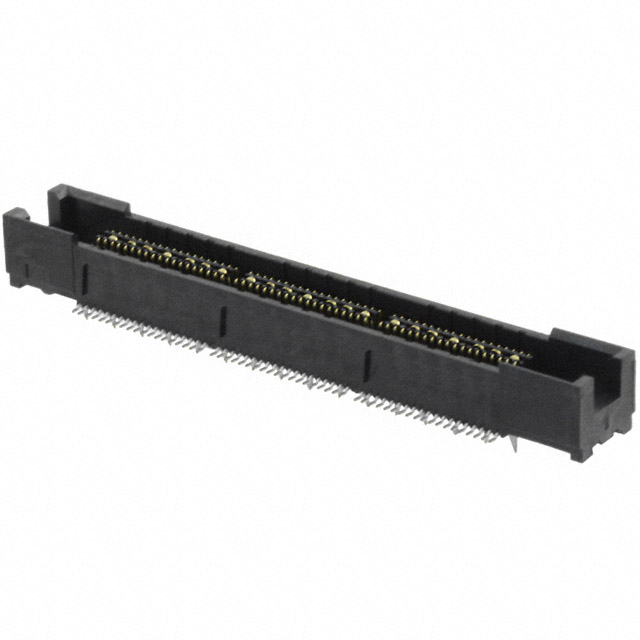

5767054-3

TE Connectivity AMP ConnectorsIn Stock: 8085767054-3 Datasheet

Parametric EquivalentRFQ

767054-3

TE Connectivity AMP ConnectorsIn Stock: 860767054-3 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of rectangular connectors in the MICTOR series is determined by strict equivalence across the following critical parameters:

Mandatory Equivalence Parameters:

• Number of Positions: 114
• Pitch: 0.025" (0.64mm)
• Number of Rows: 2
• Connector Type: Receptacle, Center Strip Contacts
• Mounting Type: Surface Mount
• Contact Finish: Palladium-Nickel
• Contact Finish Thickness: 5.00µin (0.127µm)
• Height Above Board: 0.236" (6.00mm)
• Mated Stacking Heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
• Features: Board Guide, Ground Bus (Plane)
• Moisture Sensitivity Level: 1 (Unlimited)

All identified substitute parts maintain identical electrical and mechanical specifications across these parameters. Differences in Product Status and RoHS compliance are noted for procurement and regulatory considerations.

Parameter Comparison

Engineering Selection Recommendations

Primary Recommendation: 5767081-3

The 5767081-3 is the direct successor to the obsolete 767081-3. Both parts share identical electrical and mechanical specifications. The 5767081-3 carries Active product status and RoHS Compliant certification, making it the preferred selection for new designs and ongoing procurement. The 5767081-3 is supplied in Tube packaging.

Secondary Recommendation: 5767054-3

The 5767054-3 is a parametric equivalent offering identical connector specifications. This part carries Active product status and ROHS3 Compliant certification with REACH Unaffected status. The 5767054-3 is supplied in Tube packaging and represents an alternative source for the same functional connector.

Tertiary Option: 767054-3

The 767054-3 is classified as Obsolete with RoHS non-compliant status and REACH Affected designation. While electrically and mechanically equivalent, this part is not recommended for new designs due to its obsolete status and regulatory compliance limitations.

Compliance Considerations:

For applications requiring RoHS compliance, select either 5767081-3 or 5767054-3. For applications requiring REACH compliance, select 5767054-3. The original 767081-3 and 767054-3 are suitable only for legacy systems where RoHS and REACH compliance are not mandated.

Frequently Asked Questions (FAQ)

Q: Can 5767081-3 be used as a direct replacement for 767081-3?

A: Yes. The 5767081-3 is electrically and mechanically identical to the 767081-3 across all critical parameters including position count, pitch, mounting type, contact finish, and stacking heights. The primary difference is product status and RoHS compliance.

Q: What is the difference between 5767081-3 and 5767054-3?

A: Both parts are parametric equivalents with identical electrical and mechanical specifications. The difference lies in RoHS certification level (RoHS Compliant versus ROHS3 Compliant) and REACH status (Vendor Undefined versus REACH Unaffected). Selection between these parts depends on specific regulatory requirements.

Q: Why is 767081-3 listed as Obsolete?

A: The 767081-3 has been superseded by the 5767081-3, which maintains identical specifications while offering improved compliance certifications and Active product status.

Q: Are there packaging differences between substitute parts?

A: Yes. The 767081-3 and 767054-3 have unspecified packaging, while 5767081-3 and 5767054-3 are supplied in Tube packaging. Verify packaging requirements for your procurement process.

Q: Can I use 767054-3 in a new design?

A: The 767054-3 is classified as Obsolete. For new designs, use either 5767081-3 or 5767054-3, both of which carry Active product status.

Q: What does MSL 1 (Unlimited) mean for this connector?

A: Moisture Sensitivity Level 1 indicates the lowest moisture sensitivity classification. These connectors have unlimited shelf life under normal storage conditions and do not require special moisture control during handling or storage.

Q: Are all substitute parts compatible with the same mating connectors?

A: Yes. All substitute parts maintain identical pitch (0.025"), position count (114), row configuration (2), and stacking heights, ensuring compatibility with the same mating connectors.
