TE Connectivity AMP Connectors 767056-2 Equivalent & Substitute Parts

Part Overview

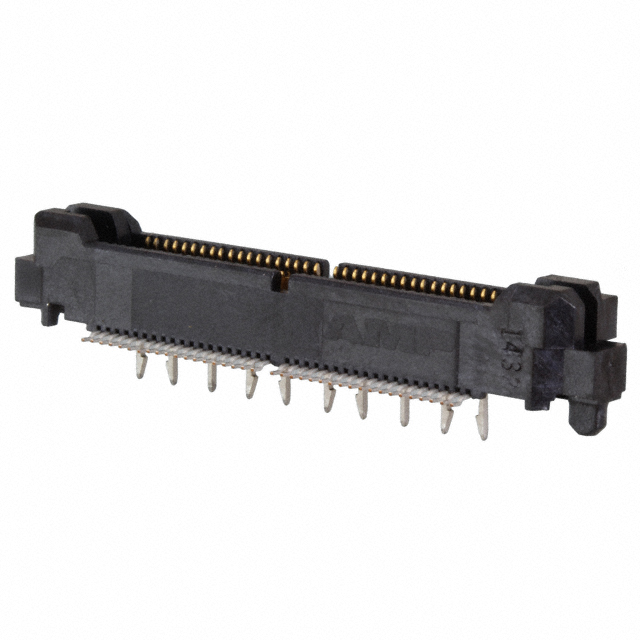

The TE Connectivity AMP Connectors 767056-2 is a 76 Position Connector Plug with Outer Shroud Contacts designed for Surface Mount applications. This rectangular connector features Palladium-Nickel contact finish and is part of the MICTOR series. The 767056-2 is classified as Obsolete, making identification of equivalent and substitute parts essential for ongoing system support, maintenance, and new design implementations where legacy compatibility is required.

Substiute Parts

767056-2

TE Connectivity AMP ConnectorsIn Stock: 2128767056-2 Datasheet

Current PartRFQ

5767056-2

TE Connectivity AMP ConnectorsIn Stock: 12145767056-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 767056-2 is determined by strict equivalence across the following critical parameters:

Electrical and Mechanical Compatibility Parameters:

• Number of Positions: 76
• Pitch: 0.025" (0.64mm)
• Number of Rows: 2
• Connector Type: Plug, Outer Shroud Contacts
• Mounting Type: Surface Mount
• Contact Finish: Palladium-Nickel
• Contact Finish Thickness: 5.00µin (0.127µm)
• Height Above Board: 0.251" (6.38mm)
• Mated Stacking Heights: 6.6mm, 15.62mm
• Features: Board Guide, Ground Bus (Plane)
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 5767056-2 maintains identical electrical and mechanical specifications to the main part 767056-2. Both connectors are manufactured by TE Connectivity AMP Connectors within the MICTOR series and share all critical dimensional and functional parameters required for direct substitution in applications requiring 76-position rectangular connectors with Surface Mount configuration.

Parameter Comparison

Engineering Selection Recommendations

The 5767056-2 serves as the direct functional equivalent to the obsolete 767056-2. Both connectors share identical electrical and mechanical specifications across all critical parameters including position count, pitch, mounting configuration, contact finish, and dimensional characteristics.

Product Status Consideration: The 767056-2 is classified as Obsolete, while the 5767056-2 is Active. For new designs, maintenance applications, and systems requiring ongoing component availability, the 5767056-2 is the appropriate selection.

Compliance Differentiation: The 5767056-2 is ROHS3 Compliant and REACH Unaffected, whereas the 767056-2 is RoHS non-compliant and REACH Affected. Applications subject to regulatory compliance requirements, including European Union directives and environmental standards, require the 5767056-2.

Packaging: The 5767056-2 is supplied in Tube packaging, which may differ from the original 767056-2 packaging specification. Verify packaging requirements for automated assembly and inventory management systems.

Both connectors are manufactured by TE Connectivity AMP Connectors and maintain full compatibility within the MICTOR series rectangular connector family.

Frequently Asked Questions (FAQ)

Q: Can the 5767056-2 be used as a direct replacement for the 767056-2 in existing applications?

A: Yes. The 5767056-2 maintains identical electrical and mechanical specifications to the 767056-2 across all critical parameters including position count (76), pitch (0.025"), mounting type (Surface Mount), contact finish (Palladium-Nickel), and dimensional characteristics. Direct substitution is supported for applications requiring 76-position rectangular connectors with Outer Shroud Contacts configuration.

Q: What is the primary difference between the 767056-2 and 5767056-2?

A: The primary differences are product status and regulatory compliance. The 767056-2 is Obsolete and RoHS non-compliant, while the 5767056-2 is Active and ROHS3 Compliant. The 5767056-2 is also REACH Unaffected, whereas the 767056-2 is REACH Affected. All electrical and mechanical specifications remain identical.

Q: Are there any dimensional incompatibilities between these two connectors?

A: No. Both connectors share identical dimensional specifications including Height Above Board (0.251" / 6.38mm) and Mated Stacking Heights (6.6mm, 15.62mm). Board layout and mating interface compatibility are maintained.

Q: Does the packaging difference between the two parts affect compatibility?

A: Packaging does not affect electrical or mechanical compatibility. The 5767056-2 is supplied in Tube packaging. Verify that packaging format aligns with your assembly and inventory management requirements.

Q: Which part should be selected for new designs?

A: The 5767056-2 is the appropriate selection for new designs. It is Active, ROHS3 Compliant, and REACH Unaffected, ensuring long-term availability and regulatory compliance.

Q: Are both connectors part of the same MICTOR series?

A: Yes. Both the 767056-2 and 5767056-2 are part of the TE Connectivity AMP Connectors MICTOR series, ensuring design consistency and interchangeability within this connector family.

Q: What is the Moisture Sensitivity Level for both connectors?

A: Both connectors have a Moisture Sensitivity Level (MSL) of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage and handling.
