TE Connectivity 767054-6 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 767054-6 is a 228-position rectangular connector receptacle from the MICTOR series, designed for surface mount applications with center strip contacts and palladium-nickel plating. This connector features a 0.025" (0.64mm) pitch configuration across two rows and is classified as obsolete. Due to its obsolete product status, equivalent substitute parts with active availability are necessary for new designs and ongoing production requirements.

Substiute Parts

767054-6

TE Connectivity AMP ConnectorsIn Stock: 800767054-6 Datasheet

Current PartRFQ

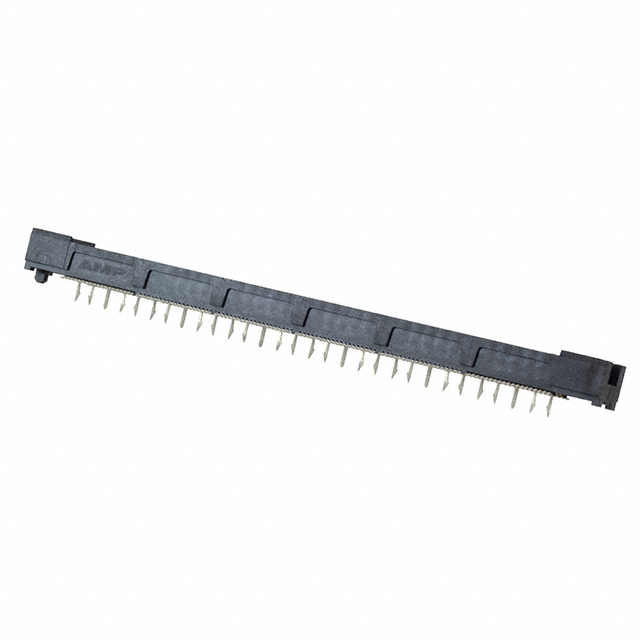

5767054-6

TE Connectivity AMP ConnectorsIn Stock: 10195767054-6 Datasheet

DirectRFQ

5767081-6

TE Connectivity AMP ConnectorsIn Stock: 7635767081-6 Datasheet

Parametric EquivalentRFQ

767081-6

TE Connectivity AMP ConnectorsIn Stock: 1182767081-6 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 767054-6 is determined by strict electrical and mechanical parameter matching. All substitute parts must maintain identical specifications across the following critical parameters:

• Position Count: 228 positions (non-negotiable)
• Pitch Configuration: 0.025" (0.64mm) with 2-row arrangement
• Connector Type: Receptacle with center strip contacts
• Mounting Technology: Surface mount only
• Contact Finish: Palladium-nickel plating at 5.00µin thickness
• Physical Height: 0.236" (6.00mm) above board
• Functional Features: Board guide and ground bus plane

The three substitute parts identified—5767054-6, 767081-6, and 5767081-6—satisfy all electrical and mechanical requirements for direct substitution. Differences in product status, RoHS compliance, and packaging do not affect functional interchangeability within the specified parameter set.

Parameter Comparison

Engineering Selection Recommendations

All three substitute parts—5767054-6, 767081-6, and 5767081-6—are functionally equivalent to the obsolete 767054-6 based on electrical and mechanical parameters. Selection among these alternatives should be based on the following criteria:

5767054-6: This part maintains the same base product number as the main part (5767054) and carries ROHS3 compliance certification. It is suitable for applications requiring modern environmental compliance standards and is available in tube packaging with 974 units in stock.

767081-6: This part is available with the highest inventory level (1094 units) and carries RoHS non-compliant status. It is appropriate for legacy system maintenance and applications where RoHS compliance is not a requirement.

5767081-6: This part combines active product status with RoHS compliance certification and is available with 712 units in stock. It represents a balanced option for applications requiring both compliance and active manufacturer support.

Product status (active versus obsolete) and compliance certifications (RoHS3, RoHS, or non-compliant) are the primary differentiators. All parts share identical electrical and mechanical specifications, ensuring direct interchangeability within the MICTOR 228-position connector family.

Frequently Asked Questions (FAQ)

Q: Can the 767054-6 be directly replaced with any of the substitute parts?

A: Yes. The 5767054-6, 767081-6, and 5767081-6 are direct functional equivalents. All maintain identical position count (228), pitch (0.025"), contact finish (palladium-nickel), mounting type (surface mount), and physical dimensions. No circuit redesign or PCB layout modification is required.

Q: What is the difference between the base product numbers (767054 versus 767081)?

A: The base product numbers identify different product lines within the MICTOR series. Both 767054 and 767081 variants meet the specified electrical and mechanical parameters for this 228-position receptacle configuration. The difference does not affect functional compatibility.

Q: Does RoHS compliance status affect electrical performance?

A: No. RoHS compliance relates to material composition and environmental regulations, not electrical or mechanical performance. All parts deliver identical electrical characteristics and physical dimensions regardless of RoHS status.

Q: Why is the original 767054-6 marked as obsolete?

A: Obsolete status indicates the manufacturer has discontinued active production. The substitute parts (5767054-6, 767081-6, 5767081-6) are active products that provide equivalent functionality for new designs and ongoing production.

Q: Are there packaging differences between the substitute parts?

A: All substitute parts are supplied in tube packaging. The original 767054-6 packaging specification was not provided in the technical data. Tube packaging is standard for surface mount rectangular connectors in this category.

Q: Which substitute part should be selected for new product designs?

A: For new designs, 5767054-6 (ROHS3 compliant) or 5767081-6 (RoHS compliant) are recommended due to active product status and modern compliance certifications. Selection between these two depends on specific regulatory requirements for the target application.

Q: Can these parts be used interchangeably in existing assemblies?

A: Yes. All substitute parts are mechanically and electrically interchangeable with the original 767054-6. No assembly process modifications are required.
