TE Connectivity AMP Connectors 767054-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 767054-5 is a 190 Position Connector Receptacle with Center Strip Contacts designed for Surface Mount applications. This rectangular connector features Palladium-Nickel contact finish and is part of the MICTOR series. The 767054-5 is classified as Obsolete, making identification of equivalent and substitute parts essential for ongoing design support, production continuity, and component sourcing.

Substiute Parts

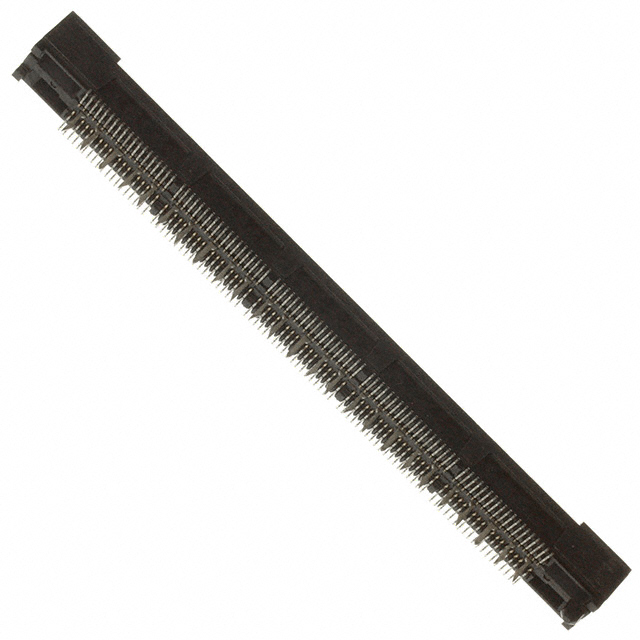

767054-5

TE Connectivity AMP ConnectorsIn Stock: 820767054-5 Datasheet

Current PartRFQ

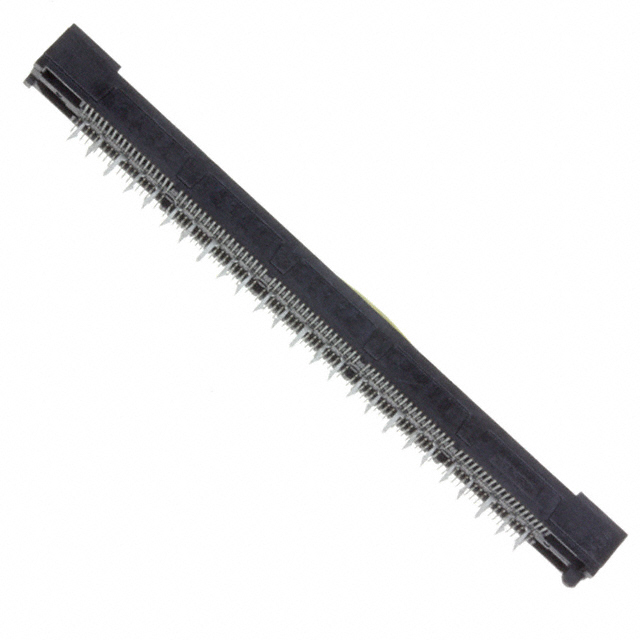

5767054-5

TE Connectivity AMP ConnectorsIn Stock: 10435767054-5 Datasheet

DirectRFQ

5767081-5

TE Connectivity AMP ConnectorsIn Stock: 12085767081-5 Datasheet

Parametric EquivalentRFQ

767081-5

TE Connectivity AMP ConnectorsIn Stock: 769767081-5 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 767054-5 is determined by strict electrical and mechanical parameter matching within the MICTOR rectangular connector series. The following parameters establish substitution eligibility:

Critical Matching Parameters:

• Connector Type: Receptacle, Center Strip Contacts
• Number of Positions: 190
• Pitch: 0.025" (0.64mm)
• Number of Rows: 2
• Mounting Type: Surface Mount
• Contact Finish: Palladium-Nickel
• Contact Finish Thickness: 5.00µin (0.127µm)
• Height Above Board: 0.236" (6.00mm)
• Mated Stacking Heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
• Features: Board Guide, Ground Bus (Plane)
• Moisture Sensitivity Level: 1 (Unlimited)

All identified substitute parts maintain identical electrical and mechanical specifications to the main part number 767054-5. Variations in product status, RoHS compliance, and packaging format do not affect functional interchangeability.

Parameter Comparison

Engineering Selection Recommendations

All three substitute part numbers (5767054-5, 5767081-5, and 767081-5) are electrically and mechanically equivalent to the obsolete 767054-5 and provide direct functional interchangeability for Surface Mount rectangular connector applications within the MICTOR series.

5767054-5 is the direct successor to 767054-5, maintaining the same base product number prefix while incorporating ROHS3 compliance. This part is classified as Active and represents the primary upgrade path for new designs and production continuity.

5767081-5 is an Active parametric equivalent offering RoHS compliance. This part provides an alternative sourcing option with identical electrical and mechanical specifications.

767081-5 is an Active parametric equivalent with RoHS non-compliant status, matching the compliance profile of the original 767054-5 while maintaining Active product status for ongoing availability.

Selection between substitute parts should be based on RoHS compliance requirements for the end application and supply chain availability. All three parts are suitable for direct replacement in existing designs without circuit or layout modifications.

Frequently Asked Questions (FAQ)

Q: Can 5767054-5 be used as a direct replacement for the obsolete 767054-5?

A: Yes. The 5767054-5 is electrically and mechanically equivalent to 767054-5 with identical connector specifications, pitch, position count, mounting type, and contact finish. The primary difference is product status (Active versus Obsolete) and RoHS compliance (ROHS3 Compliant versus non-compliant).

Q: What is the difference between 5767054-5 and 5767081-5?

A: Both parts are parametric equivalents with identical electrical and mechanical specifications. The difference lies in the base product number (5767054 versus 5767081) and RoHS compliance designation (ROHS3 Compliant versus RoHS Compliant). Both are Active products suitable for production use.

Q: Is 767081-5 compatible with designs originally specified for 767054-5?

A: Yes. The 767081-5 maintains identical electrical and mechanical parameters including connector type, position count, pitch, mounting type, contact finish, and stacking heights. The part is Active and available for production applications.

Q: What packaging format is used for the substitute parts?

A: The substitute parts 5767054-5, 5767081-5, and 767081-5 are supplied in Tube packaging. The original 767054-5 packaging format was not specified in the component documentation.

Q: Are there any compliance differences between the substitute parts?

A: Yes. The 5767054-5 is ROHS3 Compliant, the 5767081-5 is RoHS Compliant, and the 767081-5 is RoHS non-compliant. All parts are EAR99 classified and REACH Affected or Vendor Undefined. Selection should align with end-product regulatory requirements.

Q: Can these parts be used interchangeably on the same printed circuit board?

A: Yes. All substitute parts share identical mechanical specifications including height above board (0.236" / 6.00mm), mated stacking heights, and Surface Mount footprint requirements. No PCB layout modifications are required when substituting between these parts.

Q: What is the current inventory status for these parts?

A: The 767054-5 (Obsolete) has 718 pieces in stock. The 5767054-5 has 1032 pieces, the 5767081-5 has 1129 pieces, and the 767081-5 has 717 pieces available as new original stock.
