TE Connectivity AMP Connectors 767054-2 Equivalent & Substitute Parts

Part Overview

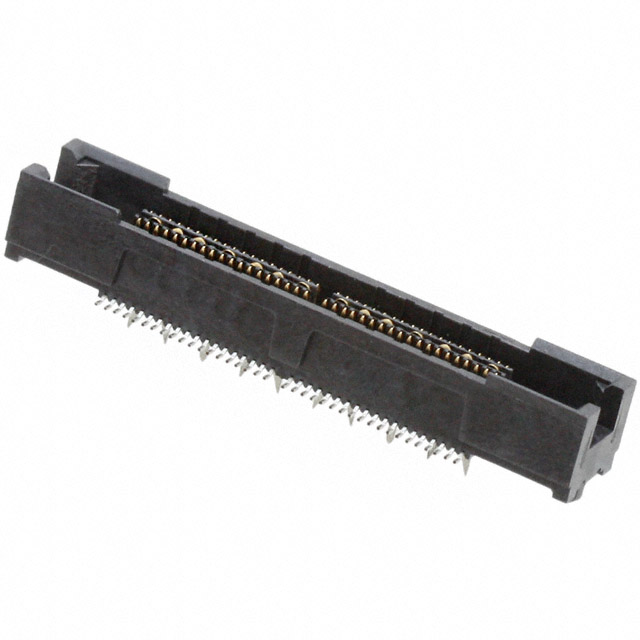

The TE Connectivity AMP Connectors 767054-2 is a 76 Position Connector Receptacle with Center Strip Contacts designed for Surface Mount applications. This rectangular connector features Palladium-Nickel contact finish and is part of the MICTOR series. The main part number 767054-2 is classified as Obsolete, which necessitates identification of equivalent substitute components for ongoing procurement and system maintenance. The substitute part 5767054-2 provides functional equivalence with updated product status and compliance certifications.

Substiute Parts

767054-2

TE Connectivity AMP ConnectorsIn Stock: 725767054-2 Datasheet

Current PartRFQ

5767054-2

TE Connectivity AMP ConnectorsIn Stock: 16715767054-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 767054-2 with the active 5767054-2 is based on electrical and mechanical parameter equivalence. Both parts maintain identical specifications across all critical substitution criteria:

Key Parameters for Substitution Compatibility:

• Connector Type: Receptacle, Center Strip Contacts
• Number of Positions: 76
• Pitch: 0.025" (0.64mm)
• Number of Rows: 2
• Mounting Type: Surface Mount
• Contact Finish: Palladium-Nickel
• Contact Finish Thickness: 5.00µin (0.127µm)
• Height Above Board: 0.236" (6.00mm)
• Features: Board Guide, Ground Bus (Plane)
• Mated Stacking Heights: Identical across all values
• Series: MICTOR

The substitute part 5767054-2 provides direct functional replacement with no electrical or mechanical parameter deviations. The primary distinction is product status transition from Obsolete to Active, accompanied by improved compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The 5767054-2 serves as the direct substitute for the obsolete 767054-2 based on complete electrical and mechanical parameter equivalence. Selection of the substitute part is supported by the following factors:

Product Status: The 767054-2 is classified as Obsolete, indicating discontinued manufacturing and limited availability. The 5767054-2 maintains Active product status, ensuring ongoing availability and supply chain continuity.

Compliance Certifications: The substitute part 5767054-2 achieves ROHS3 compliance, whereas the main part 767054-2 is RoHS non-compliant. For applications subject to RoHS regulations, the substitute part satisfies regulatory requirements.

REACH Status: The 5767054-2 is REACH Unaffected, compared to the main part which is REACH Affected. This distinction is relevant for applications in regulated markets requiring REACH compliance documentation.

Packaging: The substitute part is supplied in Tube packaging, providing standardized handling and storage conditions suitable for production environments.

All electrical and mechanical parameters remain identical between the main part and substitute, ensuring direct functional replacement without design modifications or performance deviations.

Frequently Asked Questions (FAQ)

Q: Can the 5767054-2 be used as a direct replacement for the 767054-2 in existing designs?

A: Yes. The 5767054-2 provides direct functional replacement. All electrical and mechanical parameters are identical, including connector type, position count, pitch, mounting type, contact finish, and stacking heights. No design modifications are required.

Q: What is the primary reason for substituting the 767054-2?

A: The 767054-2 is classified as Obsolete, indicating discontinued manufacturing. The 5767054-2 is an Active product with equivalent specifications and improved compliance certifications, ensuring long-term availability and regulatory compliance.

Q: Are there differences in RoHS compliance between these parts?

A: Yes. The 767054-2 is RoHS non-compliant, while the 5767054-2 is ROHS3 Compliant. For applications subject to RoHS regulations, the substitute part satisfies compliance requirements.

Q: How do the REACH statuses differ?

A: The 767054-2 is REACH Affected, requiring specific compliance documentation. The 5767054-2 is REACH Unaffected, simplifying regulatory documentation for applications in REACH-regulated markets.

Q: Is the packaging different between these parts?

A: Yes. The 5767054-2 is supplied in Tube packaging, while the 767054-2 packaging is not specified. Tube packaging provides standardized handling and storage suitable for production environments.

Q: Do the contact finish specifications match?

A: Yes. Both parts feature Palladium-Nickel contact finish with identical thickness of 5.00µin (0.127µm), ensuring equivalent electrical performance and reliability.

Q: Are the mated stacking heights identical?

A: Yes. Both parts support identical mated stacking heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm, ensuring compatibility with existing mating connectors.

Q: What is the Moisture Sensitivity Level for both parts?

A: Both parts have MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage and handling.
