TE Connectivity AMP Connectors 767042-3 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 767042-3 is a 114-position rectangular connector plug with surface mount technology and outer shroud contacts. This MICTOR series connector is designed for high-density interconnect applications requiring gold-plated contacts and board-level guidance. The part is currently active in production and maintains an inventory of 811 pieces in new original condition.

Identification of equivalent and substitute parts is necessary to support supply chain continuity, accommodate design revisions, and address component availability across manufacturing cycles.

Key Parameters

Parameter	Value
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	114
Pitch	0.025" (0.64mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Height Above Board	0.727" (18.47mm)
Mated Stacking Heights	18.75mm, 27.8mm
Features	Board Guide, Ground Bus (Plane)
Series	MICTOR
Packaging	Tube
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the 767042-3 is determined by strict equivalence across all critical electrical and mechanical parameters. The following parameters establish the substitution criteria:

Connector Type: Plug with outer shroud contacts
Position Count: 114 positions
Pitch Specification: 0.025" (0.64mm)
Row Configuration: 2 rows
Mounting Technology: Surface mount
Contact Material and Finish: Gold plating at 30.0µin (0.76µm) thickness
Physical Dimensions: Height above board of 0.727" (18.47mm) and mated stacking heights of 18.75mm and 27.8mm
Functional Features: Board guide and ground bus plane
Series Classification: MICTOR

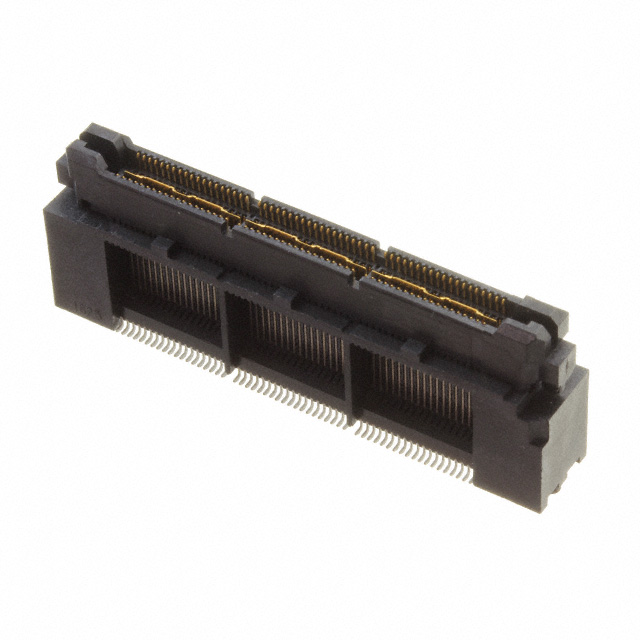

The substitute part 5767042-3 meets all of these criteria and is therefore classified as a parametric equivalent.

Parameter Comparison

Parameter	767042-3 (Main Part)	5767042-3 (Substitute)	Match Status
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Identical
Category	Rectangular Connectors	Rectangular Connectors	Identical
Series	MICTOR	MICTOR	Identical
Connector Type	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Identical
Number of Positions	114	114	Identical
Pitch	0.025" (0.64mm)	0.025" (0.64mm)	Identical
Number of Rows	2	2	Identical
Mounting Type	Surface Mount	Surface Mount	Identical
Contact Finish	Gold	Gold	Identical
Contact Finish Thickness	30.0µin (0.76µm)	30.0µin (0.76µm)	Identical
Height Above Board	0.727" (18.47mm)	0.727" (18.47mm)	Identical
Mated Stacking Heights	18.75mm, 27.8mm	18.75mm, 27.8mm	Identical
Features	Board Guide, Ground Bus (Plane)	Board Guide, Ground Bus (Plane)	Identical
Packaging	Tube	Tube	Identical
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Identical
Product Status	Active	Active	Identical
ECCN	EAR99	EAR99	Identical
HTSUS	8536.69.4040	8536.69.4040	Identical
RoHS Status	RoHS non-compliant	ROHS3 Compliant	Different
REACH Status	REACH Affected	Vendor Undefined	Different
Current Inventory	811 Pcs	1146 Pcs	Different

Engineering Selection Recommendations

The 767042-3 and 5767042-3 are parametric equivalents across all electrical and mechanical specifications. Both parts are active products from TE Connectivity AMP Connectors and share identical connector architecture, contact configuration, and physical dimensions.

The primary distinction between these parts is regulatory compliance status. The 5767042-3 carries ROHS3 compliance certification, whereas the 767042-3 is RoHS non-compliant. For applications subject to RoHS3 regulatory requirements, the 5767042-3 is the appropriate selection. For applications without RoHS3 mandates, either part satisfies the electrical and mechanical requirements.

The 5767042-3 currently maintains higher inventory availability at 1146 pieces compared to 811 pieces for the 767042-3, which may influence supply chain planning decisions.

Frequently Asked Questions (FAQ)

Q: Are the 767042-3 and 5767042-3 electrically interchangeable?

A: Yes. Both parts are 114-position MICTOR series plugs with identical contact pitch (0.025"), row configuration (2 rows), gold contact finish (30.0µin thickness), and electrical characteristics. They are electrically interchangeable.

Q: Are the 767042-3 and 5767042-3 mechanically interchangeable?

A: Yes. Both parts share identical physical dimensions, including height above board (0.727"), mated stacking heights (18.75mm and 27.8mm), mounting type (surface mount), and connector shroud design. They are mechanically interchangeable.

Q: What is the primary difference between these two parts?

A: The primary difference is RoHS compliance status. The 5767042-3 is ROHS3 compliant, while the 767042-3 is RoHS non-compliant. All other electrical, mechanical, and functional parameters are identical.

Q: Can I use the 5767042-3 as a direct replacement for the 767042-3 in existing designs?

A: Yes, the 5767042-3 is a direct parametric equivalent and can be used as a replacement. If your application or regulatory environment requires RoHS3 compliance, the 5767042-3 is the appropriate choice.

Q: Are both parts available in the same packaging format?

A: Yes. Both the 767042-3 and 5767042-3 are supplied in tube packaging.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry a Moisture Sensitivity Level (MSL) of 1, which indicates unlimited shelf life without special moisture control requirements.

Q: Do these connectors include board-level guidance features?

A: Yes. Both the 767042-3 and 5767042-3 include board guide and ground bus (plane) features as standard.
