TE Connectivity AMP Connectors 767025-2 Equivalent & Substitute Parts

Part Overview

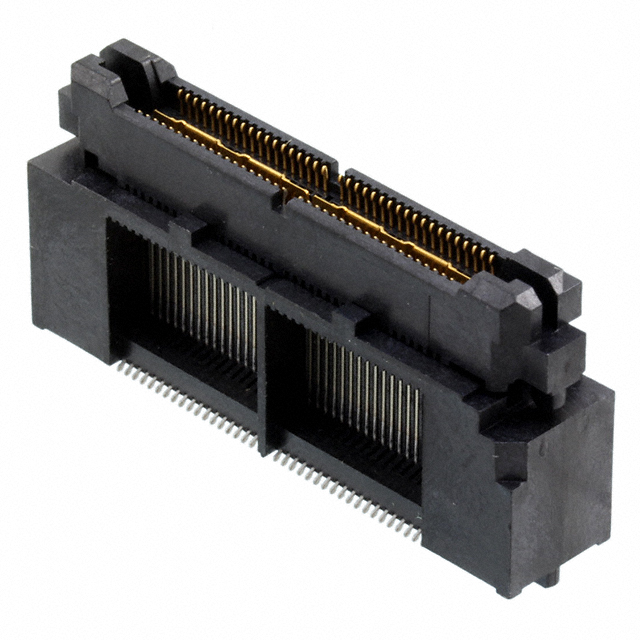

The TE Connectivity AMP Connectors 767025-2 is a 76-position rectangular connector plug with outer shroud contacts designed for surface mount applications. This MICTOR series connector features gold-plated contacts and is classified as an active product. The connector is specified for applications requiring high-density interconnection with controlled pitch and mechanical stability through board guide and ground bus features.

Identification of equivalent and substitute parts is necessary to address inventory availability, compliance requirements, and manufacturing continuity across product lifecycles.

Substiute Parts

767025-2

TE Connectivity AMP ConnectorsIn Stock: 1018767025-2 Datasheet

Current PartRFQ

5767025-2

TE Connectivity AMP ConnectorsIn Stock: 12125767025-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of rectangular connectors in the MICTOR series is determined by strict equivalence across the following critical parameters:

• Connector Type and Series: Both parts must be MICTOR series plugs with outer shroud contacts
• Position Count and Pitch: 76 positions at 0.025" (0.64mm) pitch ensures mechanical and electrical compatibility with mating receptacles
• Row Configuration: 2-row arrangement maintains contact density and board layout compatibility
• Mounting Technology: Surface mount designation confirms PCB assembly process compatibility
• Contact Specifications: Gold finish at 30.0µin (0.76µm) thickness ensures electrical performance and environmental resistance
• Mechanical Dimensions: Height above board (0.699" / 17.75mm) and mated stacking heights (17.96mm, 27mm) determine clearance and assembly compatibility
• Functional Features: Board guide and ground bus plane presence are required for mechanical stability and signal integrity

The substitute part 5767025-2 maintains full equivalence across all these parameters, with the primary distinction being compliance certification status.

Parameter Comparison

Engineering Selection Recommendations

767025-2 is suitable for applications where RoHS non-compliance is acceptable or where legacy system compatibility is required. This part maintains active product status and full electrical and mechanical specifications.

5767025-2 is the preferred substitute for new designs and applications subject to ROHS3 compliance requirements. This part provides identical electrical and mechanical performance while meeting current environmental and regulatory standards. The ROHS3 compliance status makes this part suitable for applications in regulated markets and industries with mandatory RoHS requirements.

Both parts carry identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications, indicating equivalent export control and tariff treatment. Selection between these parts should be based on the specific compliance requirements of the target application and regulatory jurisdiction.

Frequently Asked Questions (FAQ)

Q: Are 767025-2 and 5767025-2 mechanically interchangeable?

A: Yes. Both parts are identical in connector type, position count, pitch, row configuration, mounting type, and all mechanical dimensions including height above board and mated stacking heights. They are fully interchangeable from a mechanical assembly perspective.

Q: Are 767025-2 and 5767025-2 electrically interchangeable?

A: Yes. Both parts feature identical contact specifications, including gold finish at 30.0µin (0.76µm) thickness, and both include board guide and ground bus plane features. Electrical performance and signal integrity characteristics are equivalent.

Q: What is the primary difference between these two parts?

A: The primary difference is RoHS compliance status. The 767025-2 is RoHS non-compliant, while the 5767025-2 is ROHS3 compliant. All other specifications, including electrical, mechanical, and dimensional parameters, are identical.

Q: Can I use 5767025-2 as a direct replacement for 767025-2 in existing designs?

A: Yes. The 5767025-2 is a direct substitute with identical form, fit, and function. No design modifications are required for substitution.

Q: Does RoHS compliance affect the connector's performance?

A: No. RoHS compliance relates to material composition and environmental regulations, not electrical or mechanical performance. Both parts deliver identical performance characteristics.

Q: Are there any packaging differences between these parts?

A: Both parts are supplied in tube packaging. No packaging differences exist between the two part numbers.

Q: What is the significance of the base product numbers 767025 and 5767025?

A: The base product numbers identify the core connector design. The suffix "-2" designates the specific variant within that design family. Both base numbers represent the same MICTOR series connector design with identical specifications.

Q: Which part should I specify for new product designs?

A: For new designs, specify 5767025-2 to ensure compliance with current ROHS3 requirements and regulatory standards applicable to most markets.
