TE Connectivity AMP Connectors 767007-9 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 767007-9 is a 76 Position Connector Plug with outer shroud contacts designed for surface mount applications. This rectangular connector operates within the MICTOR series and features gold-plated contacts with a 0.025" (0.64mm) pitch configuration across 2 rows.

The 767007-9 is classified as obsolete. Identifying equivalent and substitute parts is necessary to support ongoing production requirements, maintenance operations, and design continuity where this connector type is specified in existing systems or legacy applications.

Substiute Parts

767007-9

TE Connectivity AMP ConnectorsIn Stock: 953767007-9 Datasheet

Current PartRFQ

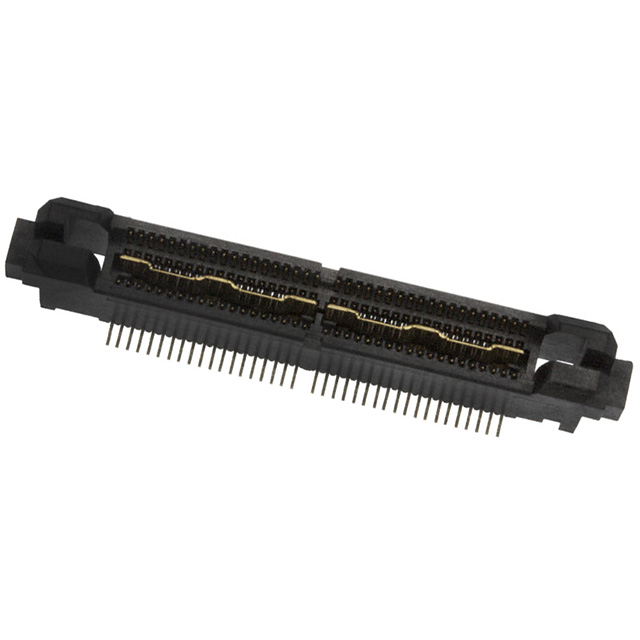

5767007-9

TE Connectivity AMP ConnectorsIn Stock: 13145767007-9 Datasheet

DirectRFQ

5767117-2

TE Connectivity AMP ConnectorsIn Stock: 11925767117-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 767007-9 are determined by strict equivalence across all critical electrical and mechanical parameters. The following parameters establish substitution eligibility:

• Connector Type: Plug, Outer Shroud Contacts
• Number of Positions: 76
• Pitch: 0.025" (0.64mm)
• Number of Rows: 2
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Contact Finish Thickness: 30.0µin (0.76µm)
• Features: Board Guide, Ground Bus (Plane)
• Mated Stacking Heights: 6.6mm, 15.62mm
• Height Above Board: 0.251" (6.38mm)
• Series: MICTOR
• Moisture Sensitivity Level: 1 (Unlimited)

All identified substitute parts match these parameters exactly. Substitution is based on functional and dimensional compatibility within the MICTOR rectangular connector family.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 5767007-9

The 5767007-9 is the recommended substitute for the obsolete 767007-9. This part maintains complete electrical and mechanical parameter equivalence while offering the following advantages:

• Active product status with current manufacturing support
• RoHS Compliant certification
• Higher inventory availability (1301 Pcs vs. 926 Pcs for the main part)
• Tube packaging for standard component handling

Secondary Substitute: 5767117-2

The 5767117-2 is a parametric equivalent that matches all critical electrical and mechanical specifications. Selection of this part is appropriate where:

• Inventory constraints on the primary substitute exist
• Design flexibility permits non-RoHS compliant components
• The application does not require RoHS certification

Both substitute parts are manufactured by TE Connectivity AMP Connectors within the MICTOR series and provide direct functional replacement for the 767007-9 in surface mount applications requiring 76-position rectangular connectors with gold-plated contacts.

Frequently Asked Questions (FAQ)

Q: Can the 5767007-9 be used as a direct replacement for the 767007-9?

A: Yes. The 5767007-9 is electrically and mechanically equivalent to the 767007-9 across all specified parameters including connector type, position count, pitch, mounting configuration, contact finish, and stacking heights. The primary difference is product status (active vs. obsolete) and RoHS compliance.

Q: What is the difference between the 5767007-9 and 5767117-2?

A: Both parts are parametric equivalents with identical electrical and mechanical specifications. The distinction lies in RoHS compliance status: the 5767007-9 is RoHS Compliant, while the 5767117-2 is RoHS non-compliant. Both are active products with comparable inventory levels.

Q: Are there packaging differences between the main part and substitutes?

A: The main part 767007-9 has unspecified packaging, while both substitute parts (5767007-9 and 5767117-2) are supplied in Tube packaging. Tube packaging is standard for surface mount rectangular connectors and does not affect electrical or mechanical performance.

Q: Does the MSL rating affect substitution eligibility?

A: No. All three parts share an MSL rating of 1 (Unlimited), indicating no moisture sensitivity constraints. This parameter does not differentiate the parts and does not restrict substitution.

Q: Which substitute should be selected for new designs?

A: For new designs, the 5767007-9 is the appropriate selection due to its active product status and RoHS Compliant certification. This ensures long-term supply availability and compliance with current regulatory requirements.

Q: Can these connectors be used interchangeably in existing assemblies?

A: Yes. The 5767007-9 and 5767117-2 are mechanically and electrically interchangeable with the 767007-9 in all surface mount applications. The 76-position configuration, 0.025" pitch, gold contact finish, and board guide features are identical across all three parts.

Q: What is the significance of the MICTOR series designation?

A: MICTOR is the product series classification for these rectangular connectors. All three parts belong to the same MICTOR series, confirming their compatibility and interchangeability within applications designed for MICTOR connectors.
