TE Connectivity AMP Connectors 767006-4 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 767006-4 is a 152-position rectangular connector plug with outer shroud contacts designed for board edge, straddle mount applications. This connector is part of the MICTOR series and features gold-plated contacts with a 0.025" (0.64mm) pitch configuration across 2 rows.

The 767006-4 is classified as obsolete. Locating equivalent and substitute parts is necessary to support legacy system maintenance, repair, and component replacement in applications where this connector is currently deployed.

Key Parameters

Parameter	Specification
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	152
Pitch	0.025" (0.64mm)
Number of Rows	2
Mounting Type	Board Edge, Straddle Mount
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Height Above Board	0.251" (6.38mm)
Features	Board Guide, Ground Bus (Plane)
Series	MICTOR
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of rectangular connectors in the MICTOR series is determined by strict equivalence across the following critical parameters:

Connector Type: Plug configuration with outer shroud contacts
Position Count: 152 positions
Pitch Specification: 0.025" (0.64mm) contact spacing
Row Configuration: 2-row arrangement
Mounting Interface: Board edge, straddle mount geometry
Contact Material and Finish: Gold plating at 30.0µin (0.76µm) thickness
Physical Height: 0.251" (6.38mm) above board surface
Functional Features: Board guide and ground bus plane integration

Parts meeting all these parameters are electrically and mechanically interchangeable within the same application circuit board design.

Parameter Comparison

Parameter	767006-4 (Obsolete)	5767006-4 (Active)	Compatibility
Connector Type	Plug, Outer Shroud Contacts	Plug, Outer Shroud Contacts	Identical
Number of Positions	152	152	Identical
Pitch	0.025" (0.64mm)	0.025" (0.64mm)	Identical
Number of Rows	2	2	Identical
Mounting Type	Board Edge, Straddle Mount	Board Edge, Straddle Mount	Identical
Contact Finish	Gold	Gold	Identical
Contact Finish Thickness	30.0µin (0.76µm)	30.0µin (0.76µm)	Identical
Height Above Board	0.251" (6.38mm)	0.251" (6.38mm)	Identical
Features	Board Guide, Ground Bus (Plane)	Board Guide, Ground Bus (Plane)	Identical
Series	MICTOR	MICTOR	Identical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	Identical
Product Status	Obsolete	Active	Substitute is actively manufactured
RoHS Status	RoHS non-compliant	ROHS3 Compliant	Substitute meets current RoHS3 requirements
REACH Status	REACH Affected	REACH Unaffected	Substitute has improved regulatory status

Engineering Selection Recommendations

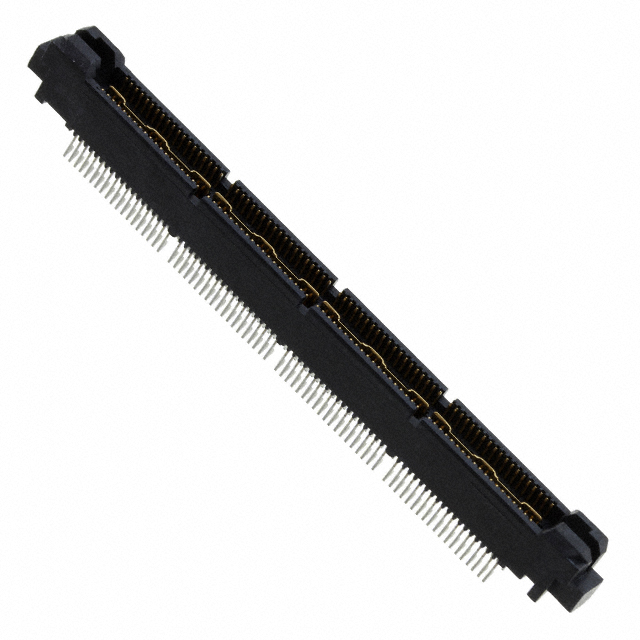

The 5767006-4 is the direct active substitute for the obsolete 767006-4. Both parts are manufactured by TE Connectivity AMP Connectors and share identical electrical and mechanical specifications across all critical parameters.

Product Status Consideration: The 767006-4 is obsolete, while the 5767006-4 is actively manufactured and supported. Selection of the 5767006-4 ensures continued component availability and supply chain reliability.

Regulatory Compliance: The 5767006-4 is ROHS3 compliant and REACH unaffected, meeting current regulatory requirements for new equipment designs and legacy system repairs. The original 767006-4 is RoHS non-compliant and REACH affected, which may restrict its use in certain applications or regions.

Functional Equivalence: All electrical and mechanical parameters are identical between the two parts. The 5767006-4 is a direct form, fit, and function replacement suitable for board-level substitution without design modification.

Frequently Asked Questions (FAQ)

Q: Are the 767006-4 and 5767006-4 electrically interchangeable?

A: Yes. Both parts are 152-position MICTOR series plugs with identical contact pitch (0.025"), row configuration (2 rows), contact finish (gold at 30.0µin thickness), and electrical characteristics. They are electrically interchangeable.

Q: Are the 767006-4 and 5767006-4 mechanically interchangeable?

A: Yes. Both parts have identical mounting type (board edge, straddle mount), height above board (0.251"), board guide features, and ground bus plane integration. They are mechanically interchangeable without PCB redesign.

Q: What is the difference between the 767006-4 and 5767006-4?

A: The primary differences are product status and regulatory compliance. The 767006-4 is obsolete and RoHS non-compliant. The 5767006-4 is actively manufactured, ROHS3 compliant, and REACH unaffected. All electrical and mechanical specifications are identical.

Q: Can I use the 5767006-4 as a replacement for the 767006-4 in existing equipment?

A: Yes. The 5767006-4 is a direct substitute with identical form, fit, and function. It is suitable for repair and maintenance of legacy systems using the 767006-4.

Q: What packaging is available for the 5767006-4?

A: The 5767006-4 is supplied in tube packaging.

Q: Are there any compliance advantages to using the 5767006-4?

A: Yes. The 5767006-4 is ROHS3 compliant and REACH unaffected, whereas the 767006-4 is RoHS non-compliant and REACH affected. The 5767006-4 meets current regulatory requirements for equipment sold in regions with RoHS and REACH restrictions.

Q: What is the MSL rating for both parts?

A: Both the 767006-4 and 5767006-4 have an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
