TE Connectivity AMP Connectors 767006-1 Equivalent & Substitute Parts

Part Overview

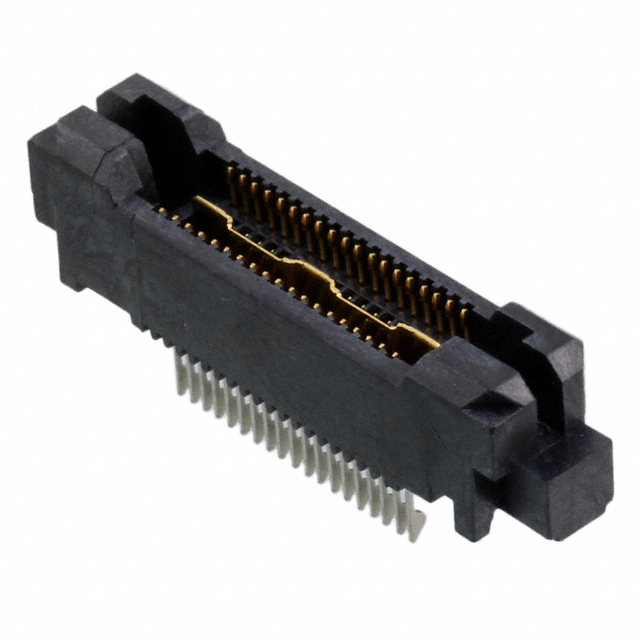

The TE Connectivity AMP Connectors 767006-1 is a 38-position rectangular connector plug with outer shroud contacts designed for board edge, straddle mount applications. This connector is part of the MICTOR series and features gold-plated contacts with a 0.025" (0.64mm) pitch configuration across 2 rows.

The 767006-1 is classified as obsolete. Locating equivalent and substitute parts is necessary to support legacy system maintenance, repair, and component replacement in applications where this connector is currently deployed.

Substiute Parts

767006-1

TE Connectivity AMP ConnectorsIn Stock: 683767006-1 Datasheet

Current PartRFQ

5767006-1

TE Connectivity AMP ConnectorsIn Stock: 18235767006-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 767006-1 is determined by strict equivalence across the following critical parameters:

• Connector Type: Plug with outer shroud contacts
• Position Count: 38 positions
• Pitch Configuration: 0.025" (0.64mm)
• Row Configuration: 2 rows
• Mounting Method: Board edge, straddle mount
• Contact Material and Finish: Gold plating at 30.0µin (0.76µm) thickness
• Physical Height: 0.251" (6.38mm) above board
• Functional Features: Board guide and ground bus (plane)
• Series Designation: MICTOR

The substitute part 5767006-1 maintains identical electrical and mechanical specifications across all these parameters, ensuring direct functional compatibility in applications currently using the 767006-1.

Parameter Comparison

Engineering Selection Recommendations

The 5767006-1 serves as the direct substitute for the obsolete 767006-1. Both parts are manufactured by TE Connectivity AMP Connectors and maintain identical electrical and mechanical specifications across all critical parameters.

The 5767006-1 offers the following advantages:

• Active Product Status: The substitute is currently in active production, ensuring long-term availability and supply chain continuity.
• Regulatory Compliance: The 5767006-1 is ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements. The original 767006-1 is RoHS non-compliant and REACH affected.
• Inventory Availability: The 5767006-1 has higher inventory levels (1780 pcs) compared to the 767006-1 (669 pcs), supporting immediate procurement needs.
• Packaging: The 5767006-1 is supplied in tube packaging, suitable for automated assembly and component handling.

Selection of the 5767006-1 is appropriate for new designs, system upgrades, and component replacement applications where regulatory compliance and supply chain stability are required.

Frequently Asked Questions (FAQ)

Q: Are the 767006-1 and 5767006-1 electrically and mechanically interchangeable?

A: Yes. Both connectors maintain identical specifications for connector type, position count, pitch, row configuration, mounting method, contact finish, and physical dimensions. They are direct functional equivalents.

Q: What is the primary difference between these two parts?

A: The 767006-1 is obsolete and RoHS non-compliant, while the 5767006-1 is an active product that is ROHS3 compliant and REACH unaffected. The 5767006-1 is the current production equivalent.

Q: Can the 5767006-1 be used as a replacement in existing applications using the 767006-1?

A: Yes. The 5767006-1 is a direct substitute with identical electrical and mechanical parameters. It is suitable for replacement in legacy systems and new applications.

Q: What packaging is available for the 5767006-1?

A: The 5767006-1 is supplied in tube packaging.

Q: Are there any compliance differences between the two parts?

A: Yes. The 767006-1 is RoHS non-compliant and REACH affected. The 5767006-1 is ROHS3 compliant and REACH unaffected, making it suitable for applications subject to current environmental regulations.

Q: What is the contact finish specification for both connectors?

A: Both the 767006-1 and 5767006-1 feature gold-plated contacts with a thickness of 30.0µin (0.76µm).

Q: What is the pitch configuration of these connectors?

A: Both connectors have a 0.025" (0.64mm) pitch across 2 rows, accommodating 38 total positions.
