Amphenol ICC 76385-417 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76385-417 is a shrouded rectangular connector header designed for through-hole mounting applications. This component features a 34-position, 2-row configuration with 0.100" (2.54mm) pitch spacing, suitable for board-to-cable/wire interconnections. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure component availability for new production runs and field replacements.

Substiute Parts

76385-417

Amphenol ICC (FCI)In Stock: 69376385-417 Datasheet

Current PartRFQ

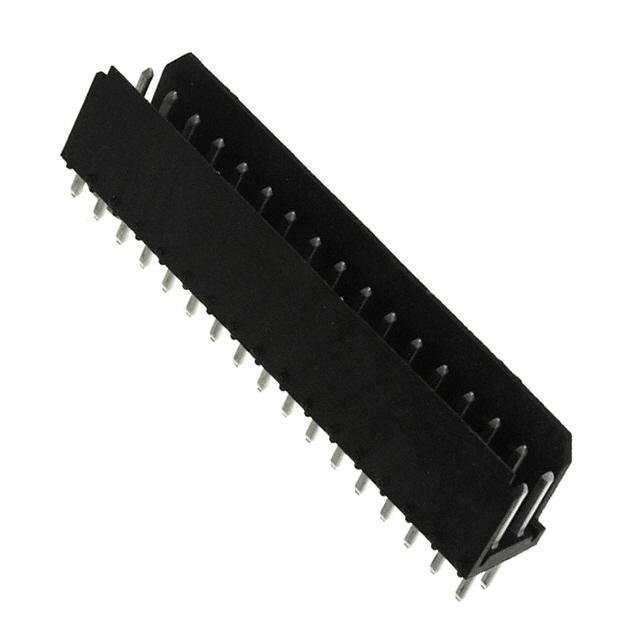

76385-417LF

Amphenol ICC (FCI)In Stock: 89976385-417LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The 76385-417LF serves as a direct functional equivalent to the 76385-417. Substitution eligibility is determined by the following critical parameters that must remain constant:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (34)
• Number of rows (2)
• Pitch spacing (0.100" / 2.54mm)
• Row spacing (0.100" / 2.54mm)
• Mounting type (Through Hole)
• Shrouding configuration (Shrouded - 2 Wall)
• Termination method (Solder)
• Contact shape (Square)
• Insulation material (Thermoplastic, Glass Filled)
• Flammability rating (UL94 V-0)
• Fastening type (Friction Lock)

The 76385-417LF maintains all these critical parameters, establishing it as a valid substitute. Differences in contact finish composition, finish thickness, insulation color, and compliance status do not affect mechanical or electrical interchangeability for standard through-hole applications.

Parameter Comparison

Engineering Selection Recommendations

The 76385-417LF is the appropriate substitute for the obsolete 76385-417 based on the following factors:

Product Status: The 76385-417LF maintains active production status, ensuring long-term availability and supply chain continuity. The original 76385-417 is classified as obsolete, making the LF variant the designated replacement.

Compliance and Certifications: The 76385-417LF achieves RoHS compliance, meeting current regulatory requirements for new designs and manufacturing. The original part is RoHS non-compliant. Both parts maintain UL94 V-0 flammability certification and share identical mechanical and electrical interface specifications.

Mechanical and Electrical Interchangeability: All critical dimensional parameters, contact configurations, and mounting specifications are identical between the two parts. The 76385-417LF provides specified operating temperature range (-40°C ~ 125°C) and current rating (3A), whereas the original part does not document these parameters.

Contact Finish Differences: The 76385-417LF uses pure tin plating (2.00µm thickness) on both mating and post contacts, replacing the tin-lead finish of the original part. This change aligns with RoHS compliance requirements and does not affect mechanical interchangeability in standard through-hole applications.

For new designs and production applications, the 76385-417LF is the specified equivalent. For legacy system maintenance where the original 76385-417 is currently installed, the 76385-417LF provides direct functional replacement without circuit redesign.

Frequently Asked Questions (FAQ)

Q: Can the 76385-417LF be used as a direct replacement for the 76385-417 in existing assemblies?

A: Yes. The 76385-417LF maintains identical mechanical dimensions, contact pitch, row spacing, mounting type, and electrical interface specifications. No PCB redesign or connector housing modifications are required.

Q: What is the significance of the "LF" suffix in the part number 76385-417LF?

A: The "LF" designation indicates lead-free construction, reflecting the transition from tin-lead plating to pure tin plating. This change ensures compliance with RoHS regulations while maintaining functional equivalence.

Q: Are there any thermal or electrical performance differences between these parts?

A: The 76385-417LF provides documented operating temperature range (-40°C ~ 125°C) and current rating (3A). The original 76385-417 does not specify these parameters. Both parts are constructed from identical materials and maintain the same contact geometry, indicating equivalent thermal and electrical performance within the specified operating range.

Q: What packaging options are available for the 76385-417LF?

A: The 76385-417LF is supplied in tube packaging. Verify packaging requirements for your procurement process.

Q: Does the change from tin-lead to tin plating affect solder joint reliability?

A: Both contact finishes are suitable for solder termination. The tin finish on the 76385-417LF is compatible with standard lead-free and lead-containing solder processes used in through-hole assembly.

Q: Are both parts certified to the same flammability standards?

A: Yes. Both the 76385-417 and 76385-417LF maintain UL94 V-0 material flammability certification.

Q: What is the inventory status for these parts?

A: The 76385-417 (obsolete) has 667 pieces in stock. The 76385-417LF (active) has 793 pieces in stock. For new production, source the 76385-417LF to ensure continued availability.
