Amphenol ICC 76385-405 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76385-405 is a vertical rectangular connector header designed for through-hole mounting applications. This component features a 10-position, 2-row configuration with 0.100" (2.54mm) pitch spacing, suitable for board-to-cable/wire connections. The part is classified as obsolete, necessitating identification of active equivalent components for ongoing design and procurement requirements. The 76385-405LF serves as the direct active substitute, maintaining core electrical and mechanical compatibility while offering improved compliance status.

Substiute Parts

76385-405

Amphenol ICC (FCI)In Stock: 111176385-405 Datasheet

Current PartRFQ

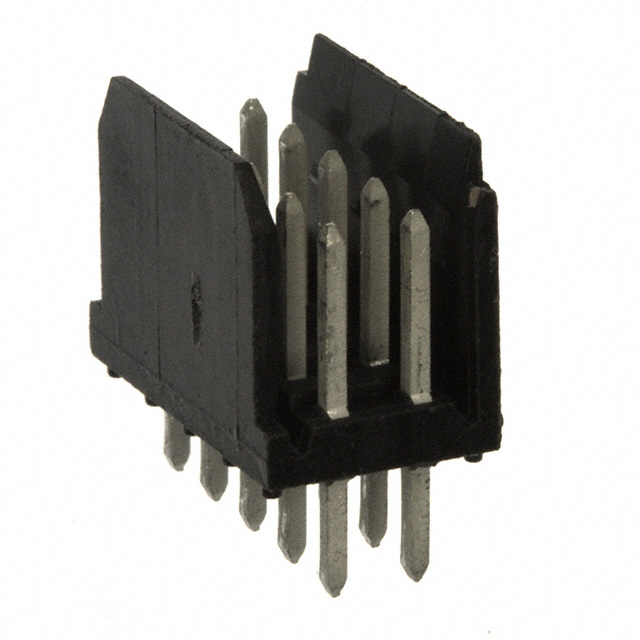

76385-405LF

Amphenol ICC (FCI)In Stock: 226276385-405LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The 76385-405LF qualifies as a direct substitute for the 76385-405 based on the following critical parameters:

• Connector Configuration: Both parts maintain identical 10-position, 2-row header architecture with 0.100" (2.54mm) pitch spacing
• Mechanical Compatibility: Matching mounting type (through hole), shrouding design (shrouded - 2 wall), contact shape (square), and overall contact dimensions
• Electrical Interface: Identical contact type (male pin), termination method (solder), and fastening mechanism (friction lock)
• Physical Dimensions: Equivalent contact lengths (mating: 0.197", post: 0.134", overall: 0.411") and insulation height (0.368")
• Material Specification: Both utilize copper alloy contacts with thermoplastic, glass-filled insulation rated UL94 V-0
• Series Designation: Both components belong to the Dubox™ series

The primary differences between these parts relate to product status (obsolete vs. active), contact finish specifications, compliance certifications, and packaging format, which do not affect functional interchangeability in equivalent applications.

Parameter Comparison

Engineering Selection Recommendations

The 76385-405LF is the appropriate selection for new designs and procurement activities. The main part (76385-405) is classified as obsolete, making the 76385-405LF the active equivalent within the Amphenol ICC Dubox™ series.

Key compliance advantages of the 76385-405LF include RoHS compliance status and REACH affected designation, which align with current regulatory requirements for electronic components in most markets. The substitute part maintains full mechanical and electrical compatibility with the original specification while offering improved environmental compliance.

The contact finish transition from Tin-Lead to Tin reflects industry-wide compliance with lead-free manufacturing standards. Both parts maintain UL94 V-0 flammability certification and identical moisture sensitivity levels, ensuring equivalent performance in standard operating environments.
