Amphenol ICC 76385-404 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76385-404 is a shrouded rectangular connector header designed for through-hole mounting in board-to-cable/wire applications. This 8-position, 2-row connector operates at 0.100" (2.54mm) pitch and features tin-lead plated contacts with a friction lock fastening mechanism. The part is classified as obsolete, necessitating identification of active equivalent components for new designs and ongoing production requirements.

Substiute Parts

76385-404

Amphenol ICC (FCI)In Stock: 82576385-404 Datasheet

Current PartRFQ

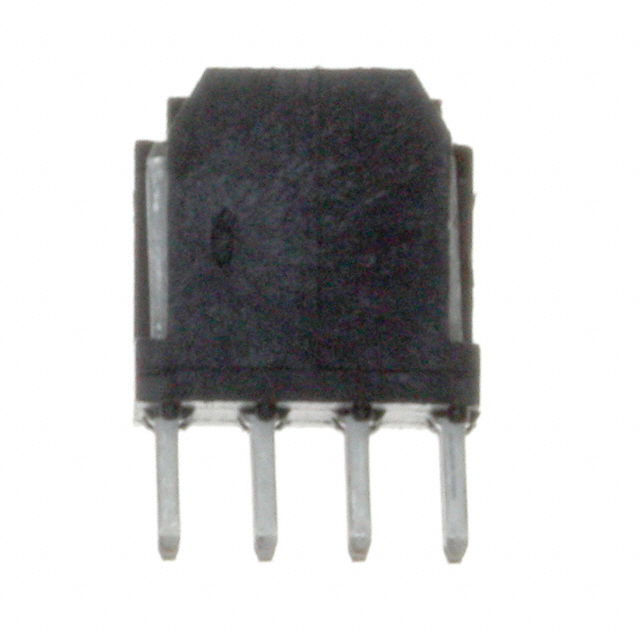

76385-404LF

Amphenol ICC (FCI)In Stock: 135976385-404LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The 76385-404LF qualifies as a direct substitute based on identical mechanical and electrical parameters: connector type, contact configuration, pitch spacing, mounting method, shrouding design, and termination approach remain unchanged. Both parts belong to the Amphenol ICC Dubox™ series and maintain the same 8-position, 2-row header architecture with 0.100" (2.54mm) pitch and through-hole solder termination.

The substitution is valid across the following critical parameters:

• Connector Type: Header
• Number of Positions: 8
• Number of Rows: 2
• Pitch - Mating: 0.100" (2.54mm)
• Row Spacing - Mating: 0.100" (2.54mm)
• Mounting Type: Through Hole
• Shrouding: Shrouded - 2 Wall
• Termination: Solder
• Fastening Type: Friction Lock
• Contact Shape: Square
• Insulation Material: Thermoplastic, Glass Filled
• Material Flammability Rating: UL94 V-0

Parameter Comparison

Engineering Selection Recommendations

The 76385-404LF is the active production equivalent of the obsolete 76385-404. Both components maintain identical mechanical and electrical compatibility for board-to-cable/wire connector applications requiring 8-position, 2-row through-hole headers at 0.100" (2.54mm) pitch.

For new designs and ongoing production, the 76385-404LF is the appropriate selection due to its active product status and continued availability. The substitute part carries RoHS compliance certification, whereas the original 76385-404 is RoHS non-compliant. The 76385-404LF is REACH Affected, compared to the original part's REACH Unaffected status. Both components maintain identical moisture sensitivity levels and flammability ratings.

The contact finish differs between the two parts: the original uses tin-lead plating, while the substitute uses tin plating. This change reflects industry-wide transition toward lead-free manufacturing standards. Both finishes provide equivalent electrical and mechanical performance for the specified connector application.

Frequently Asked Questions (FAQ)

Q: Can the 76385-404LF directly replace the 76385-404 in existing designs?

A: Yes. Both parts share identical mechanical dimensions, pitch spacing, mounting configuration, and contact geometry. The 8-position, 2-row header with 0.100" (2.54mm) pitch and through-hole solder termination remains unchanged. PCB layouts and mating connector specifications require no modification.

Q: What is the primary difference between these two parts?

A: The 76385-404 is obsolete, while the 76385-404LF is an active production part. The substitute features tin plating instead of tin-lead plating and carries RoHS compliance certification. Mechanical and electrical performance characteristics are equivalent.

Q: Are there any compliance considerations when switching from 76385-404 to 76385-404LF?

A: The 76385-404LF is RoHS compliant, whereas the original 76385-404 is RoHS non-compliant. For applications subject to RoHS regulations, the substitute part satisfies compliance requirements. The 76385-404LF is REACH Affected, while the original is REACH Unaffected; compliance obligations depend on specific application and regional requirements.

Q: Does the change from tin-lead to tin plating affect performance?

A: No. Both contact finishes provide equivalent electrical conductivity and mechanical durability for this connector application. The transition to tin plating reflects industry-standard lead-free manufacturing practices.

Q: What packaging options are available?

A: The 76385-404LF is supplied in bulk packaging. The original 76385-404 packaging specification is not provided in the technical data.

Q: Are the operating temperature and current ratings identical?

A: The 76385-404LF specifies an operating temperature range of -40°C to 125°C and a current rating of 3A. The original 76385-404 does not provide these specifications in the available technical data. For applications requiring confirmed operating parameters, the 76385-404LF documentation provides explicit ratings.
