Amphenol ICC 76385-308 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76385-308 is a shrouded rectangular connector header designed for through-hole mounting in board-to-cable/wire applications. This 16-position, 2-row connector operates at 0.100" (2.54mm) pitch and features solder termination with friction lock fastening. The part is classified as obsolete, making identification of suitable substitutes necessary for ongoing design support and component procurement.

Substiute Parts

76385-308

Amphenol ICC (FCI)In Stock: 105276385-308 Datasheet

Current PartRFQ

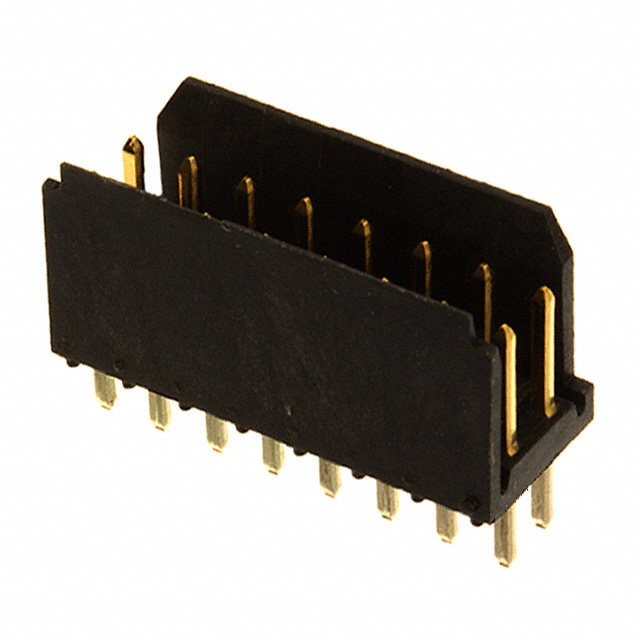

76385-308LF

Amphenol ICC (FCI)In Stock: 122876385-308LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 76385-308 is based on electrical and mechanical compatibility across the following critical parameters:

• Connector Configuration: 16-position, 2-row header with 0.100" (2.54mm) pitch and row spacing
• Physical Interface: Through-hole mounting with shrouded 2-wall design and square contact geometry
• Termination Method: Solder termination with friction lock fastening
• Material Specification: Thermoplastic, glass-filled insulation rated UL94 V-0
• Series Compatibility: Dubox™ series designation

The substitute part 76385-308LF maintains identical mechanical and electrical interfaces while offering improved compliance status and enhanced contact finish specifications.

Parameter Comparison

Engineering Selection Recommendations

The 76385-308LF is the direct substitute for the obsolete 76385-308. Both parts maintain identical mechanical and electrical interfaces, ensuring pin-for-pin compatibility in existing designs.

Key Advantages of 76385-308LF:

• Active product status ensures ongoing availability and manufacturing support
• RoHS Compliant designation meets current regulatory requirements
• REACH Affected status indicates compliance with chemical substance regulations
• Enhanced contact finish with GXT™ technology on mating surfaces
• Tin finish on posts eliminates lead content, supporting environmental compliance
• Operating temperature range specified as -40°C ~ 125°C
• Current rating of 3A per contact

Compliance Considerations:

The 76385-308 is RoHS non-compliant and REACH Unaffected, reflecting its obsolete status. The 76385-308LF addresses these compliance gaps while maintaining full mechanical and electrical compatibility. Both parts carry identical flammability ratings (UL94 V-0) and moisture sensitivity levels (MSL 1).

Frequently Asked Questions (FAQ)

Q: Are the 76385-308 and 76385-308LF mechanically interchangeable?

A: Yes. Both parts share identical connector configurations, mounting interfaces, and physical dimensions. The 16-position, 2-row header with 0.100" (2.54mm) pitch and shrouded 2-wall design ensures direct substitution in PCB layouts and mating connector applications.

Q: What is the difference between the contact finishes?

A: The 76385-308 uses Tin-Lead finish on posts, while the 76385-308LF uses Tin finish. Both maintain identical gold plating on mating surfaces at 30.0µin (0.76µm) thickness. The lead-free post finish on the 76385-308LF supports RoHS compliance requirements.

Q: Does the GXT™ contact finish affect electrical performance?

A: The GXT™ enhancement on the 76385-308LF mating surface is a proprietary Amphenol ICC technology applied to the gold plating. It maintains the specified 30.0µin (0.76µm) thickness and does not alter electrical characteristics or contact resistance specifications.

Q: What packaging is available for the 76385-308LF?

A: The 76385-308LF is supplied in Tube packaging, with 1177 pieces available in new original stock. The 76385-308 was supplied without specified packaging designation.

Q: Are there any temperature or current rating differences?

A: The 76385-308LF specifies an operating temperature range of -40°C ~ 125°C and a current rating of 3A per contact. The 76385-308 does not provide these specifications in its documentation, reflecting its obsolete status.

Q: Can I use the 76385-308LF in legacy designs originally specified for the 76385-308?

A: Yes. The 76385-308LF is a direct functional equivalent with improved compliance status. No design modifications are required for substitution in existing applications.
