Amphenol ICC 76385-306 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76385-306 is a shrouded rectangular connector header designed for through-hole mounting in board-to-cable/wire applications. This 12-position, 2-row connector operates at 0.100" (2.54mm) pitch and features solder termination with friction lock fastening. The part is classified as obsolete, making identification of suitable substitutes necessary for ongoing design support and component procurement.

Substiute Parts

76385-306

Amphenol ICC (FCI)In Stock: 88076385-306 Datasheet

Current PartRFQ

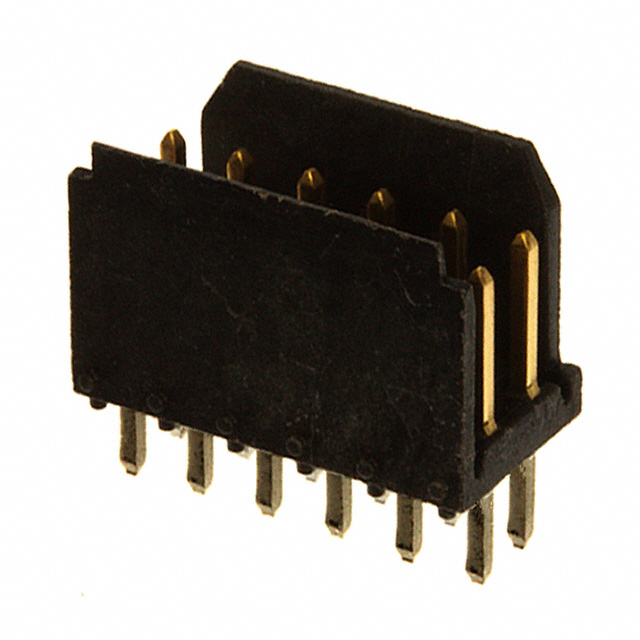

76385-306LF

Amphenol ICC (FCI)In Stock: 143876385-306LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the 76385-306 is determined by strict equivalence across the following critical parameters:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions and rows (12 positions, 2 rows)
• Pitch specifications (0.100" mating pitch, 0.100" row spacing)
• Mounting method (Through Hole)
• Shrouding configuration (Shrouded - 2 Wall)
• Termination method (Solder)
• Fastening mechanism (Friction Lock)
• Contact shape (Square)
• Insulation material class (Thermoplastic, Glass Filled)
• Flammability rating (UL94 V-0)

The 76385-306LF qualifies as a direct substitute based on full alignment with these parameters. The primary distinction lies in product status (active vs. obsolete) and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The 76385-306LF serves as the direct functional equivalent to the obsolete 76385-306. Both parts maintain identical mechanical and electrical interface specifications, ensuring pin-for-pin compatibility in board-level applications.

Selection between these parts is determined by regulatory and compliance requirements:

The 76385-306LF is the preferred choice for new designs and ongoing procurement due to its active product status and RoHS compliance certification. This part satisfies modern regulatory frameworks and ensures long-term component availability.

The 76385-306 remains suitable only for legacy system maintenance where existing inventory is available and RoHS non-compliance does not conflict with application requirements or regional regulations.

Frequently Asked Questions (FAQ)

Q: Are the 76385-306 and 76385-306LF mechanically interchangeable?

A: Yes. Both parts share identical mechanical dimensions, mounting footprints, and contact configurations. Direct substitution is possible without PCB redesign.

Q: What is the significance of the "LF" suffix in the 76385-306LF part number?

A: The "LF" designation indicates lead-free compliance, reflecting the RoHS-compliant formulation of the contact finish and solder termination materials.

Q: Can the 76385-306 be used in applications requiring RoHS compliance?

A: No. The 76385-306 is explicitly RoHS non-compliant. Applications subject to RoHS regulations must use the 76385-306LF.

Q: What are the differences in contact finish between these parts?

A: The 76385-306 features tin-lead post finish (150.0µin thickness). The 76385-306LF uses tin post finish (78.7µin thickness) with gold mating finish enhanced by GXT™ technology. Both maintain the 30.0µin gold mating finish on the contact interface.

Q: Is the 76385-306LF available in bulk packaging?

A: Yes. The 76385-306LF is supplied in bulk packaging with 1350 pieces in current stock inventory.

Q: What operating temperature range applies to these connectors?

A: The 76385-306LF operates across -40°C to 125°C. Operating temperature specifications for the 76385-306 are not provided in the technical data.

Q: What is the current rating for these connectors?

A: The 76385-306LF is rated for 3A per contact. Current rating specifications for the 76385-306 are not provided in the technical data.
