Amphenol ICC 76385-304 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76385-304 is a shrouded rectangular connector header designed for through-hole mounting in board-to-cable/wire applications. This 8-position, 2-row connector operates at 0.100" (2.54mm) pitch and features solder termination with friction lock fastening. The part is classified as obsolete, making identification of suitable substitutes necessary for ongoing design support and component procurement.

Substiute Parts

76385-304

Amphenol ICC (FCI)In Stock: 94076385-304 Datasheet

Current PartRFQ

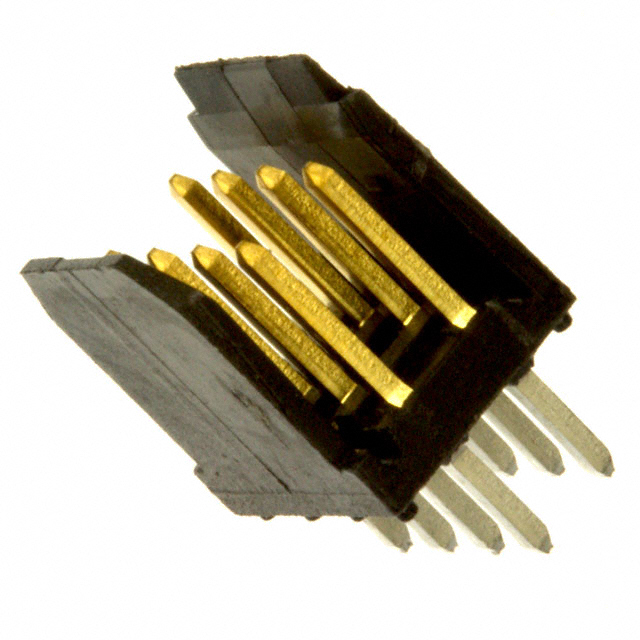

76385-304LF

Amphenol ICC (FCI)In Stock: 148676385-304LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The 76385-304LF serves as a direct substitute for the 76385-304 based on matching electrical and mechanical parameters. Substitution is valid when the following criteria are met:

• Connector type, contact type, and gender remain identical (Header, Male Pin)
• Position count and row configuration are preserved (8 positions, 2 rows)
• Mating pitch and row spacing are identical (0.100" / 2.54mm)
• Mounting method and termination type are unchanged (Through Hole, Solder)
• Shrouding configuration and fastening mechanism are the same (Shrouded - 2 Wall, Friction Lock)
• Contact geometry and insulation material specifications match (Square contacts, Thermoplastic Glass Filled)
• Flammability rating remains compliant (UL94 V-0)

The 76385-304LF differs from the main part in product status (Active vs. Obsolete), RoHS compliance status, contact finish specifications, and operating temperature range, but these differences do not affect mechanical or electrical interchangeability in applications where the core connector function is required.

Parameter Comparison

Engineering Selection Recommendations

The 76385-304LF is the direct active substitute for the obsolete 76385-304. Selection of the 76385-304LF is appropriate for new designs and component replenishment due to its active product status and RoHS compliance. Both parts maintain identical mechanical and electrical interface specifications, ensuring pin-for-pin compatibility in applications requiring 8-position, 2-row, 0.100" pitch shrouded headers with through-hole solder termination.

The transition from the 76385-304 to 76385-304LF involves a change in post contact finish from Tin-Lead to Tin, reflecting modern lead-free manufacturing standards. The 76385-304LF also incorporates GXT™ mating contact finish technology, representing an enhancement to the original specification while maintaining the same 30.0µin (0.76µm) thickness requirement.
