Amphenol ICC 76384-409 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76384-409 is a shrouded rectangular connector header designed for through-hole mounting in board-to-cable/wire applications. This 9-position, single-row header operates at 0.100" (2.54mm) pitch and features solder termination with friction lock fastening. The part is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing design support and component procurement.

Substiute Parts

76384-409

Amphenol ICC (FCI)In Stock: 88776384-409 Datasheet

Current PartRFQ

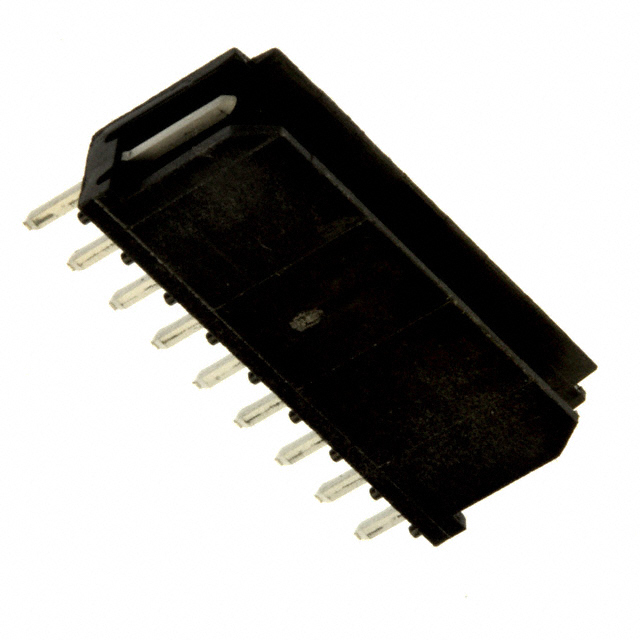

76384-409LF

Amphenol ICC (FCI)In Stock: 87876384-409LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 76384-409 is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Header with male pins
• Position Count & Row Configuration: 9 positions in single row
• Pitch Specification: 0.100" (2.54mm) mating pitch
• Mounting & Termination: Through-hole solder termination
• Mechanical Interface: Shrouded 2-wall design with friction lock fastening
• Contact Geometry: Square contact shape
• Insulation Properties: Thermoplastic, glass-filled material with UL94 V-0 rating

The substitute part 76384-409LF maintains full electrical and mechanical compatibility with the original specification while offering improved compliance status and active product availability.

Parameter Comparison

Engineering Selection Recommendations

The 76384-409LF serves as the direct functional equivalent to the obsolete 76384-409. Both parts share identical electrical and mechanical specifications within the Dubox™ series, ensuring pin-for-pin and footprint compatibility.

Compliance Considerations: The 76384-409LF offers RoHS compliance status, whereas the original 76384-409 is RoHS non-compliant. For applications subject to RoHS regulatory requirements, the 76384-409LF is the appropriate selection. The substitute part carries REACH Affected status compared to the original's REACH Unaffected designation.

Contact Finish Difference: The 76384-409LF employs pure tin plating (78.7µin / 2.00µm) on both mating and post contacts, replacing the tin-lead finish (150.0µin / 3.81µm) of the original part. This change aligns with lead-free manufacturing standards and does not affect functional compatibility for standard through-hole solder applications.

Product Availability: The 76384-409LF maintains active product status with current inventory availability, whereas the 76384-409 is classified as obsolete. For new designs and ongoing procurement, the 76384-409LF is the recommended selection.

Frequently Asked Questions (FAQ)

Q: Are the 76384-409 and 76384-409LF mechanically interchangeable?

A: Yes. Both parts maintain identical mechanical specifications including 9-position single-row configuration, 0.100" (2.54mm) pitch, shrouded 2-wall design, through-hole mounting, and friction lock fastening. PCB footprints and mating interface dimensions are equivalent.

Q: What is the significance of the "LF" designation in the 76384-409LF part number?

A: The "LF" suffix indicates lead-free construction. The 76384-409LF uses pure tin contact plating instead of the tin-lead finish found in the original 76384-409, aligning with RoHS compliance requirements.

Q: Can the 76384-409LF be used as a direct replacement in existing designs using the 76384-409?

A: Yes, the 76384-409LF is a direct functional replacement. The change from tin-lead to pure tin plating does not affect electrical performance or solder joint reliability in standard through-hole applications. Designs using the original part can transition to the 76384-409LF without modification.

Q: What is the difference in contact finish thickness between these parts?

A: The 76384-409 features 150.0µin (3.81µm) tin-lead plating, while the 76384-409LF has 78.7µin (2.00µm) pure tin plating. Both thicknesses meet industry standards for connector durability and electrical performance.

Q: Why is the 76384-409 classified as obsolete?

A: The original part's obsolete status reflects the industry-wide transition to lead-free and RoHS-compliant components. The 76384-409LF represents the current active equivalent within the Dubox™ series.

Q: Are there any temperature or current rating differences?

A: The 76384-409LF specifies an operating temperature range of -40°C to 125°C and a current rating of 3A. The original 76384-409 does not provide these specifications in the available documentation. For applications requiring defined thermal and current performance, the 76384-409LF provides explicit ratings.

Q: What packaging options are available?

A: The 76384-409LF is supplied in tube packaging. The original 76384-409 packaging specification is not documented.
