Amphenol ICC 76384-405 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76384-405 is a vertical rectangular connector header designed for through-hole mounting applications. This component features a 5-position, single-row configuration with 0.100" (2.54mm) pitch spacing and shrouded 2-wall design for board-to-cable/wire connections. The part is classified as obsolete, making identification of suitable substitutes essential for ongoing design support and component procurement.

Substiute Parts

76384-405

Amphenol ICC (FCI)In Stock: 101476384-405 Datasheet

Current PartRFQ

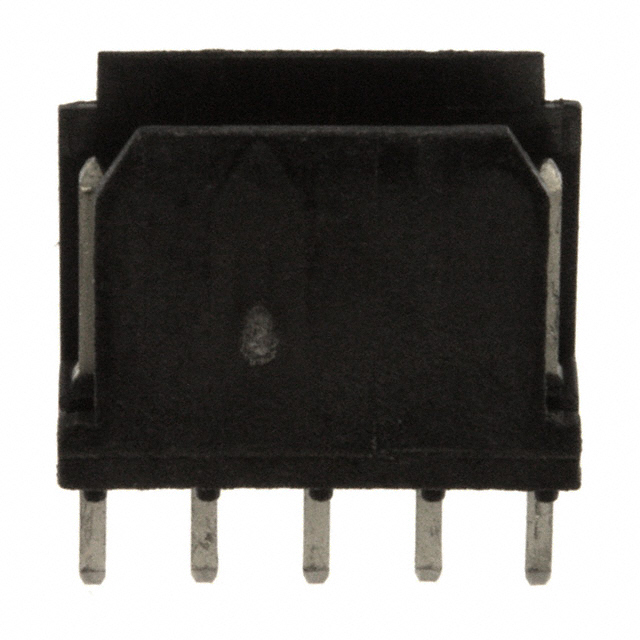

76384-405LF

Amphenol ICC (FCI)In Stock: 158176384-405LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The 76384-405LF serves as a direct substitute for the 76384-405 based on the following critical parameters that determine functional compatibility:

• Connector Type & Contact Configuration: Both parts are header connectors with male pins
• Position Count & Pitch: Identical 5-position, single-row layout with 0.100" (2.54mm) mating pitch
• Mounting & Termination: Both use through-hole mounting with solder termination
• Mechanical Dimensions: Contact lengths, insulation height, and overall geometry are identical
• Shrouding Design: Both feature shrouded 2-wall construction
• Series Compatibility: Both belong to the Dubox™ series
• Material & Flammability: Both use thermoplastic glass-filled insulation with UL94 V-0 rating

The primary distinction between these parts is product status and compliance certification, with the 76384-405LF representing the active, RoHS-compliant successor to the obsolete 76384-405.

Parameter Comparison

Engineering Selection Recommendations

The 76384-405LF is the appropriate selection for new designs and component replenishment due to its active product status and RoHS compliance certification. The obsolete 76384-405 should be replaced in procurement workflows with the 76384-405LF, which maintains identical mechanical and electrical interface specifications while meeting current regulatory requirements.

For existing assemblies using the 76384-405, the 76384-405LF provides direct functional compatibility without requiring design modifications, as all critical parameters including connector geometry, contact configuration, and mounting specifications remain unchanged.

Frequently Asked Questions (FAQ)

Q: Are the 76384-405 and 76384-405LF mechanically interchangeable?

A: Yes. Both parts share identical contact lengths, insulation height, pitch spacing, and shrouding design. They mount identically in through-hole applications and interface with the same mating connectors.

Q: What is the primary reason to substitute the 76384-405 with the 76384-405LF?

A: The 76384-405 is obsolete, while the 76384-405LF is an active product. Additionally, the 76384-405LF is RoHS compliant, meeting current regulatory standards for component procurement and assembly.

Q: Do these parts have different electrical ratings?

A: The 76384-405LF specifies an operating temperature range of -40°C to 125°C and a current rating of 3A. The 76384-405 does not provide these specifications in the available documentation.

Q: Are there packaging differences between these parts?

A: The 76384-405LF is supplied in bulk packaging, while the 76384-405 packaging specification is not provided.

Q: Can the 76384-405LF be used in applications originally designed for the 76384-405?

A: Yes. The 76384-405LF maintains full compatibility with existing designs, as all functional parameters and mechanical interfaces are identical.
