Amphenol ICC 76384-403 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76384-403 is a vertical rectangular connector header designed for through-hole mounting applications. This component features a 3-position configuration with 0.100" (2.54mm) pitch spacing, suitable for board-to-cable/wire connections. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing design support and component procurement.

Substiute Parts

76384-403

Amphenol ICC (FCI)In Stock: 78576384-403 Datasheet

Current PartRFQ

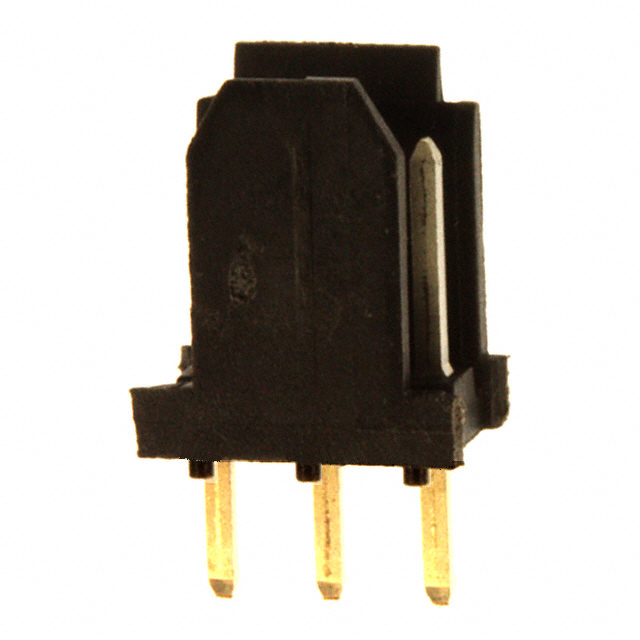

76384-403LF

Amphenol ICC (FCI)In Stock: 303676384-403LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 76384-403 is determined by strict equivalence across the following critical parameters:

• Connector Configuration: Header type with male pin contacts
• Position Count & Pitch: 3-position arrangement at 0.100" (2.54mm) mating pitch
• Mounting & Termination: Through-hole solder termination
• Mechanical Compatibility: Shrouded 2-wall design with matching contact geometry
• Material Specifications: Copper alloy contacts with thermoplastic glass-filled insulation rated UL94 V-0

The 76384-403LF meets all these criteria as a direct functional equivalent within the Dubox™ series.

Parameter Comparison

Engineering Selection Recommendations

The 76384-403LF is the direct active equivalent for the obsolete 76384-403. Selection between these parts should be based on the following criteria:

For New Designs and Procurement: The 76384-403LF is the appropriate choice. This part maintains identical mechanical and electrical interface specifications while offering active product status and RoHS compliance. The part is currently in production with established supply chain availability.

For Legacy System Support: The 76384-403 remains functionally compatible with existing assemblies designed to its specifications. However, procurement of this obsolete part may face extended lead times or availability constraints.

Compliance Considerations: The 76384-403LF carries RoHS compliance certification, whereas the 76384-403 does not. Applications subject to RoHS regulatory requirements must utilize the 76384-403LF variant.

Both parts share identical mechanical dimensions, contact geometry, and mounting characteristics, ensuring direct interchangeability at the assembly level.

Frequently Asked Questions (FAQ)

Q: Can the 76384-403LF be used as a direct replacement for the 76384-403?

A: Yes. The 76384-403LF maintains identical mechanical and electrical interface specifications. Both parts feature the same 3-position configuration, 0.100" (2.54mm) pitch, through-hole solder termination, and shrouded 2-wall design. Assembly-level compatibility is confirmed.

Q: What is the primary difference between these two parts?

A: The 76384-403LF is the active production variant with RoHS compliance certification. The 76384-403 is classified as obsolete and does not carry RoHS compliance. Both parts are mechanically and electrically equivalent.

Q: Are there any contact finish differences between these parts?

A: Yes. The 76384-403 features Tin-Lead contact finish with 150.0µin (3.81µm) thickness. The 76384-403LF uses Tin contact finish with 78.7µin (2.00µm) thickness. Both finishes are suitable for solder termination applications.

Q: What is the current rating for these connectors?

A: The 76384-403LF is rated for 3A continuous current. Current rating information is not specified for the 76384-403.

Q: Are these parts suitable for high-temperature applications?

A: The 76384-403LF is rated for operating temperatures from -40°C to 125°C. Operating temperature specifications are not provided for the 76384-403.

Q: What packaging options are available?

A: The 76384-403LF is supplied in bulk packaging. Packaging information is not specified for the 76384-403.
