Amphenol ICC 76384-313 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76384-313 is a through-hole rectangular connector header with 13 positions at 2.54mm pitch, designed for board-to-cable/wire applications. This component features shrouded 2-wall construction with friction lock fastening and solder termination. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and new design implementations.

Substiute Parts

76384-313

Amphenol ICC (FCI)In Stock: 90676384-313 Datasheet

Current PartRFQ

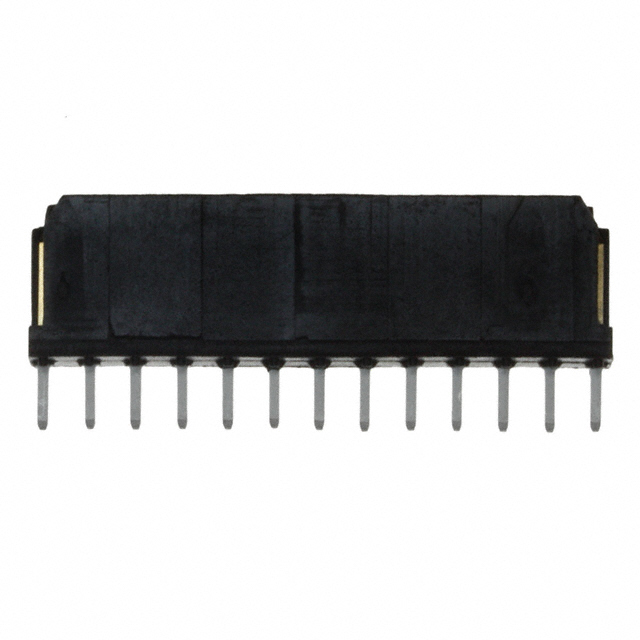

76384-313LF

Amphenol ICC (FCI)In Stock: 98776384-313LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 76384-313 is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Header with male pins
• Position Count & Pitch: 13 positions at 0.100" (2.54mm) mating pitch
• Mechanical Interface: Through-hole mounting with shrouded 2-wall design
• Termination Method: Solder termination with friction lock fastening
• Contact Geometry: Square contact shape with specified mating and post lengths
• Insulation Specifications: Thermoplastic, glass-filled material with UL94 V-0 rating

The substitute part 76384-313LF maintains full electrical and mechanical compatibility with the original specification while offering improved compliance status and material enhancements.

Parameter Comparison

Engineering Selection Recommendations

The 76384-313LF is the direct functional equivalent of the obsolete 76384-313. Both components share identical electrical and mechanical specifications across all critical interface parameters, ensuring pin-for-pin compatibility in existing designs.

The 76384-313LF offers significant compliance advantages: it is RoHS compliant and REACH affected, whereas the original part is RoHS non-compliant. The substitute incorporates lead-free tin plating on the post finish (replacing tin-lead) and enhanced gold plating with GXT™ technology on mating contacts. These material improvements support modern manufacturing and environmental standards while maintaining full mechanical and electrical interchangeability.

The 76384-313LF is actively manufactured and stocked, providing supply chain continuity for applications currently using the obsolete 76384-313 or for new designs requiring this connector configuration.

Frequently Asked Questions (FAQ)

Q: Is the 76384-313LF a direct replacement for the 76384-313?

A: Yes. Both parts are identical in connector type, position count, pitch, mounting method, shrouding, and contact geometry. The 76384-313LF is mechanically and electrically interchangeable with the 76384-313 in all applications.

Q: What are the key differences between these parts?

A: The primary differences are product status, compliance certifications, and contact finish materials. The 76384-313LF is RoHS compliant with lead-free tin post plating and GXT™ enhanced gold mating finish, while the 76384-313 uses tin-lead post plating and standard gold finish. The 76384-313LF is actively produced; the 76384-313 is obsolete.

Q: Are there packaging differences?

A: The 76384-313LF is supplied in tube packaging. Packaging specifications for the original 76384-313 were not provided in the technical data.

Q: Can I use the 76384-313LF in legacy designs currently using the 76384-313?

A: Yes. The 76384-313LF maintains full compatibility with existing PCB layouts, mating connectors, and system designs. The lead-free and RoHS-compliant construction of the substitute part is compatible with both legacy and modern assembly processes.

Q: What is the current availability status?

A: The 76384-313LF is actively manufactured with 958 pieces in stock. The 76384-313 is obsolete with 856 pieces in remaining inventory.
