Amphenol ICC 76384-308 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76384-308 is a shrouded vertical rectangular connector header designed for through-hole mounting in board-to-cable/wire applications. This 8-position connector operates at 0.100" (2.54mm) pitch and features male pin contacts with gold-plated mating surfaces and tin-lead post finishes. The part is classified as obsolete, making identification of suitable substitutes essential for ongoing design support and component procurement.

Substiute Parts

76384-308

Amphenol ICC (FCI)In Stock: 111876384-308 Datasheet

Current PartRFQ

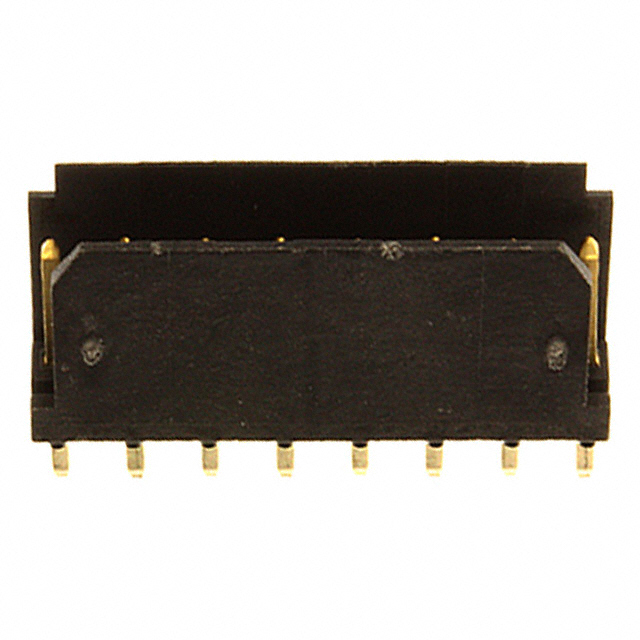

76384-308LF

Amphenol ICC (FCI)In Stock: 127276384-308LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 76384-308 is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Header with male pin contacts
• Electrical Interface: 8 positions at 0.100" (2.54mm) pitch
• Mechanical Form Factor: Shrouded 2-wall design, through-hole mounting
• Termination Method: Solder termination with square contact geometry
• Material & Safety Compliance: Thermoplastic glass-filled insulation, UL94 V-0 rating

The substitute part 76384-308LF maintains identical mechanical and electrical specifications while offering improved compliance status and enhanced contact finishes.

Parameter Comparison

Engineering Selection Recommendations

The 76384-308LF is the direct active substitute for the obsolete 76384-308. Both parts share identical mechanical and electrical interface specifications, ensuring direct compatibility in existing designs.

Compliance Advantages of 76384-308LF:

• Active product status with ongoing manufacturer support
• RoHS compliant formulation (versus non-compliant original)
• Enhanced contact finish with GXT™ technology on mating surfaces
• Tin post finish (lead-free) replacing tin-lead composition
• Specified operating temperature range (-40°C ~ 125°C) and current rating (3A)

Design Considerations: The substitution is mechanically and electrically transparent. The 76384-308LF maintains all critical dimensional and contact specifications. The shift from tin-lead to tin post finish aligns with modern manufacturing standards. Insulation color change from blue to black does not affect functional performance.

Frequently Asked Questions (FAQ)

Q: Are the 76384-308 and 76384-308LF mechanically interchangeable?

A: Yes. Both parts maintain identical pitch (0.100" / 2.54mm), contact geometry (square male pins), shrouding configuration (2-wall), and overall dimensions. PCB footprints and mating connector interfaces are identical.

Q: What is the significance of the "LF" suffix in 76384-308LF?

A: The "LF" designation indicates lead-free composition, reflecting RoHS compliance and the use of tin-based post finishes instead of tin-lead alloys.

Q: Can I use 76384-308LF as a direct replacement in designs originally specified for 76384-308?

A: Yes. The electrical and mechanical specifications are equivalent. The 76384-308LF provides improved compliance status and is the recommended active alternative for new procurement and design updates.

Q: What is the difference in contact finish between these parts?

A: The 76384-308 uses gold mating finish with tin-lead posts. The 76384-308LF uses gold mating finish with GXT™ enhancement and tin posts (lead-free). Both maintain 30.0µin (0.76µm) mating finish thickness.

Q: Are there packaging differences between these parts?

A: The 76384-308LF is supplied in tube packaging. The original 76384-308 packaging specification is not provided in the technical data.

Q: What is the current rating for these connectors?

A: The 76384-308LF is rated for 3A per contact. The original 76384-308 current rating is not specified in available documentation.
