Equivalent & Substitute Parts for 76350-104-14 Rectangular Connector Header

Part Overview

The Amphenol ICC 76350-104-14 is a through-hole, right-angle rectangular connector header with 14 positions arranged in 2 rows at 0.100" (2.54mm) pitch. This BERGSTIK® series component features male pins with gold-plated phosphor bronze contacts and unshrouded design for board-to-board applications. The part is classified as obsolete, necessitating identification of active substitute components that maintain electrical and mechanical compatibility while meeting current RoHS compliance requirements.

Key Parameters

Parameter	Value
Connector Type	Header, Male Pin
Number of Positions	14
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Style	Board to Board
Shrouding	Unshrouded
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.200" (5.08mm)
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Moisture Sensitivity Level	1 (Unlimited)
REACH Status	REACH Unaffected

Substitute Part Grouping Explanation

Substitution of the 76350-104-14 is determined by strict equivalence in the following critical parameters:

Mandatory Matching Parameters:

14 positions in 2-row configuration
0.100" (2.54mm) mating pitch
0.100" (2.54mm) row spacing
Through-hole, right-angle mounting
Unshrouded male pin header
Solder termination
Push-pull fastening
0.200" (5.08mm) insulation height
UL94 V-0 flammability rating
Black insulation color
MSL 1 (Unlimited)

Allowable Variations: Contact material (phosphor bronze or brass), contact finish composition (gold or tin), contact finish thickness, contact length specifications, insulation material formulation, and operating temperature range are allowable variations provided all mandatory parameters remain constant.

The substitute parts listed below maintain full mechanical and electrical compatibility with the 76350-104-14 while offering active product status and RoHS3 compliance.

Parameter Comparison

Part Number	Manufacturer	Series	Contact Material	Contact Finish - Mating	Contact Length - Mating	Contact Length - Post	Insulation Material	Operating Temperature	Product Status	RoHS Status
76350-104-14	Amphenol ICC	BERGSTIK®	Phosphor Bronze	Gold, GXT™	0.230" (5.84mm)	0.120" (3.05mm)	Thermoplastic	Not specified	Obsolete	RoHS non-compliant
802-V3-014-20-001101	Preci-Dip	802	Brass	Gold	0.195" (4.95mm)	0.126" (3.20mm)	PCT, Polyester, Glass Filled	-55°C ~ 125°C	Active	ROHS3 Compliant
892-18-014-20-002101	Preci-Dip	892	Brass	Gold	0.276" (7.00mm)	0.118" (3.00mm)	Polyamide (PA), Nylon, Glass Filled	-55°C ~ 125°C	Active	ROHS3 Compliant
892-70-014-20-002101	Preci-Dip	892	Brass	Gold	0.276" (7.00mm)	0.118" (3.00mm)	Polyamide (PA), Nylon, Glass Filled	-55°C ~ 125°C	Active	ROHS3 Compliant
892-80-014-20-001101	Preci-Dip	892	Brass	Tin	0.236" (6.00mm)	0.118" (3.00mm)	Polyamide (PA), Nylon, Glass Filled	-55°C ~ 125°C	Active	ROHS3 Compliant
892-80-014-20-002101	Preci-Dip	892	Brass	Tin	0.276" (7.00mm)	0.118" (3.00mm)	Polyamide (PA), Nylon, Glass Filled	-55°C ~ 125°C	Active	ROHS3 Compliant
M20-9740746	Harwin Inc.	M20	Brass	Tin	0.228" (5.80mm)	0.118" (3.00mm)	Polyamide (PA6T), Nylon 6T	-40°C ~ 105°C	Active	ROHS3 Compliant
TSW-107-08-G-D-RA	Samtec Inc.	TSW	Phosphor Bronze	Gold	0.230" (5.84mm)	0.090" (2.29mm)	Polybutylene Terephthalate (PBT)	-55°C ~ 125°C	Active	ROHS3 Compliant

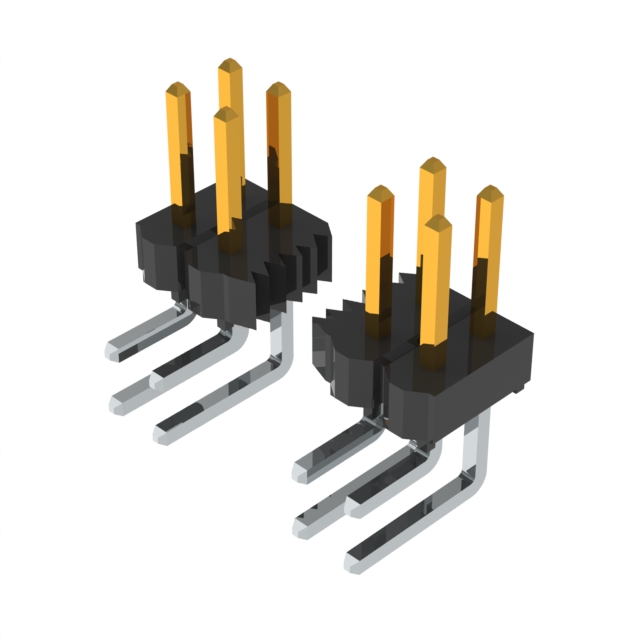

TSW-107-08-L-D-RA	Samtec Inc.	TSW	Phosphor Bronze	Gold	0.230" (5.84mm)	0.090" (2.29mm)	Polybutylene Terephthalate (PBT)	-55°C ~ 125°C	Active	ROHS3 Compliant
TSW-107-08-S-D-RA	Samtec Inc.	TSW	Phosphor Bronze	Gold	0.230" (5.84mm)	0.090" (2.29mm)	Polybutylene Terephthalate (PBT)	-55°C ~ 125°C	Active	ROHS3 Compliant
TSW-107-08-T-D-RA	Samtec Inc.	TSW	Phosphor Bronze	Tin	0.230" (5.84mm)	0.090" (2.29mm)	Polybutylene Terephthalate (PBT)	-55°C ~ 105°C	Active	ROHS3 Compliant

Engineering Selection Recommendations

All listed substitute parts maintain the mandatory mechanical and electrical parameters required for direct replacement of the 76350-104-14. Selection among substitutes should be based on the following criteria:

RoHS Compliance: All substitute parts are ROHS3 compliant, addressing the non-compliance status of the original obsolete component. This is a primary consideration for new designs and procurement.

Product Status: All substitutes are active products with current manufacturing support and inventory availability, eliminating supply chain risk associated with the obsolete 76350-104-14.

Contact Material and Finish: Preci-Dip 892 series and Harwin M20-9740746 use brass contacts with either gold or tin finish. Samtec TSW-107 series and Preci-Dip 802 series maintain phosphor bronze contacts similar to the original. Contact finish selection (gold versus tin) depends on application requirements for corrosion resistance and electrical performance.

Operating Temperature Range: Samtec TSW-107 series and Preci-Dip 892 series support -55°C to 125°C operation. Harwin M20-9740746 and Samtec TSW-107-08-T-D-RA support -40°C to 105°C. Selection should align with application thermal requirements.

Contact Length Variations: Mating contact lengths range from 0.195" to 0.276". Post contact lengths range from 0.090" to 0.126". These variations accommodate different PCB thicknesses and mating depths. Verify compatibility with mating connector specifications.

Insulation Material: Preci-Dip 892 series uses glass-filled polyamide. Samtec TSW-107 series uses polybutylene terephthalate (PBT). Preci-Dip 802 series uses glass-filled polyester. All materials meet UL94 V-0 flammability requirements.

Frequently Asked Questions (FAQ)

Q: Can the 76350-104-14 be directly replaced with any of the listed substitutes?

A: Yes. All listed substitute parts maintain identical mechanical pitch (0.100" / 2.54mm), row spacing (0.100" / 2.54mm), position count (14 in 2 rows), mounting type (through-hole right-angle), and insulation height (0.200" / 5.08mm). Direct PCB footprint compatibility is assured.

Q: What is the primary reason to replace the 76350-104-14?

A: The 76350-104-14 is classified as obsolete and is RoHS non-compliant. All substitute parts are active products with ROHS3 compliance, ensuring long-term availability and regulatory compliance for new designs.

Q: Are there differences in contact length between the original and substitutes?

A: Yes. The original 76350-104-14 has a mating contact length of 0.230" (5.84mm) and post length of 0.120" (3.05mm). Substitutes vary: Samtec TSW-107 series maintains 0.230" mating length but reduces post length to 0.090". Preci-Dip 892 series extends mating length to 0.276". These variations accommodate different PCB thicknesses and mating connector depths. Verify compatibility with your specific mating connector.

Q: What is the difference between gold and tin contact finishes?

A: Gold-plated contacts (802-V3-014-20-001101, 892-18-014-20-002101, 892-70-014-20-002101, TSW-107-08-G-D-RA, TSW-107-08-L-D-RA, TSW-107-08-S-D-RA) provide superior corrosion resistance and lower contact resistance. Tin-plated contacts (892-80-014-20-001101, 892-80-014-20-002101, M20-9740746, TSW-107-08-T-D-RA) are cost-effective and suitable for standard applications. Selection depends on environmental exposure and electrical performance requirements.

Q: Which substitute offers the closest match to the original 76350-104-14?

A: Samtec TSW-107-08-S-D-RA provides the closest electrical and mechanical match: identical mating contact length (0.230" / 5.84mm), phosphor bronze contact material, and gold finish composition. Operating temperature range extends to -55°C to 125°C, and the part is ROHS3 compliant and active.

Q: Are all substitutes available in the same packaging?

A: Yes. All substitute parts are supplied in bulk packaging, consistent with the original 76350-104-14 packaging specification.

Q: What is the current inventory status of these substitutes?

A: Inventory levels are: 802-V3-014-20-001101 (840 pcs), 892-18-014-20-002101 (883 pcs), 892-70-014-20-002101 (1068 pcs), 892-80-014-20-001101 (880 pcs), 892-80-014-20-002101 (1000 pcs), M20-9740746 (1371 pcs), TSW-107-08-G-D-RA (2343 pcs), TSW-107-08-L-D-RA (746 pcs), TSW-107-08-S-D-RA (1002 pcs), TSW-107-08-T-D-RA (1158 pcs). All substitutes maintain adequate stock levels for production requirements.

Q: Do all substitutes meet the same flammability and moisture sensitivity standards?

A: Yes. All substitute parts are rated UL94 V-0 for flammability and MSL 1 (Unlimited) for moisture sensitivity, matching the original 76350-104-14 specifications. All are REACH Unaffected and classified under ECCN EAR99.
