Amphenol ICC 76350-104-06LF Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76350-104-06LF is a rectangular connector header, right-angle configuration, with 6 positions at 2.54mm pitch. This through-hole component features male pins with solder termination and push-pull fastening, designed for board-to-board applications. The part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. Substitute parts maintain the core electrical and mechanical specifications while offering active product status and improved availability.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Shape	Square
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict adherence to the following core parameters:

Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 6
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Shape: Square
Material Flammability Rating: UL94 V-0
Insulation Color: Black

All substitute parts listed meet these mandatory criteria. Variations in contact finish, insulation height, contact length specifications, and operating temperature ranges are permitted within the scope of functional equivalence for this connector category.

Parameter Comparison

Parameter	76350-104-06LF (Main)	68021-106HLF	61300621021	TSW-103-08-G-D-RA	TSW-103-08-L-D-RA	TSW-103-08-T-D-RA
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Würth Elektronik	Samtec Inc.	Samtec Inc.	Samtec Inc.
Series	BERGSTIK®	BERGSTIK® II	WR-PHD	TSW	TSW	TSW
Product Status	Obsolete	Active	Active	Active	Active	Active
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	6	6	6	6	6	6
Number of Rows	2	2	2	2	2	2
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.230" (5.84mm)	0.230" (5.84mm)	0.236" (6.00mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)	0.120" (3.05mm)	0.118" (3.00mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)
Insulation Height	0.200" (5.08mm)	0.190" (4.83mm)	0.200" (5.08mm)	0.219" (5.56mm)	0.219" (5.56mm)	0.219" (5.56mm)
Contact Shape	Square	Square	Square	Square	Square	Square
Contact Material	Phosphor Bronze	Phosphor Bronze	Copper Alloy	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Contact Finish - Mating	Gold, GXT™	Gold or Gold, GXT™	Gold	Gold	Gold	Tin
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black
Operating Temperature	Not specified	-65°C ~ 125°C	-40°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 105°C
RoHS Status	Not specified	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	Not Applicable	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

Primary Substitute: Amphenol ICC 68021-106HLF

The 68021-106HLF is the direct manufacturer equivalent from Amphenol ICC, representing the active-production successor to the obsolete 76350-104-06LF. Both components share identical pitch, position count, row configuration, and contact geometry. The 68021-106HLF offers active product status, RoHS compliance, and improved operating temperature range (-65°C ~ 125°C). This part is the preferred choice for direct replacement in existing designs.

Secondary Substitutes: Würth Elektronik 61300621021 and Samtec TSW Series

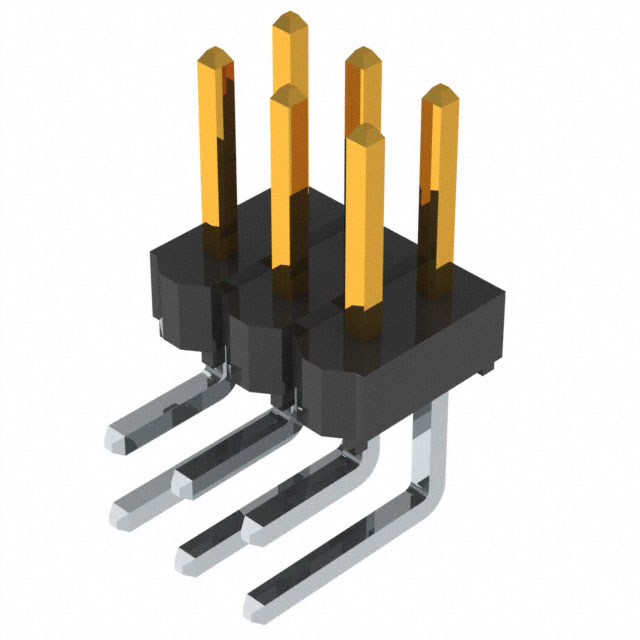

The Würth Elektronik 61300621021 and Samtec TSW-103-08 variants (TSW-103-08-G-D-RA, TSW-103-08-L-D-RA, TSW-103-08-T-D-RA) provide cross-manufacturer alternatives meeting all core substitution criteria. These parts maintain connector type, pitch, position count, and mounting configuration. Selection among these alternatives depends on specific application requirements regarding contact finish specifications and operating temperature ranges. All substitute parts carry active product status and current RoHS3 compliance certifications.

Frequently Asked Questions (FAQ)

Q: Can the 68021-106HLF directly replace the 76350-104-06LF without PCB redesign?

A: Yes. Both parts share identical pitch (2.54mm), position count (6), row spacing (2.54mm), and mounting type (through-hole, right-angle). The 68021-106HLF maintains the same contact geometry and solder termination, enabling direct substitution on existing PCB layouts.

Q: What are the key differences between the Amphenol ICC and Samtec substitute options?

A: The primary differences are contact post length and insulation height. The Amphenol ICC 68021-106HLF maintains 0.120" post length and 0.190" insulation height, closely matching the original part. Samtec TSW-103-08 variants feature shorter post length (0.090") and taller insulation height (0.219"). These dimensional variations require verification against mating connector specifications and PCB layout constraints.

Q: Are all substitute parts RoHS compliant?

A: Yes. The 68021-106HLF is RoHS Compliant. The Würth Elektronik 61300621021 and all Samtec TSW-103-08 variants are ROHS3 Compliant, meeting current regulatory requirements.

Q: Which substitute part offers the widest operating temperature range?

A: The Amphenol ICC 68021-106HLF and Samtec TSW-103-08-G-D-RA and TSW-103-08-L-D-RA all support -55°C ~ 125°C or -65°C ~ 125°C operating ranges. The Würth Elektronik 61300621021 operates at -40°C ~ 105°C, and the Samtec TSW-103-08-T-D-RA operates at -55°C ~ 105°C. Application thermal requirements should guide selection.

Q: What is the significance of contact finish variations among substitute parts?

A: Contact finish affects electrical performance and environmental resistance. The original part and most substitutes feature gold plating for superior corrosion resistance. The Samtec TSW-103-08-T-D-RA uses tin finish on both mating and post contacts, suitable for applications where gold plating is not required and cost optimization is prioritized.

Q: Are moisture sensitivity considerations different between substitute parts?

A: The Amphenol ICC 68021-106HLF, Samtec TSW-103-08 variants, and the original part all carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions. The Würth Elektronik 61300621021 is marked as Not Applicable for MSL, reflecting its polyamide insulation material. Both classifications are acceptable for standard handling and storage conditions.
