Amphenol ICC 76347-341LF Socket Contact Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76347-341LF is a rectangular connector socket contact designed for 28-32 AWG wire gauges with gold plating and crimp termination. This component is part of the DUBOX™, MezzSelect™, and Basics+ series and maintains Active product status. Equivalent and substitute parts are identified to support design flexibility, supply chain continuity, and application requirements where alternative packaging or manufacturer specifications are acceptable.

Substiute Parts

76347-341LF

Amphenol ICC (FCI)In Stock: 113376347-341LF Datasheet

Current PartRFQ

167021-2

TE Connectivity AMP ConnectorsIn Stock: 2950167021-2 Datasheet

MFR RecommendedRFQ

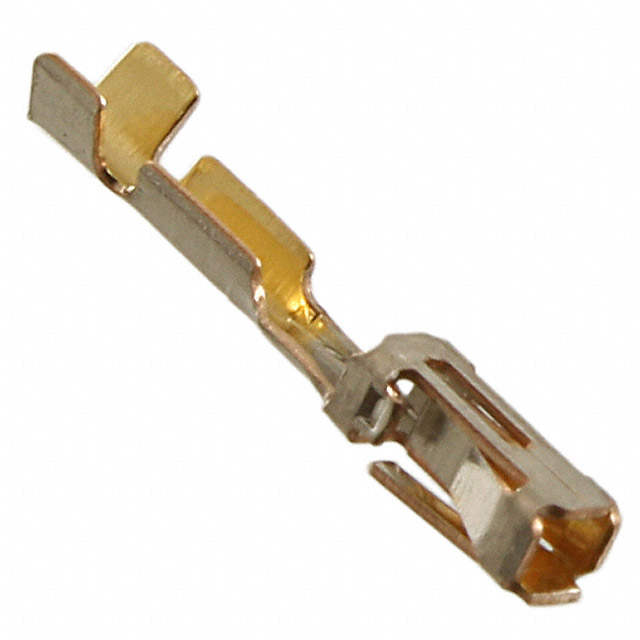

167024-1

TE Connectivity AMP ConnectorsIn Stock: 11431167024-1 Datasheet

MFR RecommendedRFQ

167024-2

TE Connectivity AMP ConnectorsIn Stock: 846167024-2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 76347-341LF is determined by the following critical parameters:

• Wire Gauge: 28-32 AWG (exact match required)
• Contact Type: Socket (exact match required)
• Contact Termination: Crimp (exact match required)
• Contact Finish: Gold (exact match required)
• Moisture Sensitivity Level: 1 (Unlimited) (exact match required)
• RoHS Compliance: RoHS or ROHS3 compliant (acceptable equivalence)

Substitute parts must satisfy all electrical and mechanical parameters listed above. Packaging format, manufacturer, and contact finish thickness within industry tolerance ranges do not preclude substitution eligibility. Parts with Discontinued or non-Active product status are identified but require supply chain verification before selection.

Parameter Comparison

Engineering Selection Recommendations

All three TE Connectivity AMP Connectors parts (167021-2, 167024-1, and 167024-2) satisfy the critical electrical and mechanical substitution criteria for the 76347-341LF. Selection should be based on the following factors:

167021-2 (TE Connectivity): Active product status with Cut Tape packaging. ROHS3 compliant. Suitable for applications requiring standard tape packaging formats.

167024-1 (TE Connectivity): Active product status with Bulk packaging. ROHS3 compliant. Highest inventory availability (11,378 pcs). Suitable for high-volume applications or where bulk packaging is acceptable.

167024-2 (TE Connectivity): Discontinued at DiGi Electronics. ROHS3 compliant with REACH Unaffected status. Not recommended for new designs or long-term supply chain planning due to discontinued status.

The 76347-341LF remains the primary specification. Substitution should be evaluated based on application requirements, packaging compatibility, and supply chain availability.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 167021-2 directly replace Amphenol ICC 76347-341LF?

A: Yes. Both parts meet the critical substitution parameters: 28-32 AWG wire gauge, socket contact type, crimp termination, gold finish, MSL 1, and RoHS/ROHS3 compliance. Packaging format differs (Cut Tape vs. Tape & Reel), which may affect procurement and assembly processes but does not affect electrical or mechanical compatibility.

Q: What is the difference between 167024-1 and 167024-2?

A: Both are TE Connectivity AMPMODU Mod IV series parts with identical electrical and mechanical specifications. The primary difference is product status: 167024-1 is Active, while 167024-2 is Discontinued at DiGi Electronics. For new designs, 167024-1 is the appropriate selection.

Q: Does contact finish thickness variation affect substitution eligibility?

A: No. The contact finish thickness difference (30.0µin for 76347-341LF vs. 31.5µin for TE Connectivity parts) falls within industry tolerance ranges for gold-plated contacts and does not preclude substitution. Both thicknesses provide equivalent corrosion resistance and electrical performance for 28-32 AWG crimp applications.

Q: Are all substitute parts RoHS compliant?

A: Yes. The 76347-341LF is RoHS Compliant, and all three substitute parts are ROHS3 Compliant. Both certifications satisfy RoHS directive requirements.

Q: Which substitute part has the best inventory availability?

A: 167024-1 has the highest inventory (11,378 pcs New Original In Stock), followed by 167021-2 (2,848 pcs), and 167024-2 (813 pcs). For supply chain continuity, 167024-1 is the preferred substitute.
