Amphenol ICC 76314-211LF Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76314-211LF is a 22-position rectangular receptacle connector with 0.100" (2.54mm) pitch, designed for through-hole PCB mounting with gold-plated mating contacts. This BergCon® series connector is classified as Active product status and is RoHS Compliant with UL94 V-0 flammability rating. Substitute parts are identified when equivalent electrical and mechanical parameters are required due to inventory constraints, design flexibility, or application-specific performance needs.

Substiute Parts

76314-211LF

Amphenol ICC (FCI)In Stock: 115176314-211LF Datasheet

Current PartRFQ

PPPC112LFBN-RC

Sullins Connector SolutionsIn Stock: 2963PPPC112LFBN-RC Datasheet

MFR RecommendedRFQ

PPTC112LFBN-RC

Sullins Connector SolutionsIn Stock: 1020PPTC112LFBN-RC Datasheet

MFR RecommendedRFQ

SSW-111-01-F-D

Samtec Inc.In Stock: 1136SSW-111-01-F-D Datasheet

MFR RecommendedRFQ

SSW-111-01-L-D

Samtec Inc.In Stock: 1202SSW-111-01-L-D Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict alignment of the following critical parameters:

• Connector Configuration: 22 positions, 0.100" (2.54mm) pitch, 2-row layout with 0.100" row spacing
• Mounting & Termination: Through-hole solder termination with push-pull fastening
• Insulation Height: 0.335" (8.51mm)
• Flammability Compliance: UL94 V-0 rating
• Environmental Classification: MSL 1 (Unlimited)

The substitute parts listed maintain these core parameters. Variations in connector type (Header vs. Receptacle), contact material composition, contact finish specifications, and operating temperature ranges are secondary parameters that do not preclude substitution when primary mechanical and electrical compatibility is established.

Parameter Comparison

Engineering Selection Recommendations

All listed substitute parts maintain Active product status and comply with RoHS and UL94 V-0 requirements, ensuring regulatory alignment with the primary 76314-211LF connector.

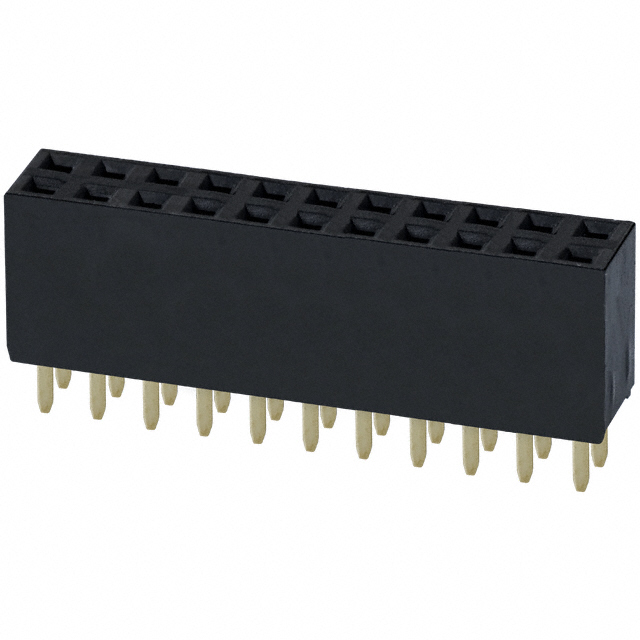

PPPC112LFBN-RC (Sullins, Header, Gold): Maintains gold mating contact finish matching the primary part. Header configuration provides alternative mounting topology while preserving electrical and mechanical compatibility. ROHS3 Compliant status confirms current regulatory standing.

PPTC112LFBN-RC (Sullins, Header, Tin): Offers tin mating contact finish as an alternative to gold. Header configuration and ROHS3 Compliant status support equivalent functional performance. Contact finish selection should align with application-specific corrosion resistance and conductivity requirements.

SSW-111-01-F-D (Samtec, Receptacle, Gold, Forked Contact): Maintains receptacle configuration and gold mating finish. Forked contact geometry and Liquid Crystal Polymer (LCP) insulation material provide enhanced mechanical retention. Extended operating temperature range (-55°C ~ 125°C) supports broader thermal applications. ROHS3 Compliant.

SSW-111-01-L-D (Samtec, Receptacle, Gold, Forked Contact): Functionally equivalent to SSW-111-01-F-D with identical electrical and mechanical specifications. Forked contact design and LCP insulation material ensure robust performance. Extended operating temperature range and ROHS3 Compliant status support demanding environments.

Frequently Asked Questions (FAQ)

Q: Can the Sullins header connectors (PPPC112LFBN-RC, PPTC112LFBN-RC) directly replace the Amphenol ICC 76314-211LF receptacle?

A: Header and receptacle connectors are complementary mating components. Direct mechanical substitution requires that the mating connector (plug or header) be compatible with the substitute part's contact geometry and pitch. Both Sullins headers maintain 0.100" (2.54mm) pitch, 22-position configuration, and 0.335" (8.51mm) insulation height, enabling compatibility with standard 0.100" pitch receptacles when mating geometry is verified.

Q: What is the difference between gold and tin contact finishes?

A: Gold contact finish (76314-211LF, PPPC112LFBN-RC, SSW-111-01-F-D, SSW-111-01-L-D) provides superior corrosion resistance and lower contact resistance, suitable for low-signal applications and harsh environments. Tin contact finish (PPTC112LFBN-RC) offers cost efficiency and adequate performance for standard industrial applications. Selection depends on application requirements for signal integrity and environmental exposure.

Q: Are the Samtec SSW-111 receptacles interchangeable with the Amphenol ICC 76314-211LF?

A: Both SSW-111-01-F-D and SSW-111-01-L-D maintain receptacle configuration, 22-position layout, 0.100" (2.54mm) pitch, and gold mating contact finish. Mechanical and electrical parameters align with the primary part. Forked contact design in Samtec parts provides enhanced retention characteristics. Both are ROHS3 Compliant and UL94 V-0 rated.

Q: What packaging differences exist among these substitute parts?

A: The primary 76314-211LF is supplied in Tube packaging. PPPC112LFBN-RC and PPTC112LFBN-RC are supplied in Tray packaging. SSW-111-01-F-D and SSW-111-01-L-D are supplied in Bulk packaging. Packaging format does not affect connector functionality or compatibility; selection should align with procurement and assembly workflow requirements.

Q: Do all substitute parts meet the same compliance standards as the primary part?

A: All substitute parts are ROHS3 Compliant and UL94 V-0 rated, meeting current regulatory requirements. The primary part is RoHS Compliant (earlier standard). All parts maintain MSL 1 (Unlimited) moisture sensitivity classification and ECCN EAR99 export control status.
