Amphenol ICC 76314-111LF Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 76314-111LF is a 22-position rectangular receptacle connector with 0.100" (2.54mm) pitch, designed for through-hole PCB mounting with gold-plated mating contacts. This BergCon® series connector is classified as Active product status and is RoHS Compliant with UL94 V-0 flammability rating. Substitute parts are necessary when addressing specific application requirements such as contact finish variations, insulation material preferences, or connector type compatibility (receptacle versus header configurations).

Key Parameters

Parameter	Value
Manufacturer Part Number	76314-111LF
Manufacturer	Amphenol ICC (FCI)
Connector Type	Receptacle
Number of Positions	22
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Contact Finish - Mating	Gold
Insulation Height	0.335" (8.51mm)
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the 76314-111LF is determined by strict alignment of the following electrical and mechanical parameters:

Critical Parameters for Substitution:

Number of Positions: 22
Pitch - Mating: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Insulation Height: 0.335" (8.51mm)
Material Flammability Rating: UL94 V-0

Allowable Variations:

Connector Type: Receptacle or Header (both compatible with board-to-board applications)
Contact Finish - Mating: Gold or Tin (both provide adequate electrical conductivity)
Insulation Material: Thermoplastic Polyester, Polyester, or Liquid Crystal Polymer (LCP)
Contact Material: Brass or Phosphor Bronze
Contact Finish Thickness: Variations within industry standards
Insulation Color: Blue or Black

All substitute parts listed maintain compatibility with the 76314-111LF through adherence to these parameters.

Parameter Comparison

Parameter	76314-111LF (Amphenol ICC)	PPPC112LFBN-RC (Sullins)	PPTC112LFBN-RC (Sullins)	SSQ-111-01-G-D-001 (Samtec)	SSQ-111-01-TM-D (Samtec)	SSW-111-01-F-D (Samtec)	SSW-111-01-L-D (Samtec)	SSW-111-21-G-D (Samtec)	SSW-111-24-F-D (Samtec)
Connector Type	Receptacle	Header	Header	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Number of Positions	22	22	22	22	22	22	22	22	22
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Finish - Mating	Gold	Gold	Tin	Gold	Tin	Gold	Gold	Gold	Gold
Insulation Height	0.335" (8.51mm)	0.335" (8.51mm)	0.335" (8.51mm)	0.335" (8.51mm)	0.335" (8.51mm)	0.335" (8.51mm)	0.335" (8.51mm)	0.335" (8.51mm)	0.335" (8.51mm)
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Not Specified	Not Applicable	Not Specified	1 (Unlimited)	Not Applicable	Not Applicable	Not Applicable

Engineering Selection Recommendations

Receptacle Configuration (Direct Substitutes): The Samtec SSW and SSQ series receptacle connectors (SSW-111-01-F-D, SSW-111-01-L-D, SSW-111-21-G-D, SSW-111-24-F-D, SSQ-111-01-G-D-001, SSQ-111-01-TM-D) maintain identical connector type classification and are suitable for direct substitution where receptacle functionality is required. All are ROHS3 Compliant with UL94 V-0 flammability rating. Contact finish variations (Gold or Tin) are interchangeable based on application electrical requirements.

Header Configuration (Functional Substitutes): The Sullins Connector Solutions PPPC112LFBN-RC (gold finish) and PPTC112LFBN-RC (tin finish) are header connectors compatible with board-to-board applications. These parts are ROHS3 Compliant with UL94 V-0 rating and provide equivalent electrical and mechanical performance for applications where header configuration is acceptable.

Contact Finish Selection: Gold-finished parts (76314-111LF, PPPC112LFBN-RC, SSQ-111-01-G-D-001, SSW-111-01-F-D, SSW-111-01-L-D, SSW-111-21-G-D, SSW-111-24-F-D) are specified for applications requiring enhanced corrosion resistance. Tin-finished alternatives (PPTC112LFBN-RC, SSQ-111-01-TM-D) are suitable for standard applications with adequate environmental protection.

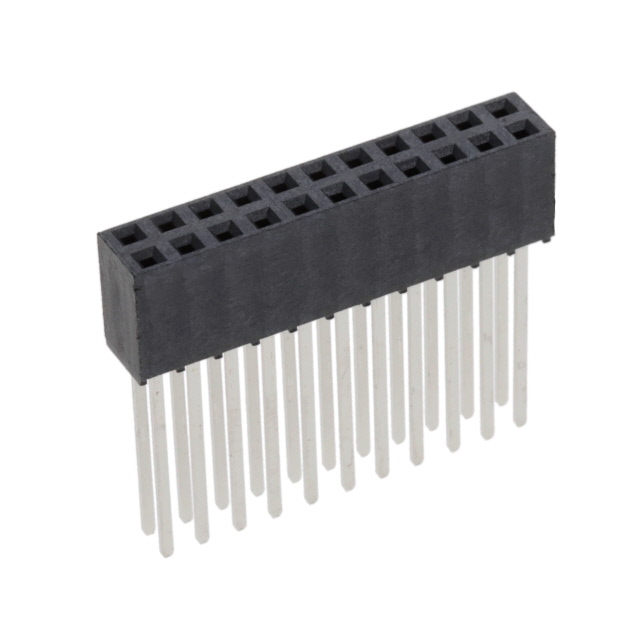

Contact Length Considerations: Standard contact length variants (0.104" to 0.135") are available across all substitutes. The SSW-111-24-F-D features extended contact length (0.584") for applications requiring deeper PCB penetration or stacking configurations.

Frequently Asked Questions (FAQ)

Q: Can I substitute a header connector for the 76314-111LF receptacle? A: Yes. The Sullins PPPC112LFBN-RC and PPTC112LFBN-RC header connectors are functionally compatible for board-to-board applications. Both maintain identical pitch, row spacing, position count, and mounting specifications. Selection depends on whether your application requires receptacle or header configuration.

Q: What is the difference between gold and tin contact finishes? A: Gold-finished contacts provide superior corrosion resistance and are specified for applications with extended shelf life or harsh environmental exposure. Tin-finished contacts are suitable for standard applications with adequate environmental protection and lower cost requirements. Both finishes meet the electrical conductivity requirements of this connector category.

Q: Are all substitute parts RoHS compliant? A: Yes. The 76314-111LF is RoHS Compliant, and all listed substitute parts are ROHS3 Compliant, meeting current regulatory requirements for restricted substances.

Q: What is the significance of contact material differences (Brass vs. Phosphor Bronze)? A: Both brass and phosphor bronze provide adequate electrical conductivity and mechanical durability for this connector category. The 76314-111LF uses brass contacts, while Samtec and Sullins substitutes use phosphor bronze. Both materials are acceptable for equivalent performance.

Q: Can I use SSW-111-24-F-D as a direct replacement? A: The SSW-111-24-F-D is electrically and mechanically compatible but features extended contact length (0.584" versus 0.104" standard). Use this variant only if your application requires deeper PCB penetration or specific stacking height requirements.

Q: What is the difference between SSQ and SSW series receptacles? A: Both SSQ and SSW series maintain identical pitch, position count, and mounting specifications. The primary differences are in contact finish thickness and insulation material (SSQ uses Liquid Crystal Polymer, SSW also uses LCP). Both are suitable substitutes for the 76314-111LF.

Q: Are there current or voltage rating differences I should consider? A: The 76314-111LF does not specify current or voltage ratings in the provided data. Sullins header connectors specify 3A at 250V. Samtec receptacles specify 4.7A per contact. Verify application requirements against specific part ratings before selection.

Q: What packaging options are available? A: The 76314-111LF is supplied in Tube packaging. Substitute parts are available in Tray (Sullins) or Bulk (Samtec) packaging. Confirm packaging requirements for your procurement and assembly processes.
