76308-116LF Equivalent & Substitute Parts

Part Overview

The 76308-116LF is a 16-position receptacle connector manufactured by Amphenol ICC (FCI) in the BergCon® series. This through-hole connector features 0.100" (2.54mm) pitch, gold-plated mating contacts, and is designed for board-to-board or cable applications. The part is active in production with 1131 units in stock. Equivalent and substitute parts are identified to support design flexibility, inventory management, and supply chain continuity for applications requiring 16-position rectangular connectors with matching electrical and mechanical specifications.

Substiute Parts

76308-116LF

Amphenol ICC (FCI)In Stock: 117376308-116LF Datasheet

Current PartRFQ

M20-7821642

Harwin Inc.In Stock: 4241M20-7821642 Datasheet

MFR RecommendedRFQ

M20-7821646

Harwin Inc.In Stock: 2274M20-7821646 Datasheet

MFR RecommendedRFQ

PPPC161LFBN-RC

Sullins Connector SolutionsIn Stock: 12963PPPC161LFBN-RC Datasheet

MFR RecommendedRFQ

PPTC161LFBN-RC

Sullins Connector SolutionsIn Stock: 21617PPTC161LFBN-RC Datasheet

MFR RecommendedRFQ

SSW-116-01-F-S

Samtec Inc.In Stock: 1854SSW-116-01-F-S Datasheet

MFR RecommendedRFQ

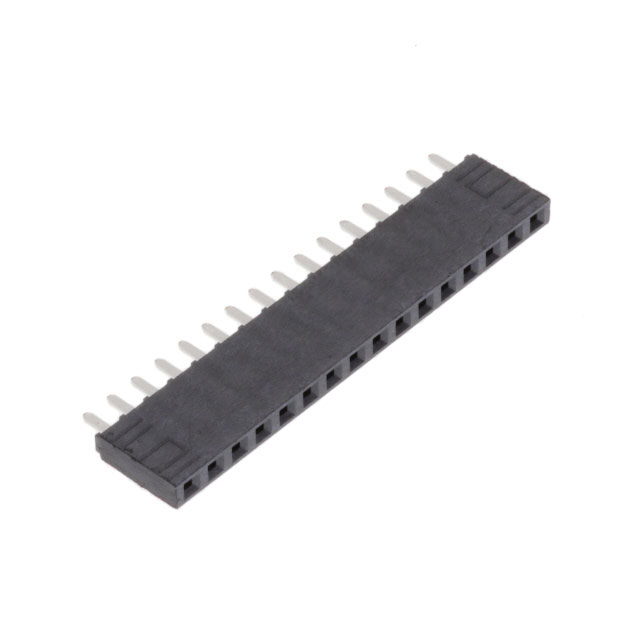

SSW-116-01-L-S

Samtec Inc.In Stock: 982SSW-116-01-L-S Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict alignment of the following critical parameters:

• Connector Type & Contact Configuration: Receptacle with female socket contacts
• Position Count & Pitch: 16 positions at 0.100" (2.54mm) mating pitch
• Mounting & Termination: Through-hole solder termination
• Insulation Height: 0.335" (8.51mm)
• Flammability & Compliance: UL94 V-0 rated, RoHS compliant

Substitute parts are grouped into two categories based on contact finish:

Gold-Plated Mating Contact Substitutes: M20-7821642 (Harwin), PPPC161LFBN-RC (Sullins), SSW-116-01-F-S (Samtec), SSW-116-01-L-S (Samtec)

Tin-Plated Mating Contact Substitutes: M20-7821646 (Harwin), PPTC161LFBN-RC (Sullins)

All listed substitutes maintain the core mechanical and electrical compatibility required for direct functional replacement in 16-position 0.100" pitch applications.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes (Receptacle Type, Gold Finish)

M20-7821642 (Harwin) and SSW-116-01-F-S (Samtec) are direct functional equivalents to the 76308-116LF. Both maintain receptacle connector type, 16-position configuration, 0.100" pitch, through-hole mounting, and gold mating contact finish. All three parts are UL94 V-0 rated and RoHS compliant. M20-7821642 offers higher inventory availability (4200 units) and extended operating temperature range (-40°C to 105°C). SSW-116-01-F-S provides higher current rating per contact (4.7A) and extended operating temperature range (-55°C to 125°C).

Secondary Substitutes (Receptacle Type, Tin Finish)

M20-7821646 (Harwin) is a receptacle connector with tin-plated mating contacts. This substitute is appropriate when gold plating is not required and cost optimization is a consideration. Electrical and mechanical compatibility remains equivalent to the main part.

Alternative Substitutes (Header Type)

PPPC161LFBN-RC (Sullins, gold finish) and PPTC161LFBN-RC (Sullins, tin finish) are header connectors rather than receptacles. These parts maintain 16-position, 0.100" pitch, through-hole configuration and UL94 V-0 compliance. Header connectors are suitable for applications where the mating interface differs from the original receptacle design. PPTC161LFBN-RC offers the highest inventory availability (21527 units).

All substitute parts are active in production status and meet RoHS compliance requirements.

Frequently Asked Questions (FAQ)

Q: Can M20-7821642 directly replace the 76308-116LF?

A: Yes. Both are 16-position receptacle connectors with 0.100" pitch, through-hole solder termination, gold mating contacts, 0.335" insulation height, and UL94 V-0 rating. Mechanical and electrical compatibility is maintained.

Q: What is the difference between receptacle and header connector types?

A: The 76308-116LF is a receptacle connector designed to accept mating pins. PPPC161LFBN-RC and PPTC161LFBN-RC are header connectors with protruding pins. The choice depends on the mating interface requirement in your application. Receptacles are used when the connector receives pins from a mating component.

Q: When should I use tin-plated contacts instead of gold?

A: Tin-plated substitutes (M20-7821646, PPTC161LFBN-RC) are appropriate for cost-sensitive applications where gold plating is not required by design specifications. Gold plating provides superior corrosion resistance and contact reliability in demanding environments.

Q: Are all substitutes RoHS compliant?

A: Yes. The main part 76308-116LF is RoHS Compliant, and all listed substitutes are ROHS3 Compliant, meeting current regulatory requirements.

Q: What is the operating temperature range for substitutes?

A: The 76308-116LF does not specify an operating temperature range. Harwin M20 series parts operate from -40°C to 105°C. Samtec SSW series parts operate from -55°C to 125°C. Sullins PPPC/PPTC series parts operate from -40°C to 105°C. Select based on your application temperature requirements.

Q: Which substitute offers the best inventory availability?

A: PPTC161LFBN-RC (Sullins, tin-plated header) has the highest inventory at 21527 units. PPPC161LFBN-RC (Sullins, gold-plated header) has 12893 units. M20-7821642 (Harwin, gold-plated receptacle) has 4200 units.
