Amphenol ICC 75869-331 Rectangular Connector Header Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 75869-331 is a vertical shrouded rectangular connector header with 6 positions at 2.54mm pitch, designed for through-hole board-to-cable/wire applications. This part carries an obsolete product status, making equivalent substitutes necessary for ongoing production and maintenance applications. The connector features a 2-row configuration with push-pull fastening, gold-plated mating contacts, and UL94 V-0 flammability rating. Direct substitutes maintain the same electrical and mechanical interface specifications, while alternative substitutes offer compatible form factors with modified position counts or mounting orientations.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Shrouding	Shrouded - 4 Wall
Termination	Solder
Contact Finish - Mating	Gold, GXT™
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
RoHS Status	Non-compliant

Substitute Part Grouping Explanation

Substitution for the 75869-331 is categorized into two groups based on electrical and mechanical compatibility:

Group 1: Direct Electrical & Mechanical Equivalents These parts maintain identical mating pitch (0.100"), position count (6), row configuration (2 rows), shrouding style (4-wall), and termination method (solder). Substitution is based on matching these core parameters: Contact Type (Male Pin), Mounting Type (Through Hole), and Contact Finish (Gold mating surface). The 75869-331LF qualifies as a direct equivalent with identical specifications and active product status.

Group 2: Functional Equivalents with Parameter Variations These parts share the same mating pitch (0.100"), position count (6), row configuration (2 rows), shrouding (4-wall), and termination (solder), but originate from alternative manufacturers (HARTING, TE Connectivity). Substitution is valid when the following parameters align: Contact Type (Male Pin), Mounting Type (Through Hole), and Contact Finish (Gold mating surface). Minor variations in contact length, insulation height, and insulation material do not affect connector interface compatibility.

Group 3: Alternative Configuration The 76382-314LF differs in position count (14 vs. 6) and mounting orientation (right-angle vs. vertical), making it unsuitable for direct substitution in applications requiring the original 6-position vertical configuration.

Parameter Comparison

Parameter	75869-331	75869-331LF	09185066324	09185067324	09195066324	1761681-1	2-1761603-1
Manufacturer	Amphenol ICC	Amphenol ICC	HARTING	HARTING	HARTING	TE Connectivity	TE Connectivity
Product Status	Obsolete	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	6	6	6	6	6	6	6
Number of Rows	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Contact Finish - Mating	Gold, GXT™	Gold, GXT™	Gold	Gold	Not specified	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze	Copper Alloy	Copper Alloy	Copper Alloy	Phosphor Bronze	Phosphor Bronze
Insulation Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	Non-compliant	Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Operating Temperature	Not specified	Not specified	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-65°C ~ 105°C	-65°C ~ 105°C
Current Rating (Amps)	Not specified	Not specified	Not specified	Not specified	Not specified	1A per Contact	1A per Contact
Voltage Rating	Not specified	Not specified	Not specified	Not specified	Not specified	250VAC	250VAC

Engineering Selection Recommendations

Primary Recommendation: 75869-331LF The 75869-331LF is the direct equivalent with identical electrical and mechanical specifications. This part maintains active product status and RoHS compliance, making it the preferred choice for new designs and production continuity. The only substantive difference is RoHS compliance status (compliant vs. non-compliant on the original), which aligns with current regulatory requirements.

Secondary Recommendations: HARTING SEK Series (09185066324, 09185067324, 09195066324) These HARTING connectors provide functional equivalence with identical mating pitch, position count, row configuration, and shrouding. All three variants are ROHS3 compliant with active product status. The 09185066324 and 09185067324 are identical except for packaging (Tray vs. Tray). The 09195066324 differs in packaging (Bulk) and insulation material (PCT vs. PBT). These parts are suitable for applications where manufacturer diversity is acceptable and ROHS3 compliance is required.

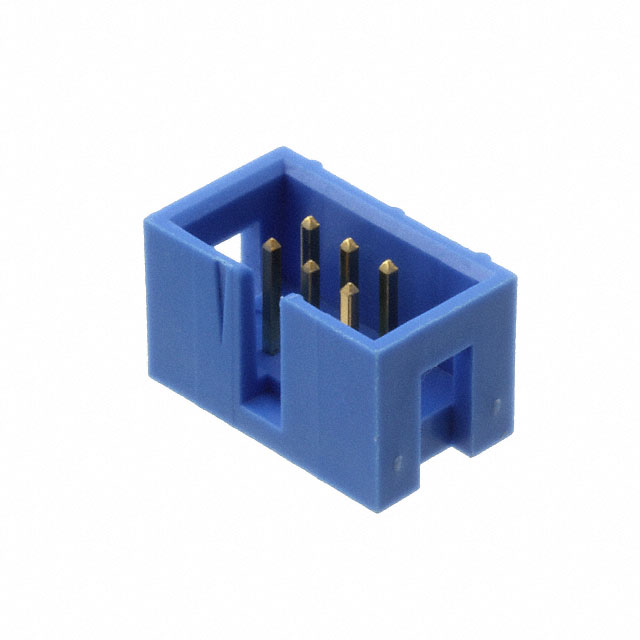

Tertiary Recommendations: TE Connectivity AMP-Latch Series (1761681-1, 2-1761603-1) The TE Connectivity parts maintain identical mating pitch, position count, row configuration, and shrouding with active product status and ROHS3 compliance. Both parts provide specified operating temperature ranges (-65°C ~ 105°C) and electrical ratings (1A per contact, 250VAC), offering enhanced environmental performance specifications. The 1761681-1 features contact length of 0.240" (6.10mm) with 0.114" (2.90mm) post length, while 2-1761603-1 has a shorter post length of 0.102" (2.60mm). Selection between these variants depends on specific PCB thickness and application requirements.

Not Recommended: 76382-314LF This part is unsuitable for direct substitution due to fundamental configuration differences: 14 positions (vs. 6), single row (vs. 2 rows), and right-angle mounting (vs. vertical). This connector serves a different application category and cannot replace the 75869-331 in existing designs.

Frequently Asked Questions (FAQ)

Q: Can I use 75869-331LF as a direct replacement for 75869-331? A: Yes. The 75869-331LF is electrically and mechanically identical to the 75869-331. The primary difference is RoHS compliance status (compliant vs. non-compliant). Both parts share identical mating pitch (0.100"), position count (6), row configuration (2 rows), shrouding (4-wall), contact type (male pin), and termination method (solder). The 75869-331LF is the recommended direct substitute due to active product status.

Q: What are the key parameters that determine substitution compatibility? A: Substitution compatibility is determined by: mating pitch (0.100"), number of positions (6), number of rows (2), row spacing (0.100"), mounting type (through hole), shrouding style (4-wall), contact type (male pin), and termination method (solder). All recommended substitutes maintain these parameters. Variations in contact length, insulation material, and contact finish thickness do not affect connector interface compatibility.

Q: Can I substitute a HARTING connector for the Amphenol ICC part? A: Yes, the HARTING SEK series connectors (09185066324, 09185067324, 09195066324) are functionally equivalent. All three maintain identical mating pitch, position count, row configuration, shrouding, and termination specifications. These parts are suitable when manufacturer diversity is acceptable and ROHS3 compliance is required. Packaging options vary (Tray or Bulk).

Q: What is the difference between 09185066324 and 09195066324? A: Both parts are HARTING SEK series connectors with identical electrical and mechanical specifications. The primary differences are packaging (Tray vs. Bulk) and insulation material (PBT with glass fill vs. PCT with glass fill). Both maintain identical mating pitch, position count, row configuration, and shrouding. Selection depends on packaging requirements and inventory management preferences.

Q: Are the TE Connectivity parts (1761681-1 and 2-1761603-1) interchangeable? A: Both TE Connectivity AMP-Latch parts are functionally equivalent with identical mating pitch, position count, row configuration, and shrouding. The primary difference is contact post length: 1761681-1 has 0.114" (2.90mm) post length, while 2-1761603-1 has 0.102" (2.60mm) post length. Selection depends on PCB thickness and specific application requirements. Both parts provide identical operating temperature range (-65°C ~ 105°C) and electrical ratings (1A per contact, 250VAC).

Q: Why is 76382-314LF listed but not recommended? A: The 76382-314LF is a different connector configuration with 14 positions in a single row with right-angle mounting. It does not maintain the 6-position, 2-row, vertical configuration of the 75869-331. This part serves a different application category and cannot replace the original connector in existing designs.

Q: What compliance certifications should I verify for my application? A: All recommended substitutes carry UL94 V-0 flammability rating. The 75869-331LF, HARTING SEK series, and TE Connectivity AMP-Latch series are all ROHS3 compliant. The original 75869-331 is RoHS non-compliant. Verify compliance requirements for your specific application before final part selection.

Q: Does packaging affect electrical or mechanical compatibility? A: No. Packaging (Tube, Tray, or Bulk) affects only inventory management and handling. Electrical and mechanical specifications remain identical regardless of packaging format. Select packaging based on production volume and supply chain requirements.
