Amphenol ICC 75869-201 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 75869-201 is a vertical rectangular connector header with 10 positions at 2.54mm pitch, designed for through-hole board-to-cable/wire applications. This part operates in the Quickie™ series and features shrouded 4-wall construction with solder termination and push-pull fastening. The 75869-201 is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. Active alternatives from both Amphenol ICC and HARTING manufacturers provide direct functional equivalents with enhanced compliance and availability.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	10
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Shrouding	Shrouded - 4 Wall
Contact Shape	Square
Insulation Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the 75869-201 is determined by strict adherence to the following electrical and mechanical parameters:

Primary Substitution Criteria:

Connector type: Header
Contact type: Male Pin
Number of positions: 10
Number of rows: 2
Pitch - mating: 0.100" (2.54mm)
Row spacing - mating: 0.100" (2.54mm)
Mounting type: Through Hole
Termination: Solder
Shrouding: Shrouded - 4 Wall
Contact shape: Square
Material flammability rating: UL94 V-0
Moisture sensitivity level: 1 (Unlimited)

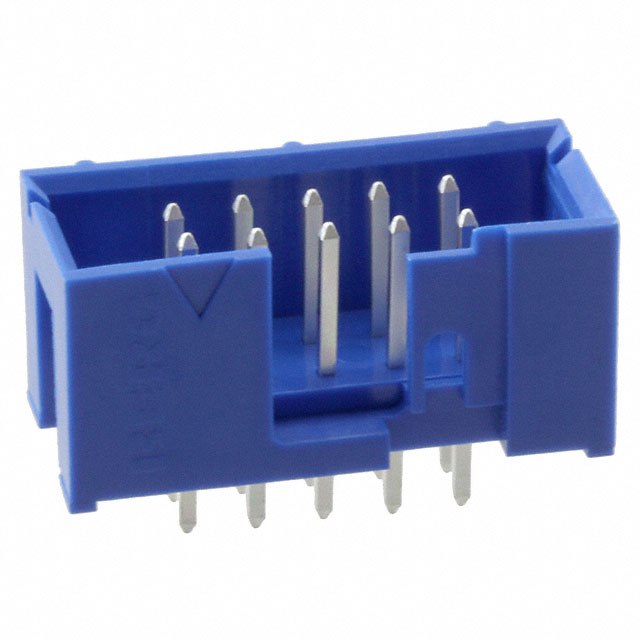

Direct Equivalent (Same Manufacturer): The 75869-201LF from Amphenol ICC (FCI) maintains identical electrical and mechanical specifications while offering active product status and RoHS compliance. This part differs only in packaging (Tube vs. original packaging) and RoHS status.

Cross-Manufacturer Alternatives (HARTING SEK Series): HARTING's SEK series headers (09185105322, 09185105324, 09185106322, 09185106324, 09185107322, 09185107324, 09195105324740, 09195106324, 09195107324) provide functional equivalence across all critical parameters. These parts maintain the same pitch, position count, row configuration, mounting method, and flammability rating. Variations exist in contact length specifications, contact finish materials, insulation material composition (PBT or PCT glass-filled), and packaging formats (Bulk or Tray), but these do not affect core substitution compatibility.

Parameter Comparison

Parameter	75869-201 (Main)	75869-201LF	09185105322	09185105324	09185106322	09185106324	09185107322	09185107324	09195105324740	09195106324	09195107324
Manufacturer	Amphenol ICC	Amphenol ICC	HARTING	HARTING	HARTING	HARTING	HARTING	HARTING	HARTING	HARTING	HARTING
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	10	10	10	10	10	10	10	10	10	10	10
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Length - Mating	0.236" (6.00mm)	0.236" (6.00mm)	0.240" (6.10mm)	0.242" (6.15mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)
Contact Length - Post	0.120" (3.05mm)	0.120" (3.05mm)	0.177" (4.50mm)	0.114" (2.90mm)	0.177" (4.50mm)	0.114" (2.90mm)	0.177" (4.50mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.114" (2.90mm)
Insulation Height	0.377" (9.57mm)	0.377" (9.57mm)	0.350" (8.89mm)	0.350" (8.89mm)	0.350" (8.89mm)	0.350" (8.89mm)	0.350" (8.89mm)	0.350" (8.89mm)	0.350" (8.89mm)	0.350" (8.89mm)	0.350" (8.89mm)
Contact Finish - Mating	Tin	Tin	Gold	Gold	Gold	Gold	Gold	Not specified	Gold	Not specified	Not specified
Contact Material	Phosphor Bronze	Phosphor Bronze	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	PBT, Glass Filled	PBT, Glass Filled	PBT, Glass Filled	PBT, Glass Filled	PBT, Glass Filled	PBT, Glass Filled	PCT, Glass Filled	PCT, Glass Filled	PCT, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	Not specified	Not specified	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
RoHS Status	RoHS non-compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
REACH Status	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected
Packaging	Not specified	Tube	Bulk	Bulk	Tray	Tray	Tray	Tray	Bulk	Tray	Tray
Inventory Availability	698 Pcs	5849 Pcs	1046 Pcs	804 Pcs	871 Pcs	2853 Pcs	632 Pcs	14390 Pcs	992 Pcs	862 Pcs	872 Pcs

Engineering Selection Recommendations

Primary Recommendation: 75869-201LF (Amphenol ICC)

The 75869-201LF is the direct equivalent from the original manufacturer. It maintains identical electrical and mechanical specifications to the 75869-201 while offering active product status and RoHS compliance. This part is the preferred choice for applications requiring minimal design validation and maximum compatibility assurance. Inventory availability of 5849 units supports production requirements.

Secondary Recommendation: 09185107324 (HARTING SEK Series)

The HARTING 09185107324 provides cross-manufacturer substitution with the highest inventory availability (14390 units). This part meets all critical substitution parameters and carries ROHS3 compliance. The SEK series maintains the required 2.54mm pitch, 10-position configuration, through-hole mounting, and UL94 V-0 flammability rating. Contact length variations and insulation material differences (PCT vs. thermoplastic) do not affect functional compatibility for standard through-hole applications.

Alternative Options: HARTING SEK Series (09185105322, 09185105324, 09185106322, 09185106324, 09185107322, 09195105324740, 09195106324, 09195107324)

All HARTING alternatives maintain core substitution compatibility. Selection among these variants depends on specific packaging requirements (Bulk or Tray) and contact post length specifications. All carry ROHS3 compliance and REACH Unaffected status. Operating temperature range of -55°C to 125°C exceeds typical through-hole connector applications.

Compliance Considerations:

All substitute parts carry UL94 V-0 flammability certification and MSL 1 (Unlimited) moisture sensitivity rating, matching the original part's environmental specifications. The 75869-201LF and all HARTING alternatives provide RoHS compliance, addressing regulatory requirements not met by the obsolete 75869-201.

Frequently Asked Questions (FAQ)

Q: Can the 75869-201LF directly replace the 75869-201 without PCB redesign?

A: Yes. The 75869-201LF maintains identical pitch (2.54mm), position count (10), row configuration (2 rows), mounting type (through-hole), and footprint dimensions. No PCB layout changes are required.

Q: What are the key differences between Amphenol ICC and HARTING substitutes?

A: The primary differences are contact material (Phosphor Bronze vs. Copper Alloy), contact finish (Tin vs. Gold), and insulation material composition (Thermoplastic vs. PBT or PCT glass-filled). All maintain the same electrical and mechanical interface specifications. HARTING parts provide specified operating temperature range (-55°C to 125°C) while the original Amphenol parts do not specify this parameter.

Q: Are HARTING SEK series parts interchangeable with each other?

A: HARTING SEK series parts are functionally interchangeable for the core 10-position, 2.54mm pitch header application. Variations in part numbers (09185105322, 09185105324, 09185106322, 09185106324, 09185107322, 09185107324, 09195105324740, 09195106324, 09195107324) reflect differences in contact post length (0.114" or 0.177"), contact finish specification, insulation material (PBT or PCT), and packaging format (Bulk or Tray). Selection should be based on specific PCB stack-up requirements and packaging logistics.

Q: Does packaging format affect electrical or mechanical compatibility?

A: No. Packaging format (Tube, Bulk, or Tray) affects only handling, storage, and supply chain logistics. Electrical and mechanical performance is identical across all packaging options for a given part number.

Q: What is the significance of the RoHS compliance difference?

A: The original 75869-201 is RoHS non-compliant, while all substitutes (75869-201LF and HARTING SEK series) are RoHS Compliant or ROHS3 Compliant. This is relevant for applications subject to RoHS regulations in the EU and other jurisdictions. For legacy systems without RoHS requirements, this difference does not affect functional performance.

Q: Can contact length variations affect board assembly?

A: Contact post length variations (0.114" vs. 0.177") are determined by PCB stack-up and solder joint requirements. Verify that the selected substitute's contact post length matches your PCB thickness and assembly process specifications. Contact mating length variations (0.236" to 0.242") are within typical tolerance ranges for standard through-hole connectors.

Q: Are all substitute parts suitable for high-temperature applications?

A: HARTING SEK series parts specify -55°C to 125°C operating temperature range. The original 75869-201 and 75869-201LF do not specify operating temperature limits. For applications requiring confirmed temperature performance, HARTING parts provide documented specifications.
