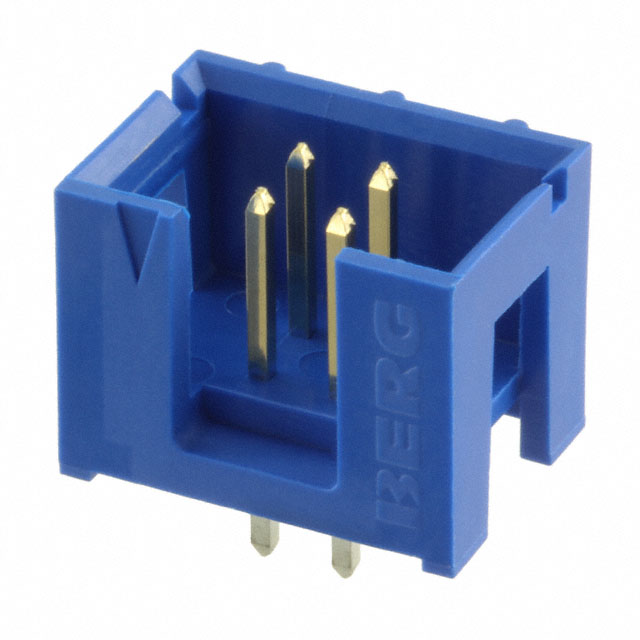

Amphenol ICC 75869-130 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 75869-130 is a shrouded vertical rectangular connector header designed for through-hole mounting in board-to-cable/wire applications. This 4-position, 2-row header operates at 0.100" (2.54mm) pitch and features gold-plated mating contacts with phosphor bronze material construction. The part is classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing design and procurement requirements.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Shrouding	Shrouded - 4 Wall
Termination	Solder
Contact Finish - Mating	Gold, GXT™
Insulation Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0

Substitute Part Grouping Explanation

Substitution eligibility for the 75869-130 is determined by the following critical parameters:

Connector Type & Contact Configuration: Header with male pins
Pitch Specification: 0.100" (2.54mm) mating pitch
Position Count & Row Configuration: 4 positions in 2-row arrangement
Mounting Method: Through-hole solder termination
Shrouding Design: Shrouded construction with 4-wall configuration
Contact Material & Finish: Phosphor bronze with gold mating surface

The substitute parts identified maintain compatibility with these core electrical and mechanical parameters, though variations in product status, compliance certifications, and secondary specifications exist.

Parameter Comparison

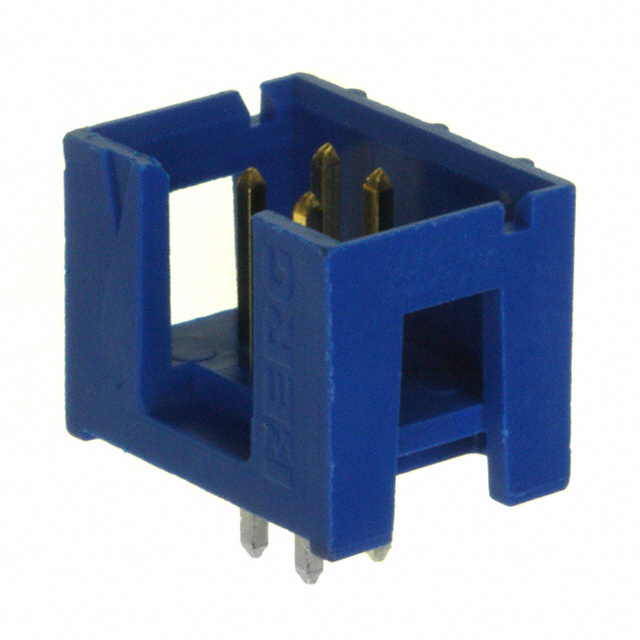

Parameter	75869-130 (Main)	75869-130LF (Substitute)	76382-303LF (Substitute)
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)
Connector Type	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	4	4	3
Number of Rows	2	2	1
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	Not Applicable
Mounting Type	Through Hole	Through Hole	Through Hole, Right Angle
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Termination	Solder	Solder	Solder
Contact Finish - Mating	Gold, GXT™	Gold, GXT™	Gold, GXT™
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
Product Status	Obsolete	Active	Active
RoHS Status	RoHS non-compliant	RoHS Compliant	RoHS Compliant

Engineering Selection Recommendations

75869-130LF is the primary direct substitute for the obsolete 75869-130. Both parts share identical electrical and mechanical specifications, including 4-position, 2-row configuration, 0.100" pitch, and shrouded through-hole design. The 75869-130LF is currently in active production status with higher inventory availability (1371 pcs vs. 740 pcs). The primary distinction is compliance status: 75869-130LF is RoHS Compliant and REACH Affected, whereas the original part is non-compliant. This substitution is appropriate for applications where RoHS compliance is required or preferred.

76382-303LF is a secondary alternative suitable only for applications where position count and orientation can be modified. This part operates at the same 0.100" pitch with identical contact materials and gold mating finish, but differs in configuration: 3 positions in a single row with right-angle mounting orientation. The 76382-303LF features polyester insulation material instead of thermoplastic and includes specified operating temperature range (-40°C ~ 125°C) and current rating (3A). This part is appropriate for space-constrained designs or applications requiring right-angle board entry.

Frequently Asked Questions (FAQ)

Q: Can 75869-130LF be used as a direct replacement for 75869-130?

A: Yes. The 75869-130LF maintains identical electrical and mechanical specifications including connector type, contact configuration, pitch, position count, row arrangement, shrouding design, and contact materials. The primary difference is product status and compliance certifications. The 75869-130LF is actively manufactured and RoHS Compliant.

Q: What are the key differences between 75869-130LF and 76382-303LF?

A: The 75869-130LF is a direct equivalent with 4 positions in 2 rows and vertical mounting. The 76382-303LF has 3 positions in 1 row with right-angle mounting. Position count and orientation differences require PCB layout modification. The 76382-303LF includes specified operating temperature and current rating parameters not provided for the other parts.

Q: Is the 76382-303LF compatible with existing 75869-130 designs?

A: No. The 76382-303LF cannot be used as a direct replacement due to differences in position count (3 vs. 4), row configuration (1 vs. 2), and mounting orientation (right-angle vs. vertical). PCB redesign is required for this substitution.

Q: What is the significance of RoHS compliance status?

A: The 75869-130 is RoHS non-compliant, while both substitute parts are RoHS Compliant. RoHS compliance is mandatory for products sold in the European Union and increasingly required by OEMs globally. The 75869-130LF is the appropriate choice for applications subject to RoHS regulations.

Q: Are there inventory considerations for these parts?

A: The 75869-130 has 740 pcs in stock. The 75869-130LF has higher availability at 1371 pcs. The 76382-303LF has the highest inventory at 2400 pcs. Inventory levels should be verified at time of procurement.

Q: What is the difference between the Quickie™ and Dubox™ series?

A: The 75869-130 and 75869-130LF belong to the Quickie™ series. The 76382-303LF belongs to the Dubox™ series. Series designation reflects design family and feature set. The Dubox™ series part features right-angle mounting and friction lock fastening, whereas Quickie™ series uses push-pull fastening with vertical orientation.
