Equivalent & Substitute Parts for JKL Components Corp. 756 Incandescent Lamp

Part Overview

The JKL Components Corp. 756 is an incandescent lamp with a 14V rating, clear lens, and miniature bayonet base configuration. This component is classified as obsolete, making identification of compatible substitute parts essential for system maintenance and component sourcing. The RT-3 1/4 round domed lens design with miniature bayonet lead style defines its mechanical and electrical interface requirements.

Substiute Parts

756

JKL Components Corp.In Stock: 1151756 Datasheet

Current PartRFQ

LE-BA9S-12W

JKL Components Corp.In Stock: 776LE-BA9S-12W Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

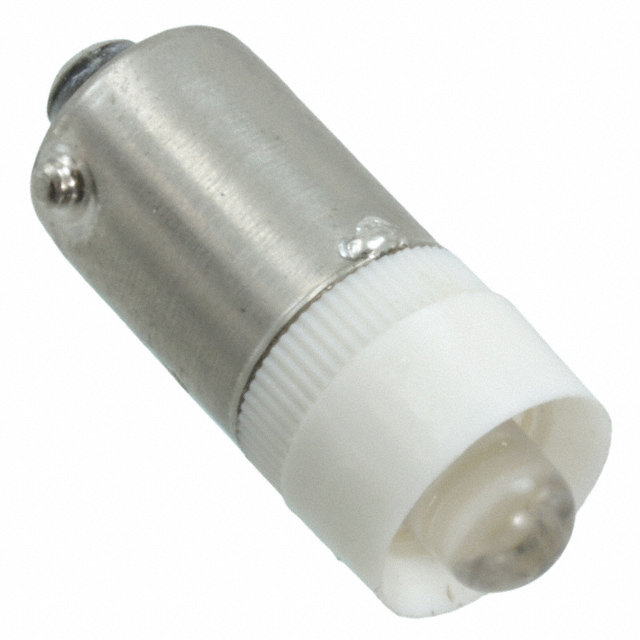

The LE-BA9S-12W LED lamp serves as a substitute for the 756 incandescent lamp based on the following alignment of critical parameters:

Base Compatibility: Both components utilize miniature bayonet base configuration, ensuring mechanical fit within existing sockets.

Lens Geometry: Both parts feature T-3 1/4 (RT-3 1/4) form factor, maintaining dimensional compatibility with lamp housings and optical requirements.

Voltage Operation: The LE-BA9S-12W operates at 12V forward voltage, providing functional compatibility within systems designed for low-voltage indicator and incandescent replacement applications.

Regulatory Compliance: Both components maintain REACH Unaffected status and EAR99 ECCN classification, ensuring equivalent compliance posture.

Moisture Sensitivity: Both components share MSL 1 (Unlimited) rating, indicating identical environmental handling requirements.

The substitution is based on mechanical interface compatibility (bayonet base, T-3 1/4 form factor) and electrical operating parameters (low-voltage DC operation) rather than optical output equivalence.

Parameter Comparison

Engineering Selection Recommendations

The LE-BA9S-12W is an active product suitable for applications requiring replacement of the obsolete 756 incandescent lamp. Selection of this substitute is supported by:

Mechanical Compatibility: Miniature bayonet base and T-3 1/4 form factor ensure direct socket compatibility.

Regulatory Alignment: Both components maintain identical REACH and ECCN classifications, eliminating compliance barriers to substitution.

Product Availability: The LE-BA9S-12W is classified as active with documented inventory, ensuring sourcing continuity for the obsolete 756.

Environmental Handling: Matching MSL 1 ratings confirm equivalent moisture sensitivity requirements throughout the supply chain.

Frequently Asked Questions (FAQ)

Q: Can the LE-BA9S-12W directly replace the 756 in existing assemblies?

A: Mechanical compatibility is confirmed through matching miniature bayonet base and T-3 1/4 form factor. Electrical compatibility requires verification that the system design accommodates 12V forward voltage operation in place of the original 14V rating.

Q: What is the primary difference between these components?

A: The 756 is an incandescent lamp operating at 14V with 0.3 MSCP output. The LE-BA9S-12W is an LED lamp operating at 12V with 7000mcd output. Both share identical mechanical interfaces and regulatory compliance status.

Q: Are packaging considerations relevant to substitution?

A: The 756 is specified with dash packaging notation, while the LE-BA9S-12W is supplied in bulk packaging. This distinction affects procurement and handling procedures but does not impact functional compatibility.

Q: Do both components require identical moisture sensitivity handling?

A: Yes. Both components are rated MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage, handling, or assembly.

Q: What compliance certifications apply to both components?

A: Both components maintain REACH Unaffected status and EAR99 ECCN classification, ensuring equivalent regulatory posture for export and supply chain management.
