Equivalent & Substitute Parts for 75160-102-02
Part Overview
The Amphenol ICC 75160-102-02 is a rectangular connector header with vertical orientation, 2 positions, and 2.54mm pitch designed for through-hole mounting and board-to-board applications. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production, maintenance, and design updates. The connector features male pins with gold-plated mating contacts, phosphor bronze material, and operates across -65°C to 130°C with a 5A current rating at 110V.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Termination | Solder |
| Shrouding | Unshrouded |
| Contact Finish - Mating | Gold, GXT™ |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -65°C ~ 130°C |
| Current Rating | 5A |
| Voltage Rating | 110V |
Substitute Part Grouping Explanation
Substitution eligibility for the 75160-102-02 is determined by strict alignment with the following critical parameters:
Primary Substitution Criteria:
- Connector type: Header
- Contact type: Male Pin
- Pitch: 0.100" (2.54mm)
- Number of positions: 2
- Number of rows: 1
- Mounting type: Through Hole
- Termination: Solder
- Shrouding: Unshrouded
- Material flammability rating: UL94 V-0
Secondary Compatibility Parameters:
- Contact finish (mating surface): Gold or equivalent
- Operating temperature range: Must encompass or match -65°C to 130°C
- Current and voltage ratings: Must meet or exceed 5A at 110V
Substitute parts are grouped into two categories: direct Amphenol ICC alternatives with identical electrical and mechanical specifications, and manufacturer-recommended alternatives from Molex and Preci-Dip that meet all primary substitution criteria while offering different contact materials, finishes, or compliance certifications.
Parameter Comparison
| Part Number | Manufacturer | Positions | Pitch (mm) | Contact Type | Contact Finish - Mating | Operating Temp (°C) | Current (A) | Voltage (V) | RoHS Status | Product Status |
|---|---|---|---|---|---|---|---|---|---|---|
| 75160-102-02 | Amphenol ICC | 2 | 2.54 | Male Pin | Gold, GXT™ | -65 ~ 130 | 5 | 110 | Non-compliant | Obsolete |
| 75160-102-02LF | Amphenol ICC | 2 | 2.54 | Male Pin | Gold, GXT™ | -65 ~ 130 | 5 | 110 | Compliant | Obsolete |
| 0050291692 | Molex | 2 | 2.54 | Male Pin | Gold | — | — | — | ROHS3 Compliant | Active |
| 0050291883 | Molex | 2 | 2.54 | Male Pin | Gold | — | — | — | ROHS3 Compliant | Active |
| 0423751922 | Molex | 2 | 2.54 | Male Pin | Tin | — | — | — | ROHS3 Compliant | Active |
| 0423752486 | Molex | 2 | 2.54 | Male Pin | Gold | — | — | — | ROHS3 Compliant | Active |
| 0423752521 | Molex | 2 | 2.54 | Male Pin | Gold | — | — | — | ROHS3 Compliant | Active |
| 350-10-102-00-013101 | Preci-Dip | 2 | 2.54 | Male Pin | Gold | -55 ~ 125 | 3 | 150 | ROHS3 Compliant | Active |
| 350-10-102-01-666101 | Preci-Dip | 2 | 2.54 | Male Pin | Gold | -55 ~ 125 | 3 | 150 | ROHS3 Compliant | Active |
| 350-80-102-00-013101 | Preci-Dip | 2 | 2.54 | Male Pin | Tin | -55 ~ 125 | 3 | 150 | ROHS3 Compliant | Active |
Engineering Selection Recommendations
Direct Amphenol ICC Replacement: The 75160-102-02LF is the primary direct substitute, offering identical electrical and mechanical specifications with the addition of RoHS compliance. Both parts share the BERGSTIK® series designation, gold GXT™ contact finish, and equivalent operating parameters. The LF variant is recommended for new designs requiring RoHS certification.
Molex KK254 Series (0050291692, 0050291883, 0423751922, 0423752486, 0423752521): These Molex connectors meet all primary substitution criteria with 2-position, 2.54mm pitch, male pin headers suitable for through-hole mounting. All variants are active products with ROHS3 compliance. Contact finish options include gold and tin. The Molex series offers superior long-term availability compared to the obsolete Amphenol ICC original. Mechanical dimensions vary slightly across part numbers, with contact length and post dimensions differing within acceptable tolerances for standard board-to-board applications.
Preci-Dip 350 Series (350-10-102-00-013101, 350-10-102-01-666101, 350-80-102-00-013101): Preci-Dip headers provide active product status with ROHS3 compliance and circular contact geometry. Operating temperature range (-55°C to 125°C) is narrower than the original part, and current rating (3A) is lower. These parts are suitable for applications not requiring the full -65°C to 130°C range or 5A current capacity. Contact finish options include gold and tin variants.
Compliance Considerations: All recommended substitutes carry current RoHS3 compliance certifications, addressing regulatory requirements absent in the original non-compliant part. Molex and Preci-Dip alternatives provide REACH compliance status, supporting international supply chain requirements.
Frequently Asked Questions (FAQ)
Q: Can I use the 75160-102-02LF as a direct replacement for the 75160-102-02?
A: Yes. The 75160-102-02LF is electrically and mechanically identical to the original part, with the addition of RoHS compliance. Both share identical pitch (2.54mm), position count (2), contact type (male pin), operating temperature range (-65°C to 130°C), and current/voltage ratings (5A at 110V). The LF designation indicates lead-free solder compatibility.
Q: What are the key differences between Molex and Preci-Dip alternatives?
A: Molex KK254 series connectors are active products with full availability and multiple contact finish options (gold or tin). Preci-Dip 350 series offers circular contact geometry versus the square contacts of the original part. Preci-Dip variants have a narrower operating temperature range (-55°C to 125°C versus -65°C to 130°C) and lower current rating (3A versus 5A). Select Molex for applications requiring the original temperature and current specifications; select Preci-Dip for standard-duty applications within its rated parameters.
Q: Are there packaging differences between substitute parts?

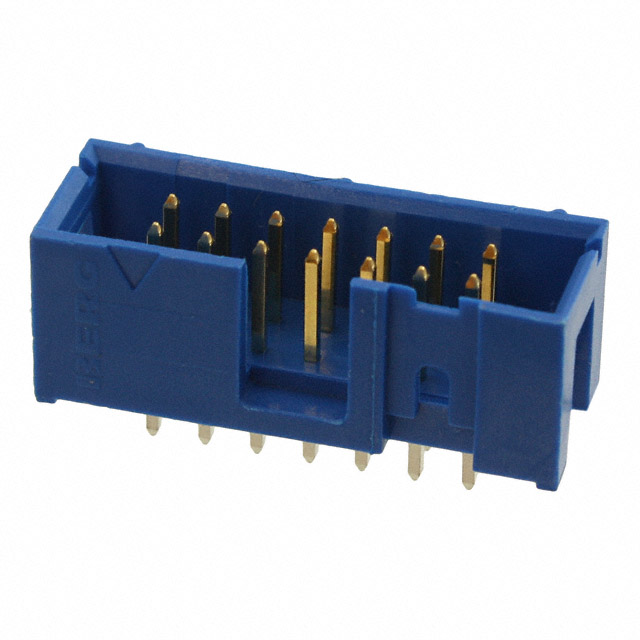

A: Yes. The original 75160-102-02 is packaged in bulk. The 75160-102-02LF is also bulk packaged. Molex alternatives are bulk packaged. Amphenol ICC 75869-102LF is tube packaged but is not a direct substitute due to 14-position configuration. Verify packaging requirements for your procurement and assembly processes.
Q: Which substitute offers the best long-term availability?
A: Molex KK254 series parts (0050291692, 0050291883, 0423751922, 0423752486, 0423752521) are designated as active products with established supply chains. The original Amphenol ICC 75160-102-02 and 75160-102-02LF are both obsolete. Preci-Dip 350 series parts are active but represent a different design approach with circular contacts. For new designs, Molex KK254 variants provide the most reliable long-term sourcing.
Q: Can I substitute a tin-plated contact finish for gold?
A: Tin-plated variants (Molex 0423751922 and Preci-Dip 350-80-102-00-013101) differ from the gold-plated original. Tin offers different electrical and corrosion characteristics. Substitution is application-dependent. If your design specifies gold contact finish for signal integrity or corrosion resistance, use gold-plated alternatives. If contact finish is not specified, tin-plated variants are acceptable.
Q: Do all substitutes support the same current and voltage ratings?
A: No. The original 75160-102-02 is rated 5A at 110V. Molex KK254 variants do not specify current or voltage ratings in the provided data. Preci-Dip 350 series is rated 3A at 150VDC. For applications requiring 5A at 110V, verify Molex specifications with the manufacturer or use the Amphenol ICC 75160-102-02LF. For lower-current applications (≤3A), Preci-Dip alternatives are suitable.
