Amphenol ICC 75160-101-36 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 75160-101-36 is a rectangular connector header, through-hole mounted, with 36 positions at 0.100" (2.54mm) pitch. This BERGSTIK® series component features male pins with gold-plated phosphor bronze contacts, unshrouded design, and solder termination. The part is classified as obsolete, making equivalent and substitute parts necessary for ongoing design support and procurement.

Key Parameters

Parameter	Value
Manufacturer Part Number	75160-101-36
Manufacturer	Amphenol ICC (FCI)
Connector Type	Header
Contact Type	Male Pin
Number of Positions	36
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Style	Board to Board
Shrouding	Unshrouded
Contact Material	Phosphor Bronze
Contact Finish - Mating	Gold, GXT™
Insulation Material	Thermoplastic
Operating Temperature	-65°C ~ 130°C
Current Rating	5A
Voltage Rating	110V
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS non-compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution for the 75160-101-36 is determined by the following critical parameters:

36-position connector with 0.100" (2.54mm) mating pitch
Single-row, board-to-board configuration
Through-hole solder termination
Male pin contact type
Unshrouded design
Push-pull fastening mechanism
UL94 V-0 flammability rating

Substitute parts must maintain these core electrical and mechanical characteristics. Variations in contact material (phosphor bronze vs. brass), contact finish (gold vs. tin), insulation material composition, and operating temperature ranges are acceptable within the scope of functional equivalence. Contact length and overall connector height may vary within manufacturing tolerances while maintaining PCB compatibility.

Parameter Comparison

Parameter	75160-101-36 (Main)	350-10-136-00-006101	350-10-136-00-013101	350-10-136-01-666101	350-80-136-00-006101	350-80-136-00-013101	350-80-136-01-666101	350-V3-136-00-006101	800-10-036-10-002000	HMTSW-136-07-G-S-230
Manufacturer	Amphenol ICC (FCI)	Preci-Dip	Preci-Dip	Preci-Dip	Preci-Dip	Preci-Dip	Preci-Dip	Preci-Dip	Mill-Max Manufacturing Corp.	Samtec Inc.
Number of Positions	36	36	36	36	36	36	36	36	36	36
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	1	1	1	1	1	1	1	1	1	1
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Press-Fit, Solder	Solder	Solder	Press-Fit, Solder	Solder	Solder	Solder
Style	Board to Board	Board to Board	Board to Board	Board to Board	Board to Board	Board to Board	Board to Board	Board to Board	Board to Board	Board to Board or Cable
Shrouding	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded
Contact Material	Phosphor Bronze	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass Alloy	Phosphor Bronze
Contact Finish - Mating	Gold, GXT™	Gold	Gold	Gold	Tin	Tin	Tin	Gold	Gold	Gold
Insulation Material	Thermoplastic	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)	Liquid Crystal Polymer (LCP)
Operating Temperature	-65°C ~ 130°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	Not specified	-55°C ~ 125°C
Current Rating	5A	3A	3A	3A	3A	3A	3A	3A	Not specified	3A
Voltage Rating	110V	150VDC	150VDC	150VDC	150VDC	150VDC	150VDC	150VDC	Not specified	Not specified
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	Not specified	UL94 V-0
RoHS Status	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

All listed substitute parts maintain the core functional requirements of the 75160-101-36: 36-position, 0.100" pitch, single-row, through-hole solder-terminated male pin headers with unshrouded design and push-pull fastening.

The Preci-Dip 350 series (350-10-136-00-006101, 350-10-136-00-013101, 350-10-136-01-666101, 350-80-136-00-006101, 350-80-136-00-013101, 350-80-136-01-666101, 350-V3-136-00-006101) and Mill-Max 800-10-036-10-002000 are ROHS3 compliant active products, providing long-term availability and regulatory compliance advantages over the obsolete original part. The Samtec HMTSW-136-07-G-S-230 offers additional flexibility with board-to-board or cable configuration capability.

Preci-Dip variants with gold-plated mating contacts (350-10-136-00-006101, 350-10-136-00-013101, 350-10-136-01-666101, 350-V3-136-00-006101) provide closer electrical performance alignment to the original phosphor bronze/gold specification. Tin-plated variants (350-80-136-00-006101, 350-80-136-00-013101, 350-80-136-01-666101) offer cost optimization while maintaining functional compatibility.

The 350-10-136-01-666101, 350-80-136-01-666101, and 350-V3-136-00-006101 support press-fit termination in addition to solder, enabling alternative assembly methods. The HMTSW-136-07-G-S-230 features phosphor bronze contacts matching the original material specification and supports both board-to-board and cable configurations.

Frequently Asked Questions (FAQ)

Q: Can I directly replace the 75160-101-36 with any of these substitute parts?

A: Yes, all listed parts are functionally equivalent for board-to-board 36-position 0.100" pitch header applications. They maintain identical pitch, position count, row configuration, mounting type, and termination method. Physical dimensions and contact lengths vary slightly but remain compatible with standard PCB layouts designed for 0.100" pitch headers.

Q: What is the difference between the Preci-Dip 350 series variants?

A: The 350 series variants differ in contact finish (gold vs. tin), contact material composition, and termination method. The "10" designation indicates solder-only termination, while "01" indicates press-fit and solder capability. The "80" and "V3" prefixes denote different base product lines with varying insulation material specifications. All maintain the same 36-position, 0.100" pitch, single-row configuration.

Q: Why does the original part show 5A current rating while substitutes show 3A?

A: Current rating differences reflect manufacturer specifications based on contact design and material composition. The 3A rating of substitute parts remains suitable for standard header applications. Design requirements should be evaluated against actual application current demands.

Q: Are there RoHS compliance considerations for substitution?

A: The original 75160-101-36 is RoHS non-compliant. All substitute parts listed are ROHS3 compliant, meeting current regulatory requirements for new designs and procurement in regulated markets.

Q: What is the difference between gold and tin contact finishes?

A: Gold-plated contacts (350-10-136-00-006101, 350-10-136-00-013101, 350-10-136-01-666101, 350-V3-136-00-006101, 800-10-036-10-002000, HMTSW-136-07-G-S-230) provide superior corrosion resistance and lower contact resistance. Tin-plated contacts (350-80-136-00-006101, 350-80-136-00-013101, 350-80-136-01-666101) offer cost reduction while maintaining functional performance in standard environmental conditions.

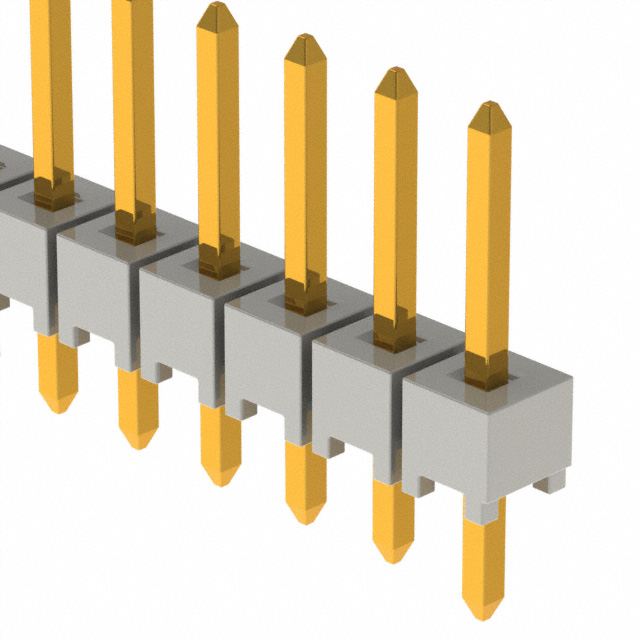

Q: Can the Samtec HMTSW-136-07-G-S-230 be used in board-to-cable applications?

A: Yes, the HMTSW-136-07-G-S-230 supports both board-to-board and board-to-cable configurations, providing additional application flexibility compared to board-to-board-only alternatives.

Q: What is the operating temperature range difference?

A: The original part operates from -65°C to 130°C. Most substitute parts operate from -55°C to 125°C, a narrower range suitable for standard industrial and commercial applications. Applications requiring the extended -65°C lower limit should be evaluated against specific environmental requirements.
