Amphenol ICC 75060-013 Pin Receptacle Connector - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 75060-013 is a pin receptacle connector from the Minisert™ series, designed to accept pin diameters ranging from 0.012" to 0.022" (0.30mm to 0.56mm). This component features a no-tail solder termination and beryllium copper contacts with gold plating. The part is currently obsolete, making identification of suitable substitutes essential for ongoing production and maintenance applications.

Substiute Parts

75060-013

Amphenol ICC (FCI)In Stock: 93775060-013 Datasheet

Current PartRFQ

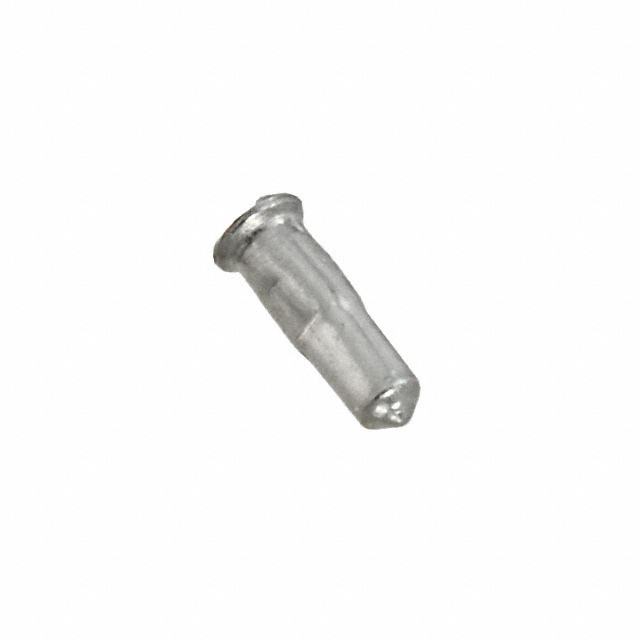

1-5645955-2

TE Connectivity AMP ConnectorsIn Stock: 285501-5645955-2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Amphenol ICC 75060-013 is determined by the following critical parameters:

Pin Acceptance Range: The substitute part must accommodate pin diameters within or overlapping the 0.012" ~ 0.022" range. The TE Connectivity 1-5645955-2 accepts 0.014" ~ 0.026" pins, which overlaps the upper portion of the original specification.

Termination Type: Both parts utilize solder termination with no tail configuration, ensuring compatibility with identical PCB assembly processes.

Contact Material and Finish: Both parts employ beryllium copper contacts with gold plating at 30.0µin thickness, maintaining electrical performance and reliability characteristics.

Mechanical Dimensions: The overall length, socket depth, and flange diameter must be compatible with the connector housing and PCB layout. The substitute part dimensions are comparable, with minor variations in mounting hole diameter and flange diameter.

Board Thickness Compatibility: The substitute part accommodates a broader board thickness range (0.031" ~ 0.093") compared to the original specification (0.062"), providing greater flexibility in application.

Compliance and Status: The substitute part is active and ROHS3 compliant, addressing the obsolescence and compliance limitations of the original part.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 1-5645955-2 serves as the manufacturer-recommended substitute for the obsolete Amphenol ICC 75060-013. Selection of this substitute is justified by the following factors:

Product Status: The 75060-013 is obsolete, creating supply chain risk. The 1-5645955-2 is active with substantial inventory availability (28,530 pcs), ensuring long-term procurement viability.

Compliance: The substitute part is ROHS3 compliant, addressing regulatory requirements that may apply to new designs or production runs. The original part is RoHS non-compliant.

Electrical Compatibility: Both parts utilize identical contact materials (beryllium copper) and gold plating specifications (30.0µin), ensuring equivalent electrical performance and reliability.

Mechanical Compatibility: The substitute part dimensions are comparable to the original, with the mounting hole diameter and flange diameter within acceptable tolerances for standard connector housings. The broader board thickness range of the substitute provides additional design flexibility.

Operating Temperature: The substitute part specifies an operating temperature range of -65°C ~ 126°C, providing defined thermal performance parameters absent from the original specification.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 1-5645955-2 directly replace the Amphenol ICC 75060-013 in existing designs?

A: Direct replacement is possible when the pin diameter range of the mating connector falls within 0.014" ~ 0.026". If the original design uses pins smaller than 0.014" diameter, compatibility must be verified against the substitute's minimum pin acceptance specification.

Q: What is the significance of the pin diameter range difference between the two parts?

A: The original part accepts 0.012" ~ 0.022" pins, while the substitute accepts 0.014" ~ 0.026" pins. The substitute's range overlaps the upper portion of the original specification. Connectors with pins below 0.014" diameter may not achieve proper contact with the substitute receptacle.

Q: How do the flange diameter differences affect mechanical compatibility?

A: The original part has a 0.050" flange diameter, while the substitute has a 0.075" flange diameter. This larger flange on the substitute may affect fit within existing connector housings. Mechanical verification against the specific housing design is required.

Q: Does the broader board thickness range of the substitute part provide any advantage?

A: Yes. The substitute accommodates board thicknesses from 0.031" to 0.093", compared to the original's fixed 0.062" specification. This flexibility allows the substitute to be used in applications with varying PCB thicknesses without redesign.

Q: What is the impact of the RoHS compliance difference?

A: The original part is RoHS non-compliant, while the substitute is ROHS3 compliant. For new designs or production runs subject to RoHS regulations, the substitute is the appropriate choice. Existing legacy systems using the original part may continue operation without regulatory impact.

Q: Are there any thermal performance considerations when substituting these parts?

A: The substitute part specifies an operating temperature range of -65°C ~ 126°C. The original part does not provide an operating temperature specification. Applications requiring thermal performance verification should reference the substitute's specified range.

Q: How should socket depth differences be evaluated?

A: The original part has a fixed socket depth of 0.110", while the substitute ranges from 0.100" to 0.170". The substitute's minimum depth (0.100") is slightly less than the original, which may affect mating connector engagement. The maximum depth (0.170") provides additional contact retention. Verification against the specific mating connector design is necessary.
